Without Driver Information Center (DIC)

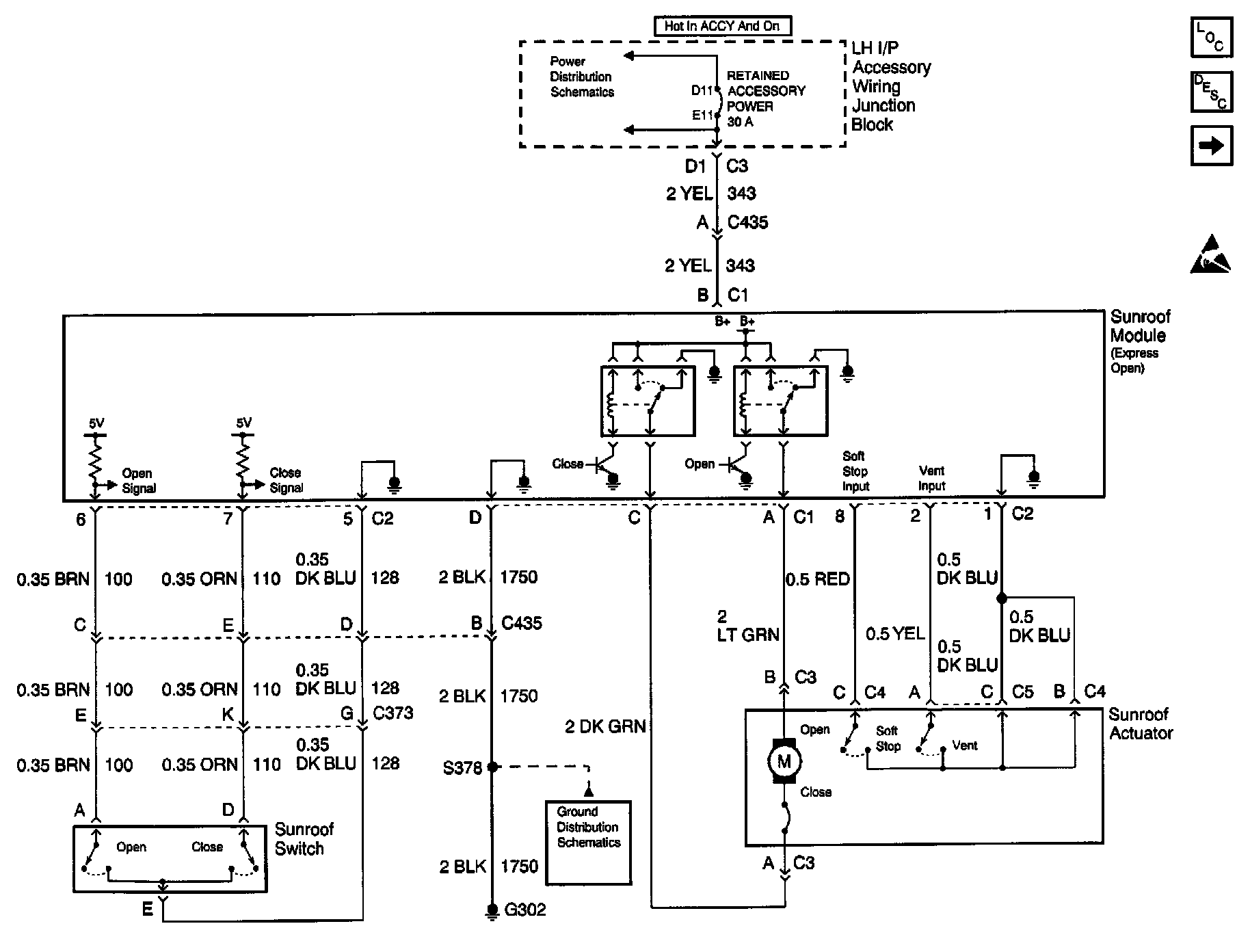

Power Sunroof Schematics: Without Driver Information Center (DIC):
