With Driver Information Center (DIC)

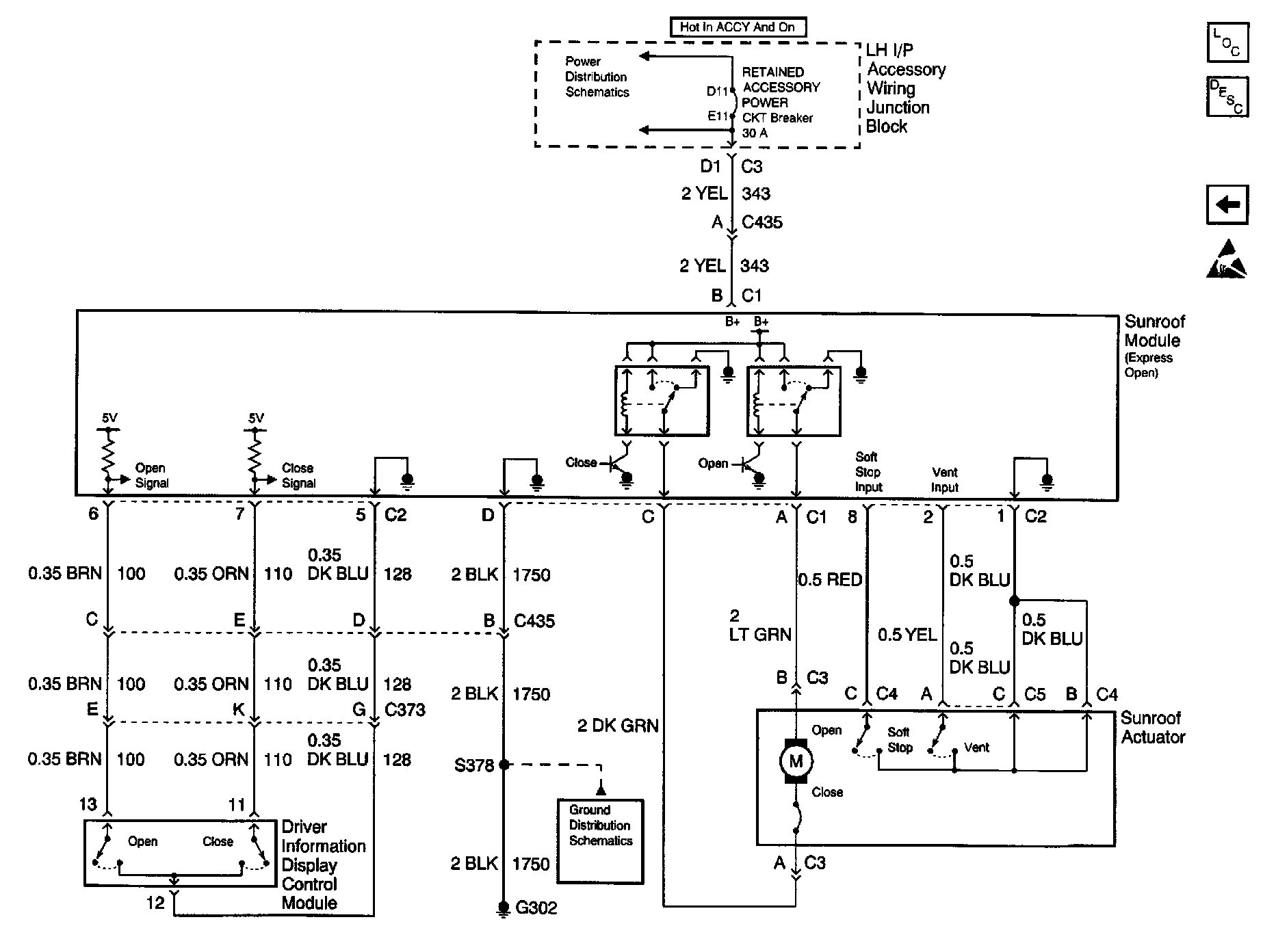

Power Sunroof Schematics: With Driver Information Center (DIC):
