Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Rear Compartment Lid Release Inoperative

Rear Compartment Lid Release Inoperative

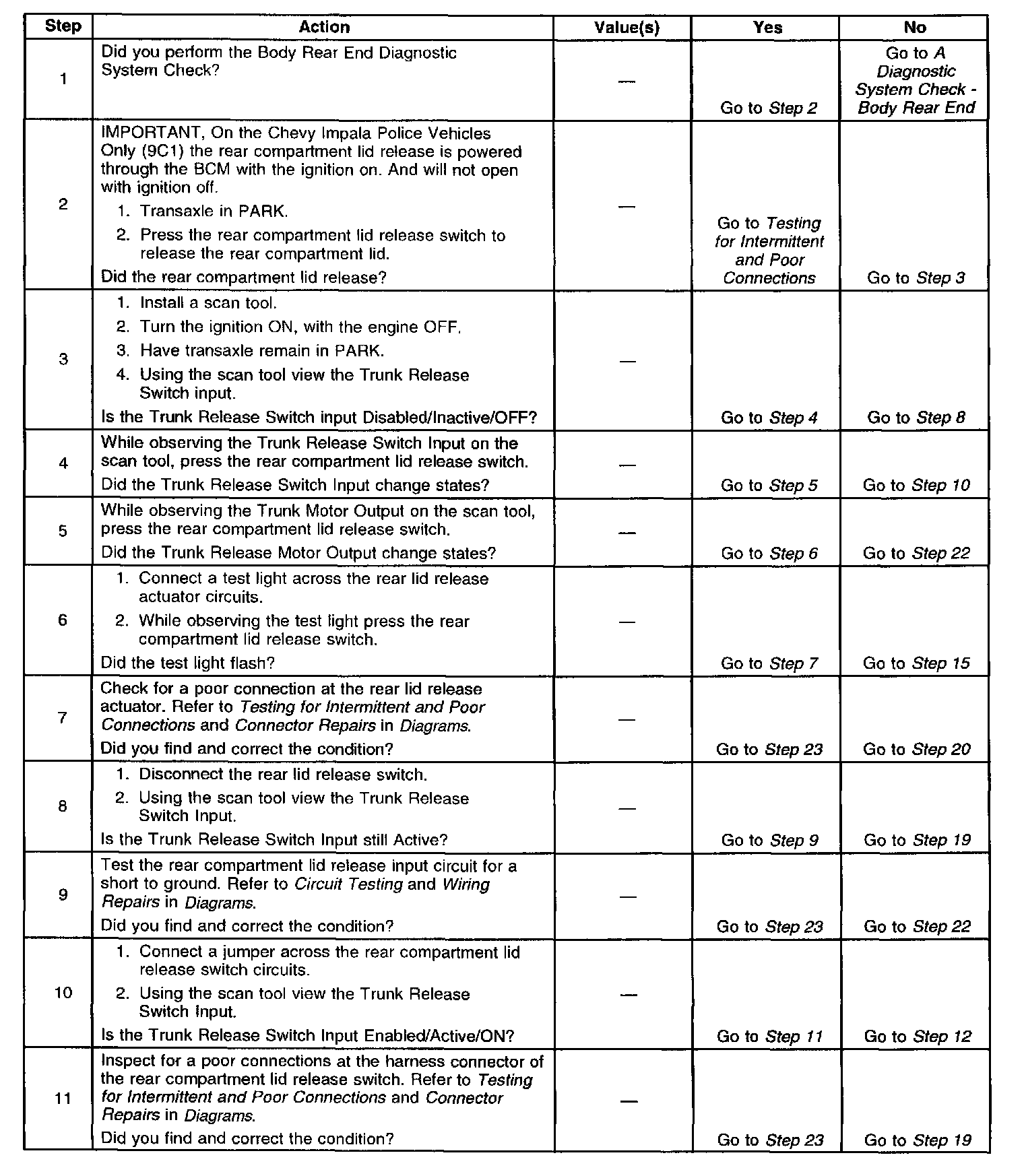

Diagnostic Chart (Part 1 Of 2):

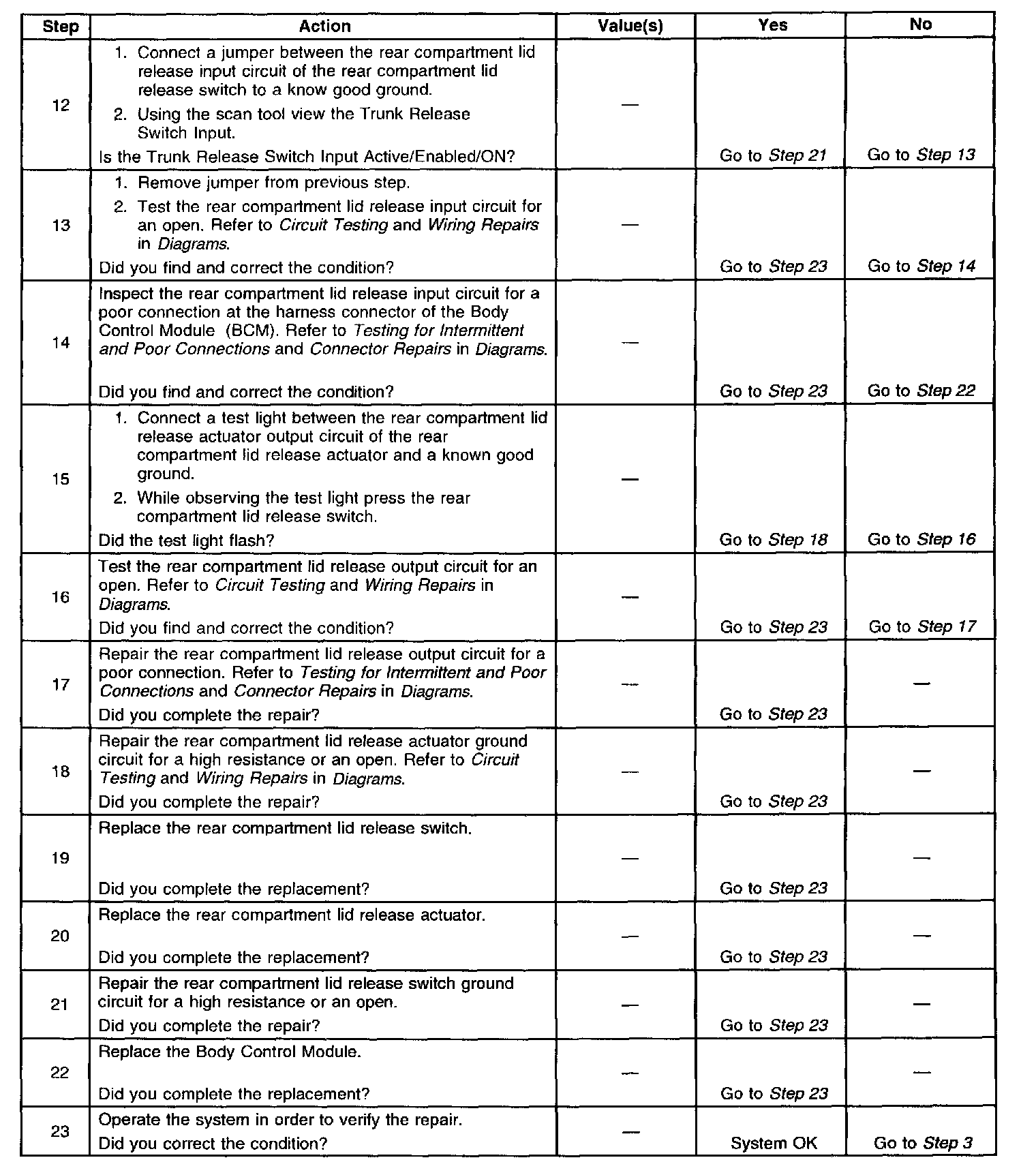

Diagnostic Chart (Part 2 Of 2):
