HDLP SW, Ignition Key Alarm SW, Surveillance SW & Park Brake SW
HDLP SW, Ignition Key Alarm SW, Surveillance SW & Park Brake SW

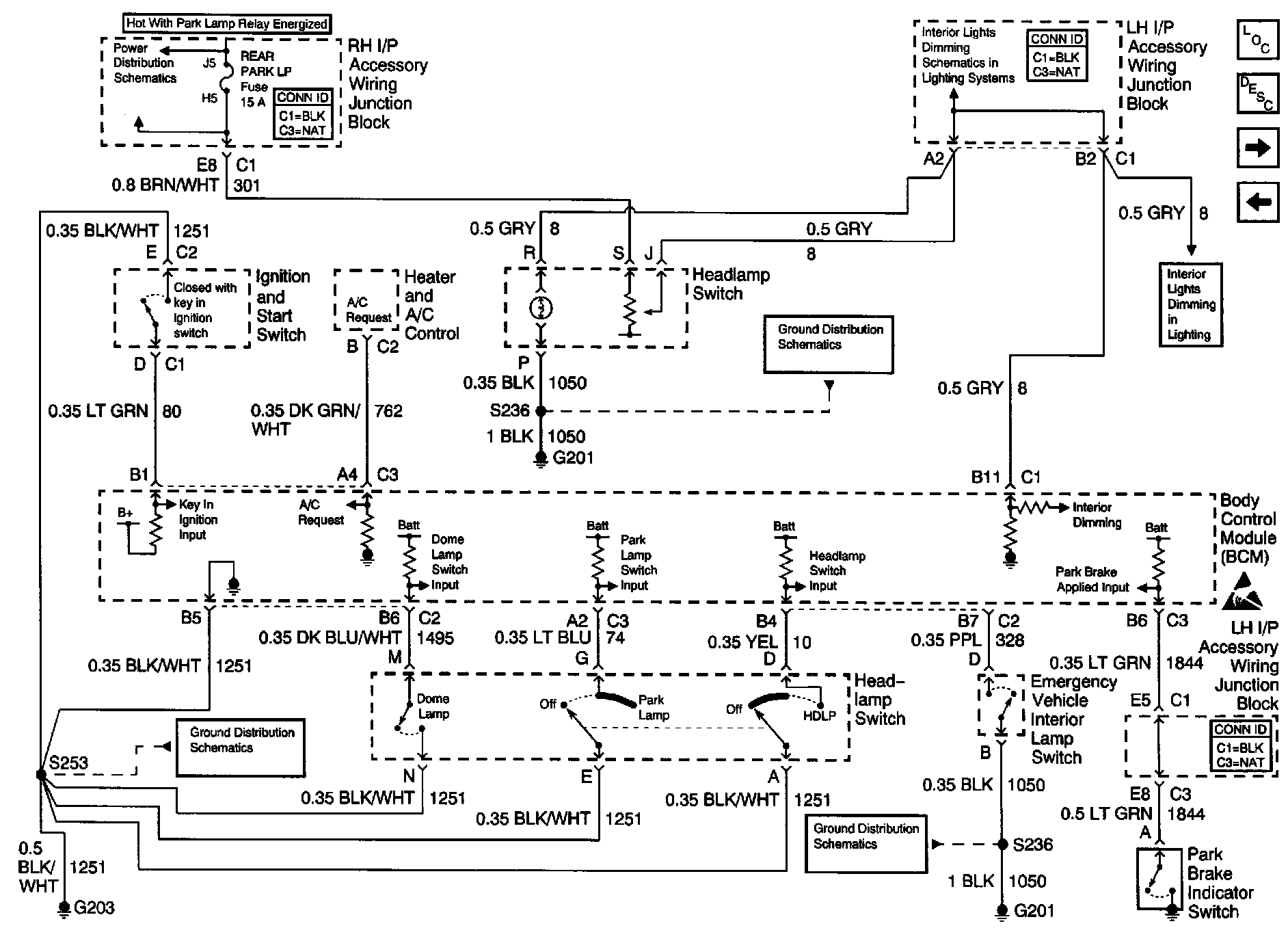

Body Control Module Schematics: Headlamp Switch, Ignition Key Alarm Switch, Surveillance Switch And Park Brake Switch:
