Home >> Chevrolet >> 2000 >> Impala V6-3.8L VIN K >> Repair and Diagnosis >> Accessories and Optional Equipment >> Accessory Delay Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

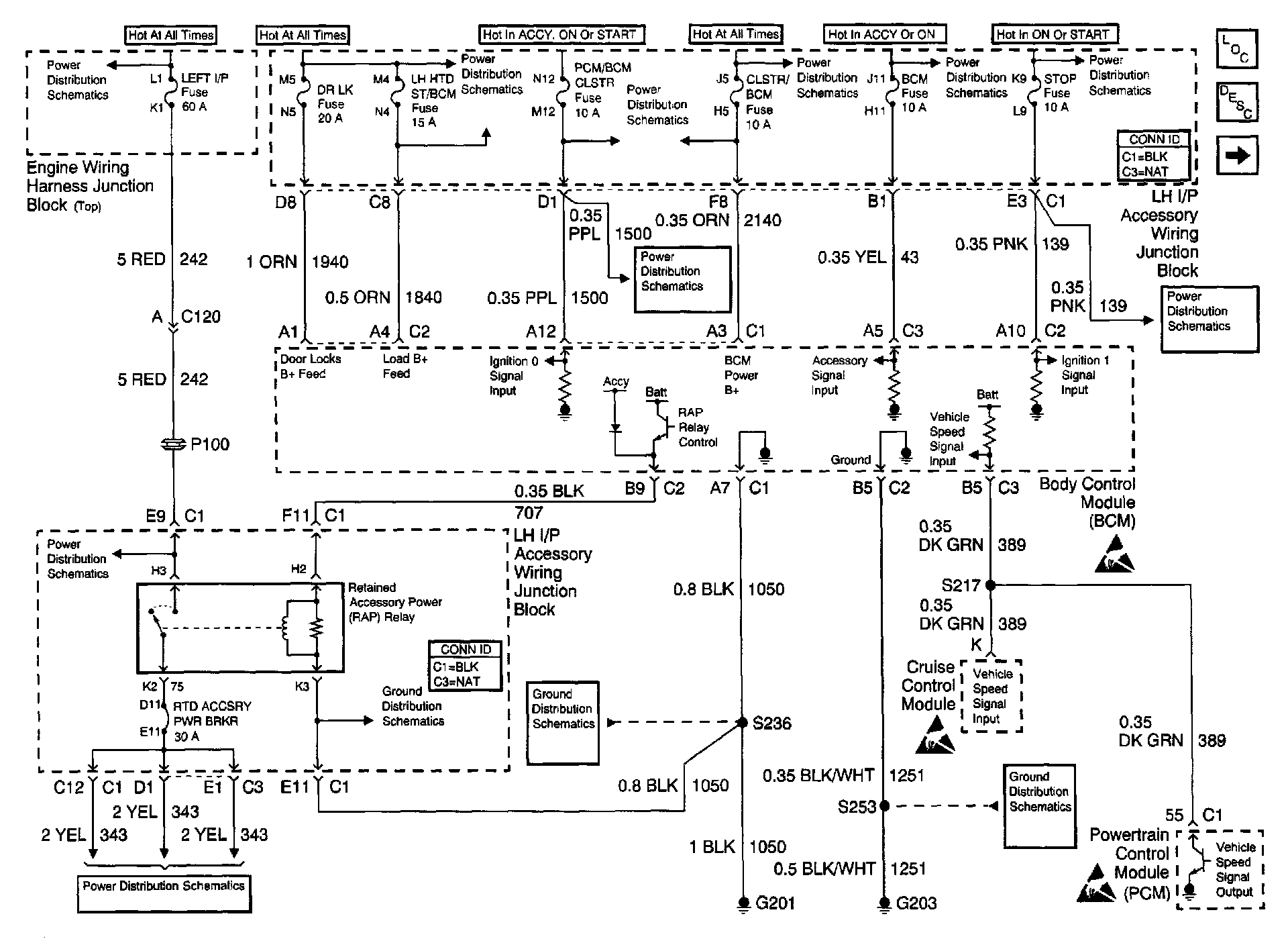

Retained Accessory Power (RAP) Schematics: Power And Grounds:

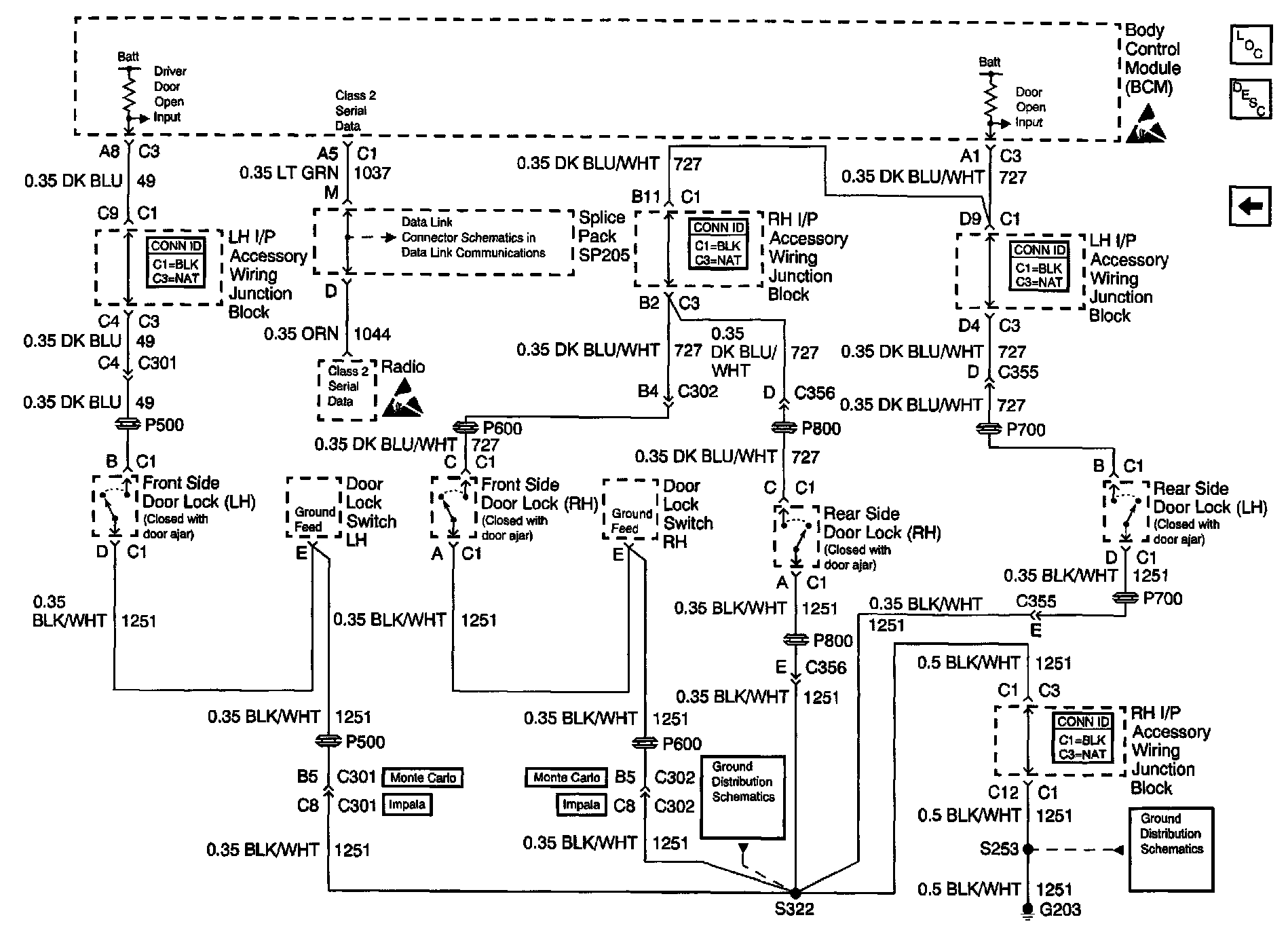

Retained Accessory Power (RAP) Schematics: Door Inputs:
