2.2L & 3.0L

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

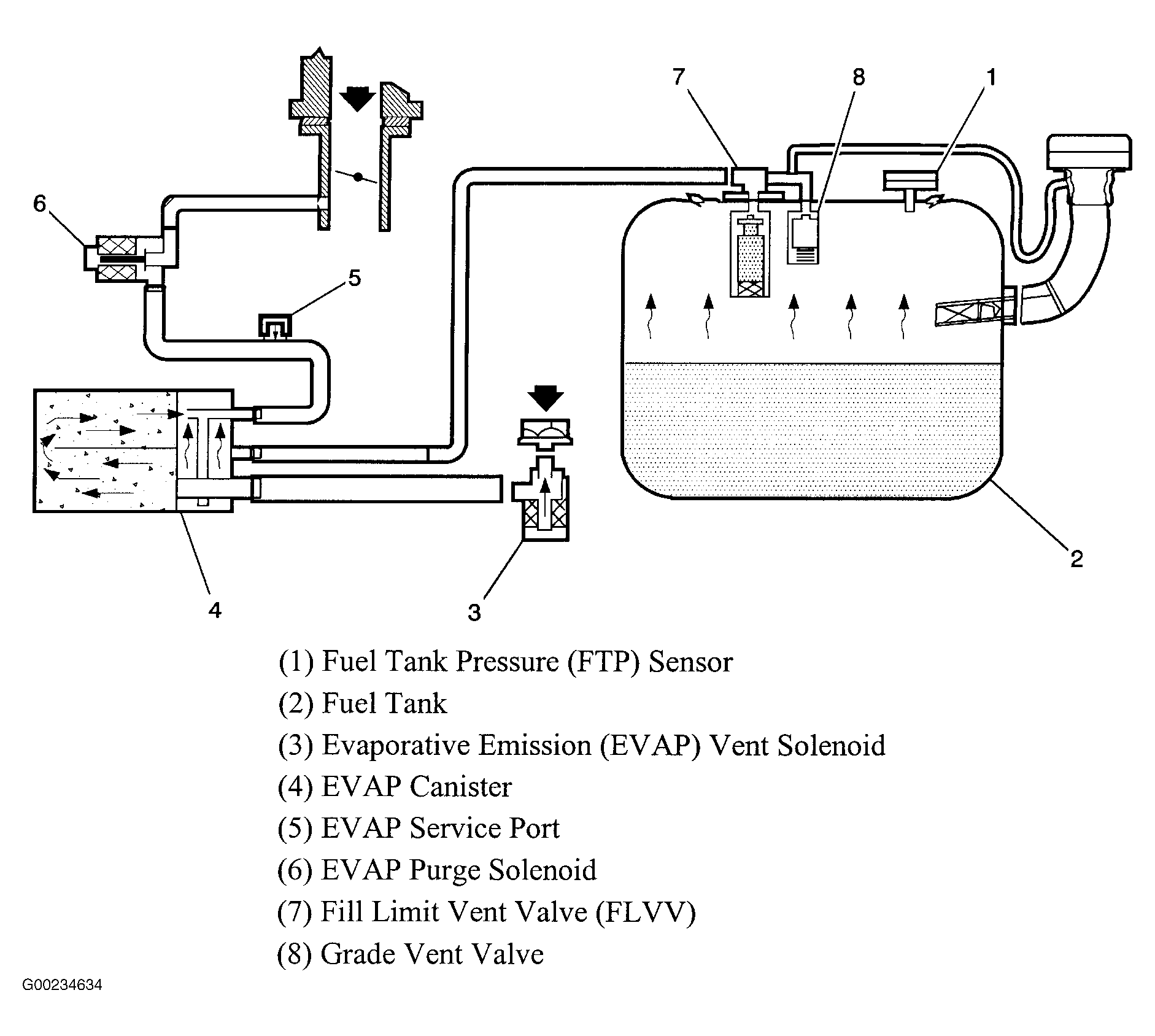

Fig 1: EVAP Hose Routing
G00234634Courtesy of GENERAL MOTORS CORP.
