Removal & Installation

WARNING: This page is about a different car, the 2003 Saturn Vue and 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove timing belt and gears. See TIMING BELT & GEARS . Remove bolts and timing belt tensioner bracket.
Remove the rear timing belt cover bolts. Remove the rear timing belt threaded pin. Remove rear timing belt cover. See Fig 1.

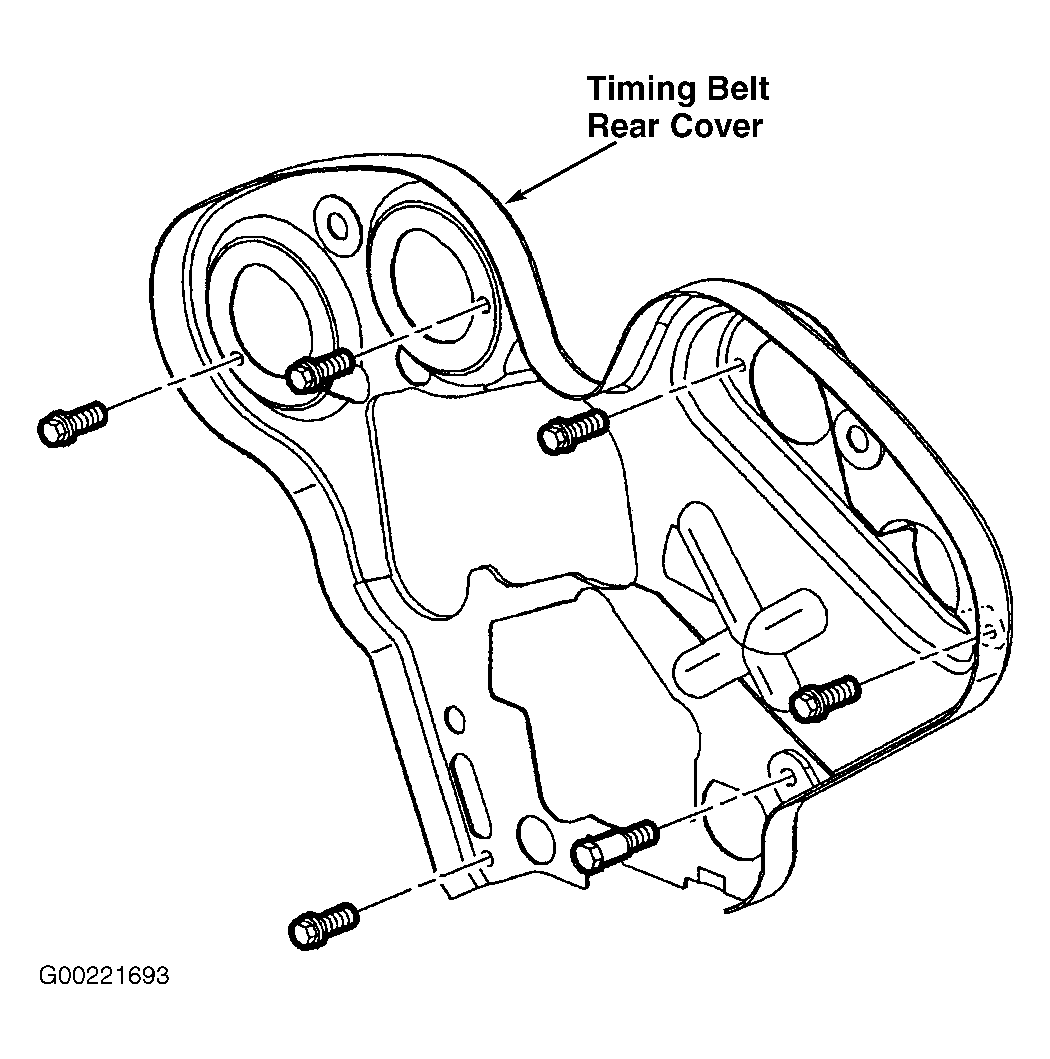

Fig 1: Removing & Installing Timing Belt Rear Cover

Courtesy of GENERAL MOTORS CORP.
