Removal & Installation
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

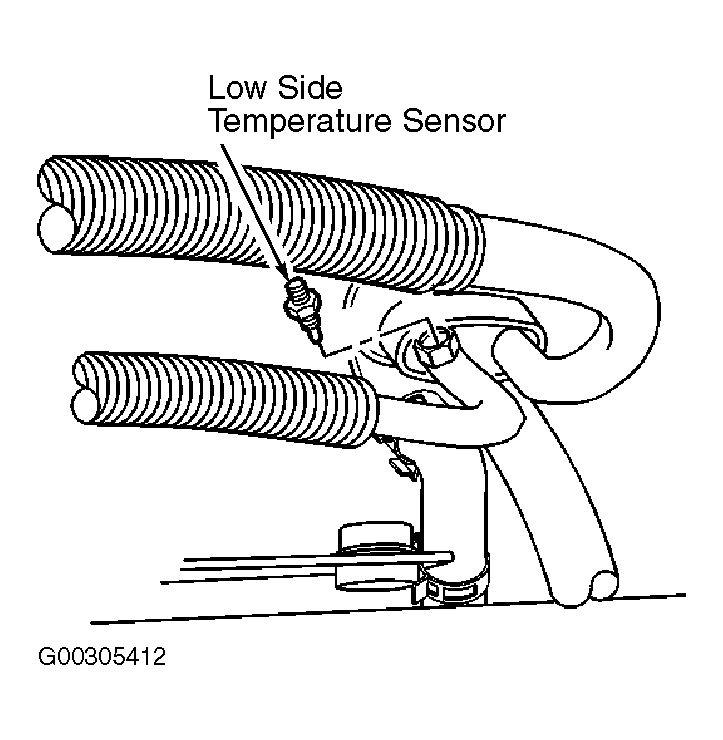

Discharge A/C system, using approved refrigerant recovery/recycling equipment. Disconnect A/C low side temperature sensor harness connector. Unscrew A/C low side temperature sensor from refrigerant line and remove sensor. See Fig 1. To install, reverse removal procedure. Lubricate "O" ring with refrigerant oil. Leak test the fittings of the component.
