Analog Instrument Panels: Description
WARNING:
Deactivate air bag system before performing any service operation. See appropriate AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

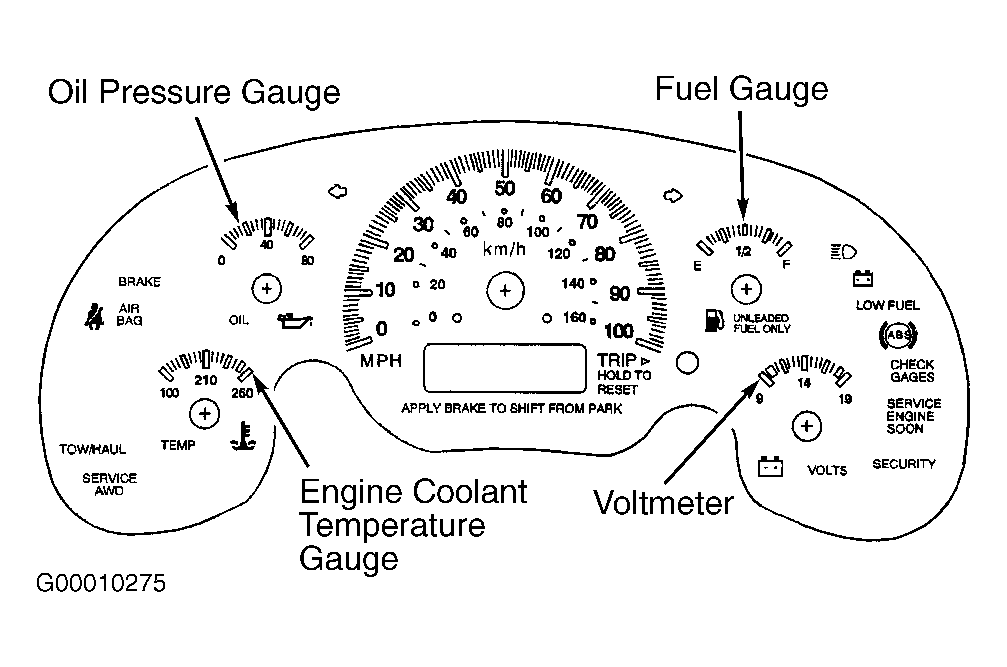

Instrument Panel Cluster (IPC) uses analog speedometer and gauges. See Fig 1 . Indicator lights, plugged into back of cluster are serviceable, but no other components on cluster are serviceable. If any component on cluster is faulty, replace entire instrument panel cluster.
Driver information system consists of compass/temperature display module, ambient air temperature sensor and associated wiring. System displays outside air temperature, compass direction and trip information in the overhead console.
