Caliper & Anchor Plate Wear Adjustments (Disc Brakes)
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 1998 Pontiac Trans Sport, 1998 Oldsmobile Silhouette, 1998 Oldsmobile Bravada, 1998 GMC Yukon, and 1998 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.
Bendix calipers have oversize replacement keys available to compensate for wear at the caliper to anchor plate to contact points. The keys are identified by marks. If wear is excessive, a rattle sound can be heard from the front brake area. Use the following procedure to measure and correct this condition.

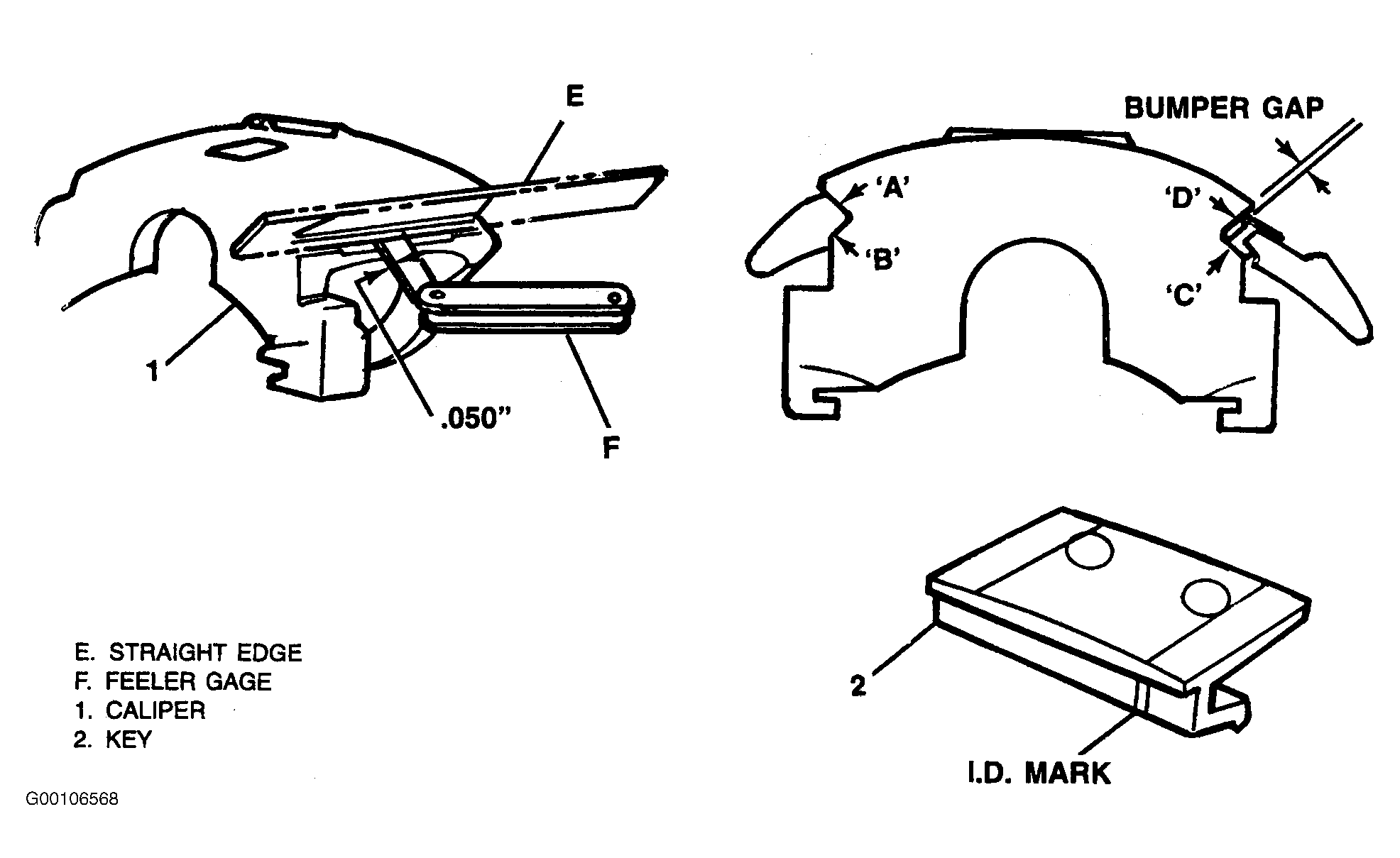

- Remove caliper. See Fig 1. Clean surfaces with a wire brush. Smooth any deep nicks with a file.
- Measure caliper contact surface for wear. Measure caliper to anchor plate wear. Install caliper.
