Linings(Rear Disc Brakes): Removal

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 1998 Pontiac Trans Sport, 1998 Oldsmobile Silhouette, 1998 Oldsmobile Bravada, 1998 GMC Yukon, and 1998 GMC Suburban. However, it is still accessible from the selected car via links, so may be relevant.

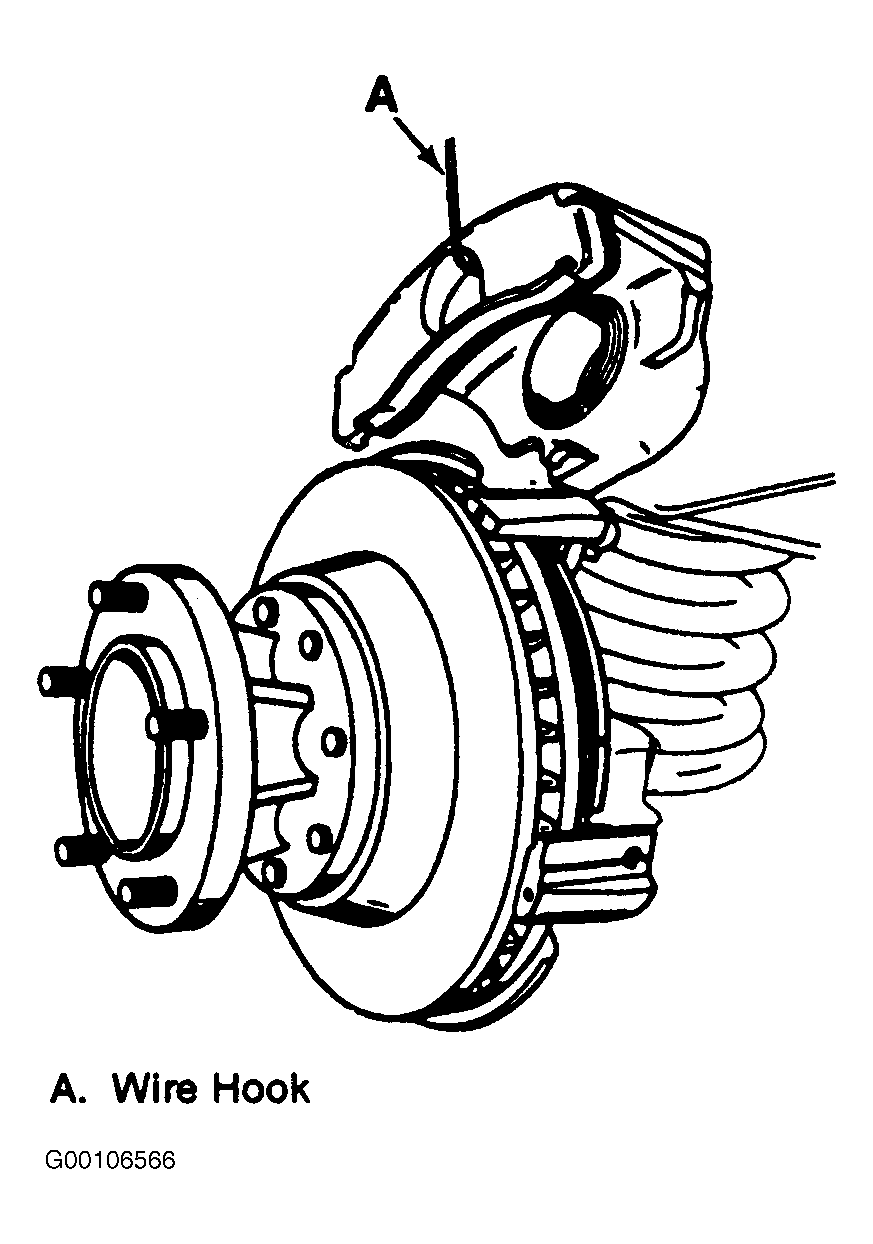

  1. Remove the caliper. Suspend the caliper. See Figure.
    NOTE: Do not allow calipers to hang from the flexible hoses. Doing so can damage the hoses.
  2. Remove inboard lining, anti-rattle spring and outboard lining.
