Lower Control Arm Bushings: Installation

To install, reverse removal procedure. Press in bushings until properly seated. Install lower control arm. See LOWER CONTROL ARM .

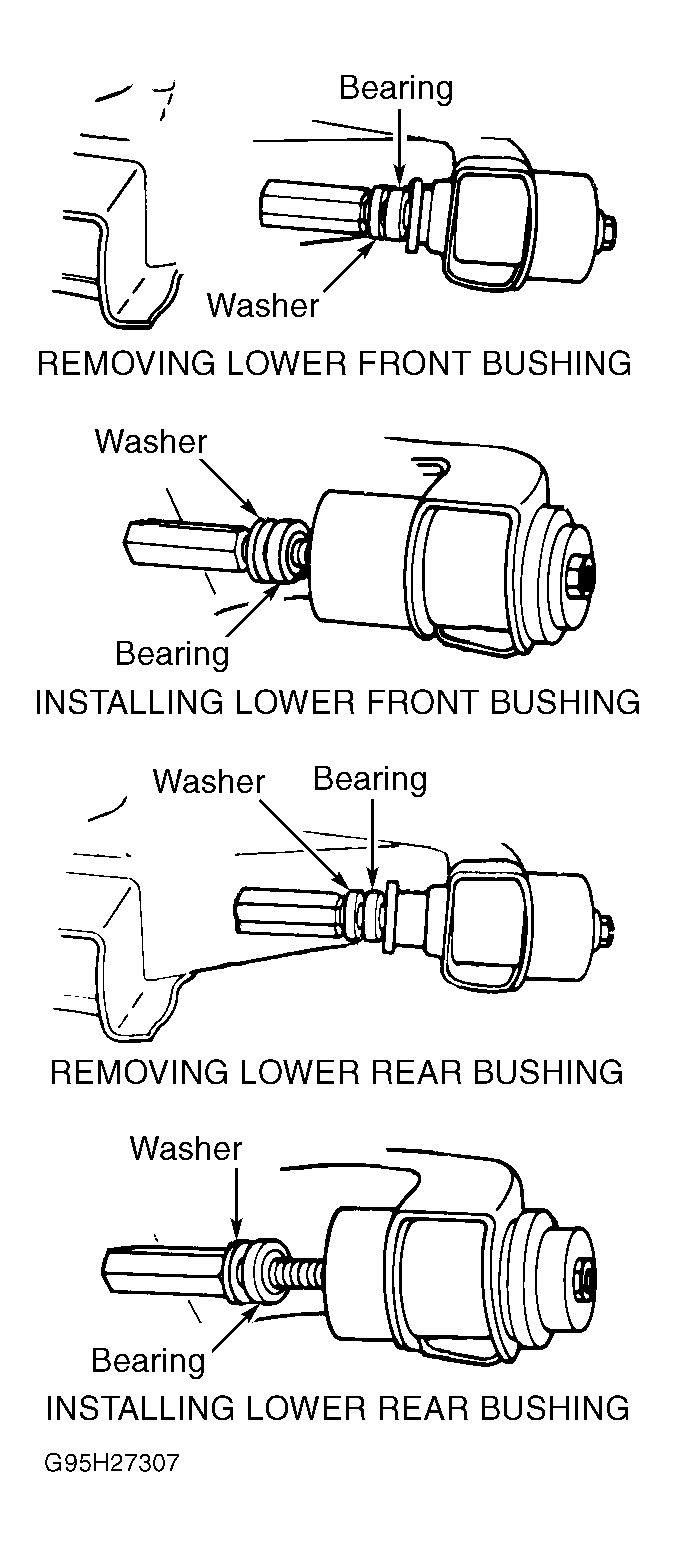

Fig 1: Replacing Lower Control Arm Bushings

Courtesy of GENERAL MOTORS CORP.
