Transmission Temperature Sensor/Switch: Service and Repair

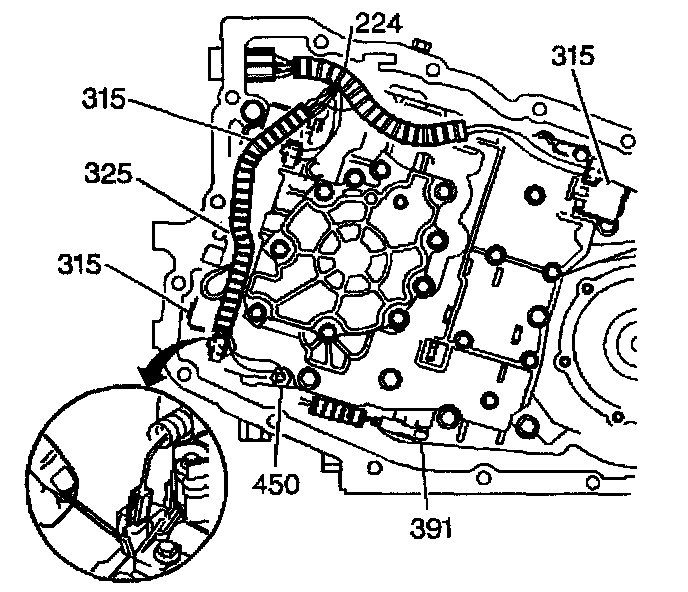

REMOVAL PROCEDURE





1. Remove the case side cover.
2. Disconnect the wiring harness assembly from the fluid temperature sensor (391).
3. Remove the fluid temperature sensor (391).

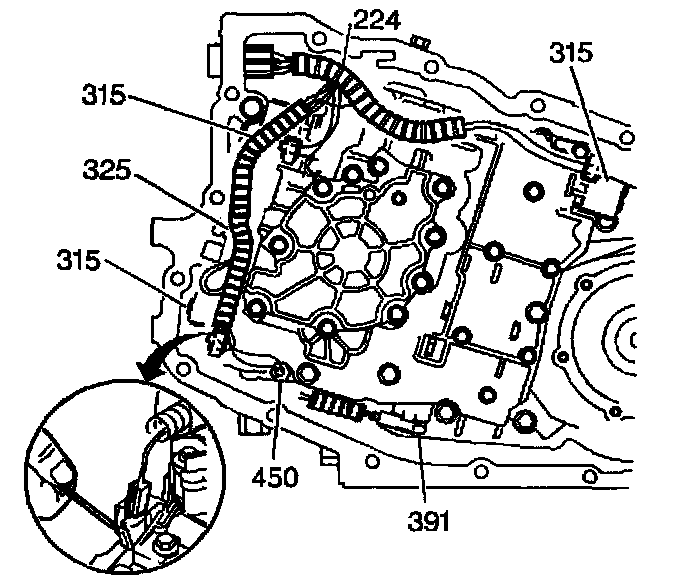

INSTALLATION PROCEDURE





1. Install the fluid temperature sensor (391).
2. Connect the wiring harness assembly to the fluid temperature sensor (391).
3/ Install the case side cover.
