Solenoids and Wiring Harness Replacement

REMOVAL PROCEDURE





1. Remove the case side cover.

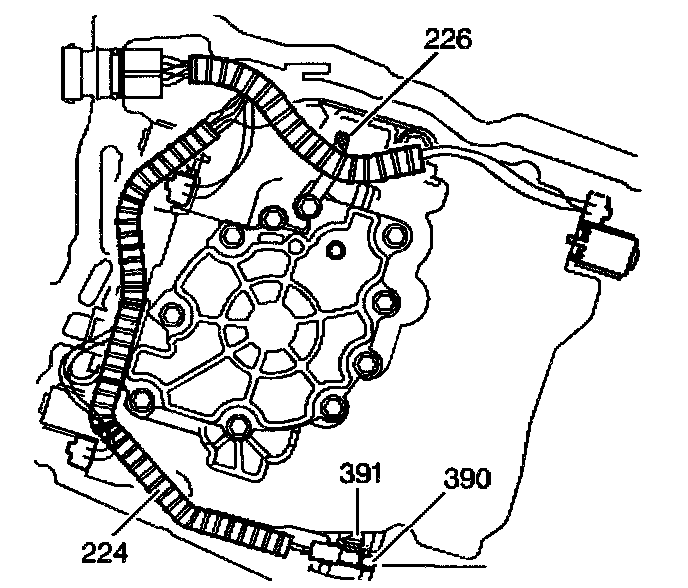

2. Use a small flat-bladed tool in order to remove the wiring harness (224) from the case electrical connector (35).





3. Use a small flat-bladed tool in order to remove the wiring harness from the solenoid valve(s) and/or the sensor.

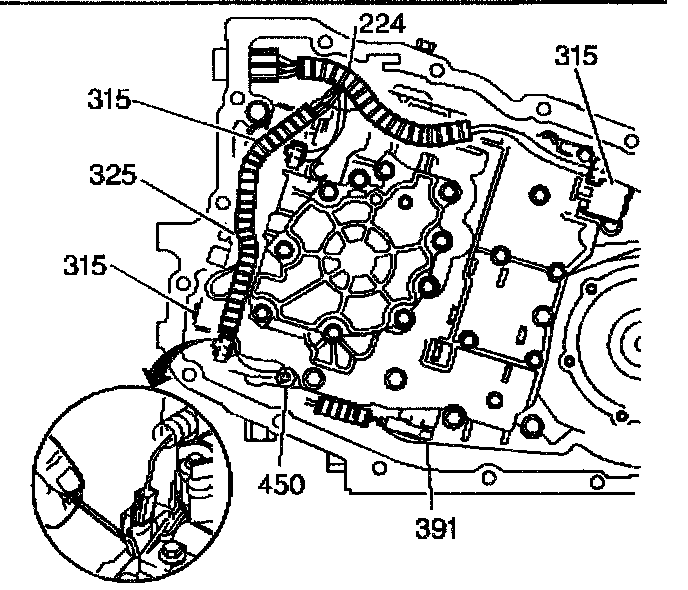

4. Remove the oil pump in order to access the Torque Converter Clutch (TCC) Pulse Width Modulated (PWM) solenoid (325).





5. Remove the clips retaining the solenoid(s).
6. Remove the solenoid(s).





7. Remove the 2-3 shift solenoid (315).





8. Inspect the wiring harness (224) for the following:
^ Cut or pinched wires
^ Cut wire insulation
^ Bent or broken electrical connectors

INSTALLATION PROCEDURE





1. Install the 2-3 shift solenoid (315).





2. Install the solenoid(s).
3. Install the retaining clips.
4. Install the oil pump, if removed.





5. Install the wiring harness to the electrical connector in the case, the solenoid valve(s) and/or the sensor.
6. Install the case side cover.
