Steering/Suspension Shock Absorber

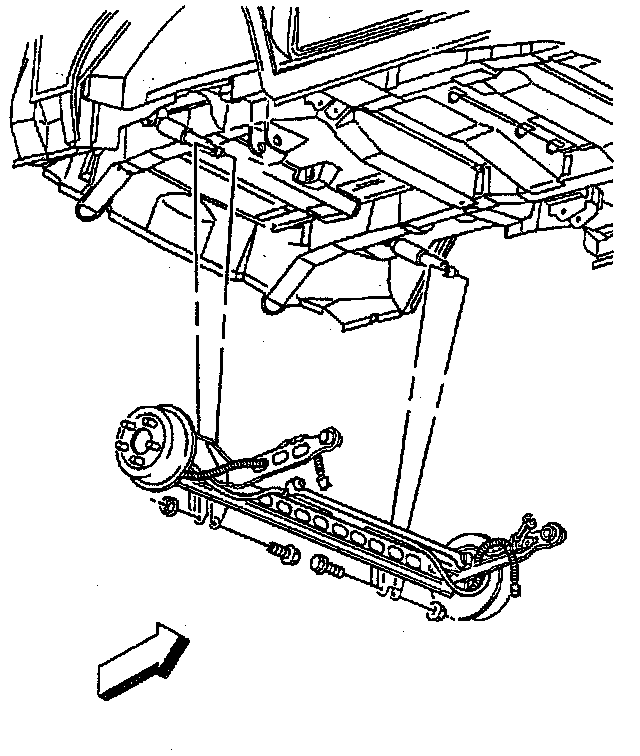

REMOVAL PROCEDURE

Important: Support the rear axle when disconnecting the shock absorbers.

1. Raise and suitably support the vehicle.
2. Remove the tires and the wheels.
3. On models equipped with ALC, disconnect the air hose from the shock absorber.





4. Remove the upper mounting bolts and the nuts from the shock absorber.





5. Remove the lower mounting bolts and the nuts from the shock absorber.

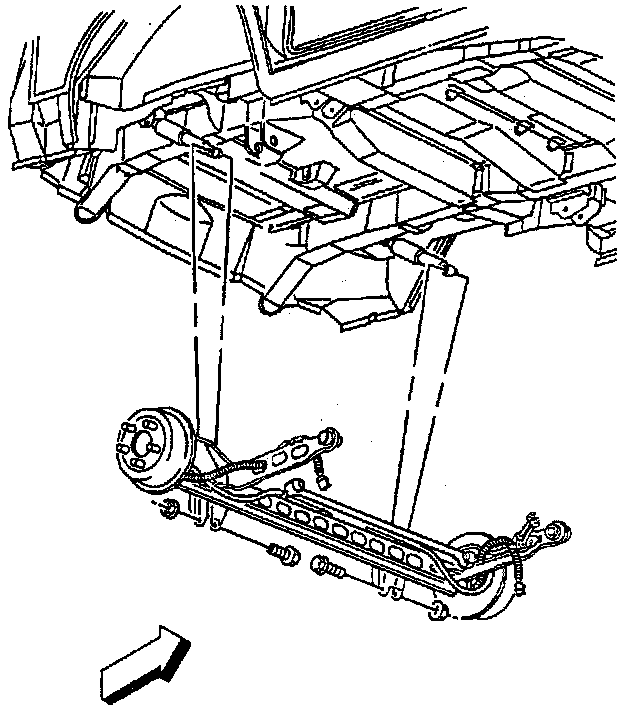

INSTALLATION PROCEDURE

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.





1. Install the shock absorber upper mounting bolts.

Tighten the bolts/screws to 85 Nm (63 ft. lbs.).





2. Install the shock absorber lower mounting bolts and nuts.

Tighten the nuts to 85 Nm (63 ft. lbs.).

3. On models equipped with ALC, connect the air hose to the shock absorber.
4. Install the tires and the wheels.
5. Lower the vehicle.
