Starter Motor

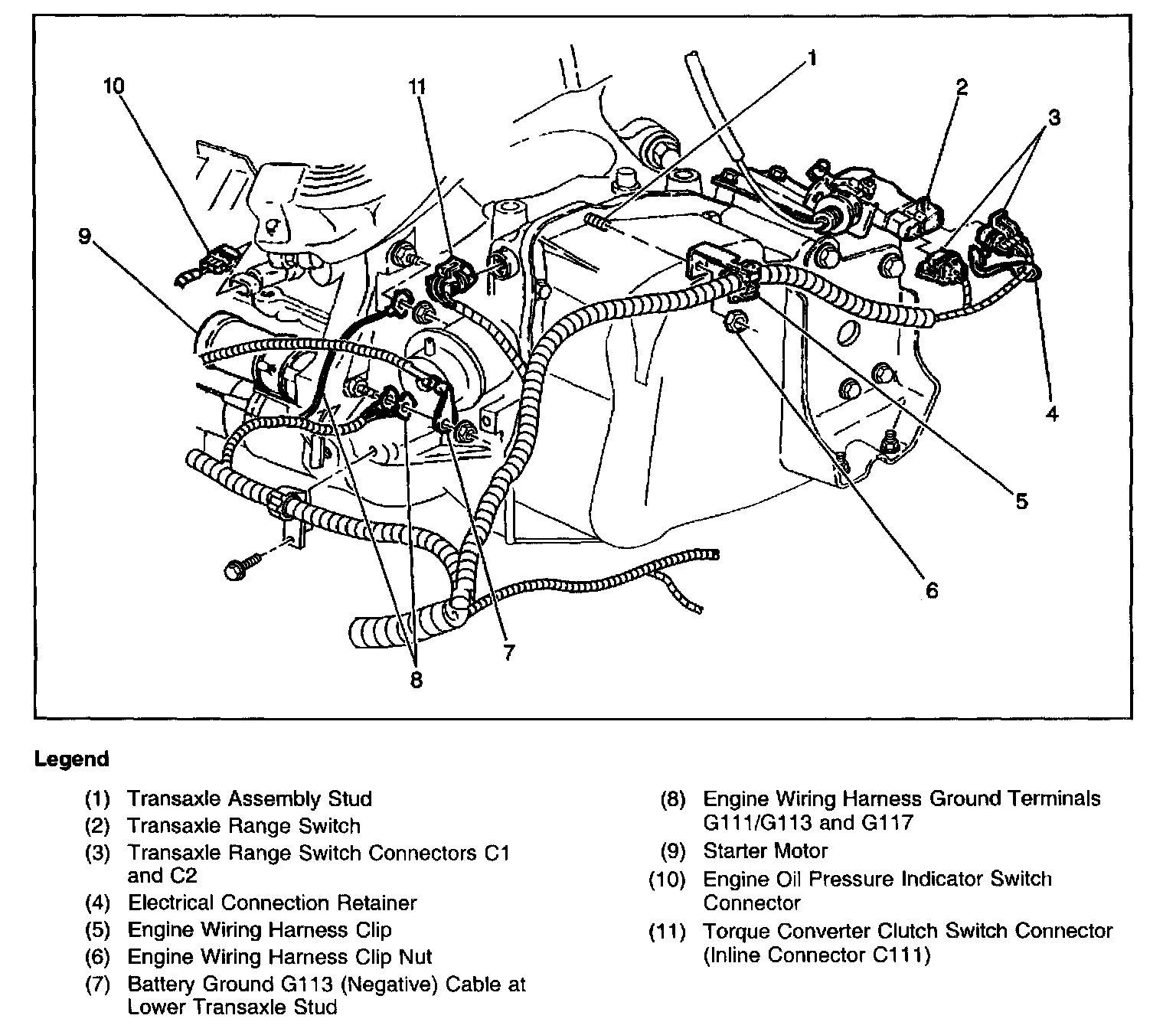

Transaxle:

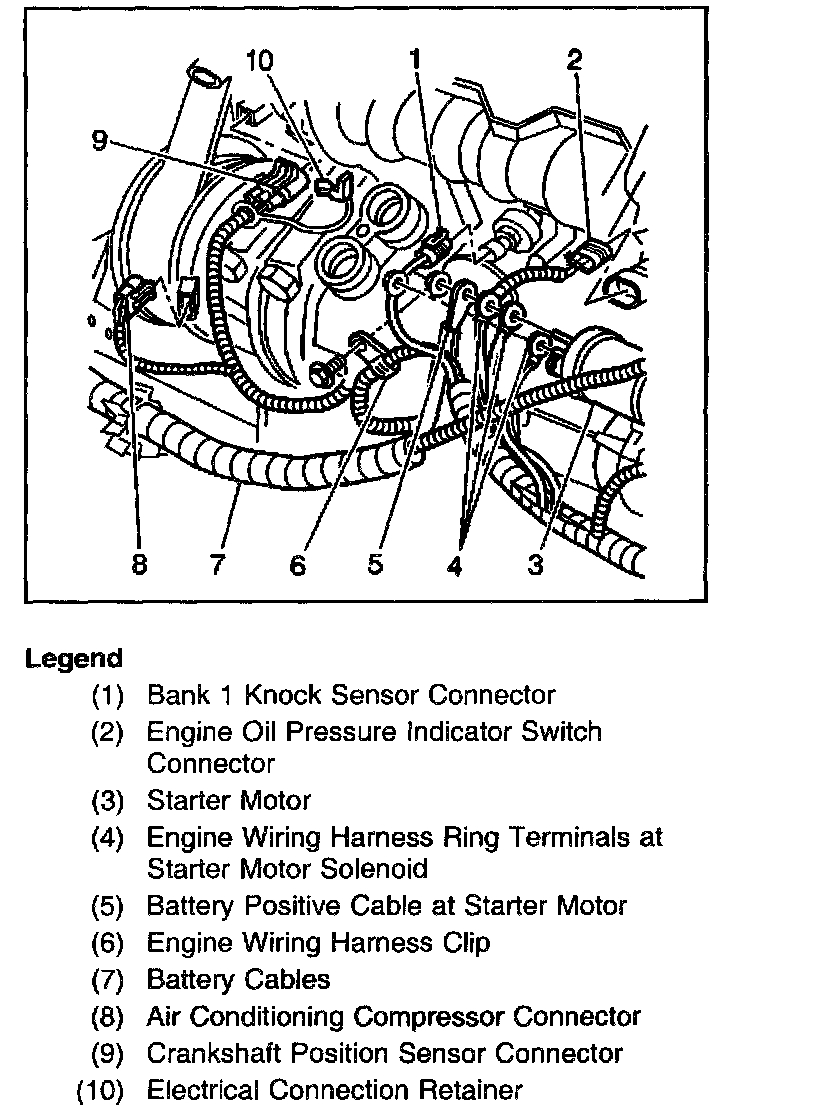

Engine Wiring Harness At Starter Motor And Air Conditioning Compressor:




Transaxle With Engine Block Heater (K05):






Lower front of engine
