Pinout Description

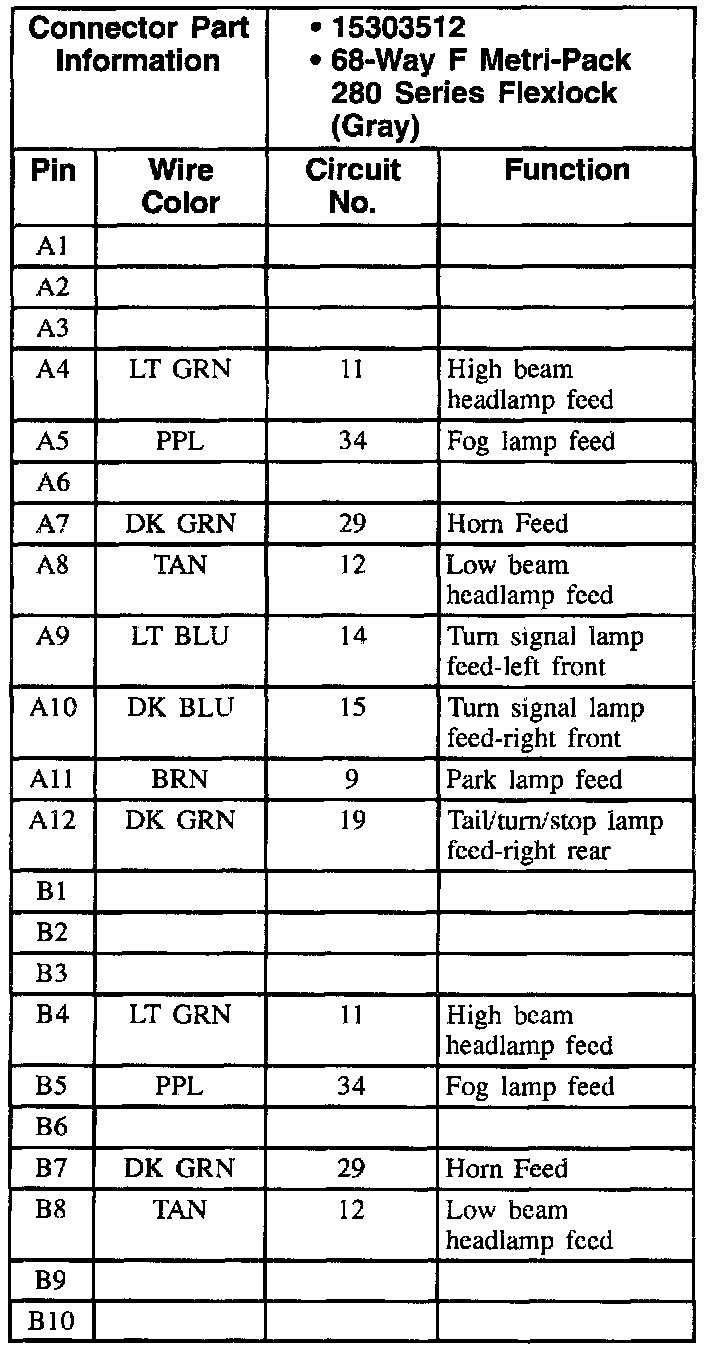

Underhood Accessory Wiring Junction Block C3 (Part 1 Of 3):

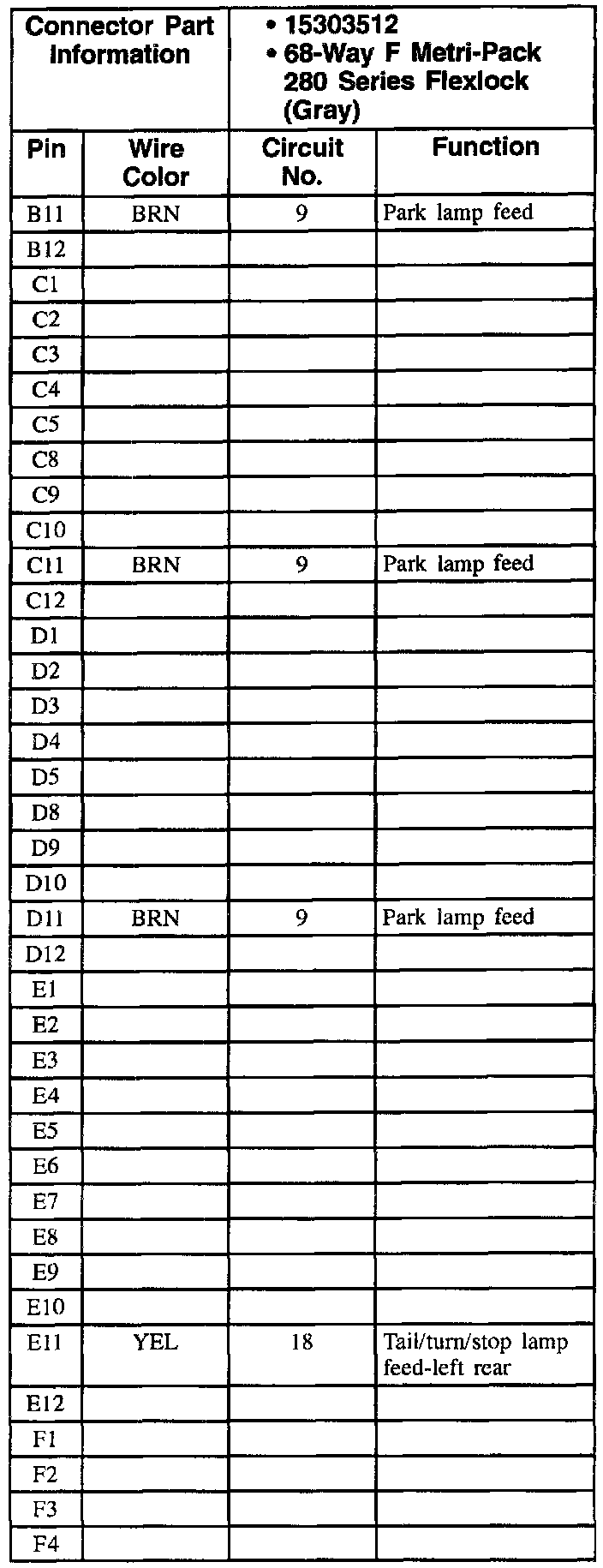

Underhood Accessory Wiring Junction Block C3 (Part 2 Of 3):



Underhood Accessory Wiring Junction Block C3 (Part 3 Of 3):
