Home
>>
Chevrolet
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
Underhood Electrical Center

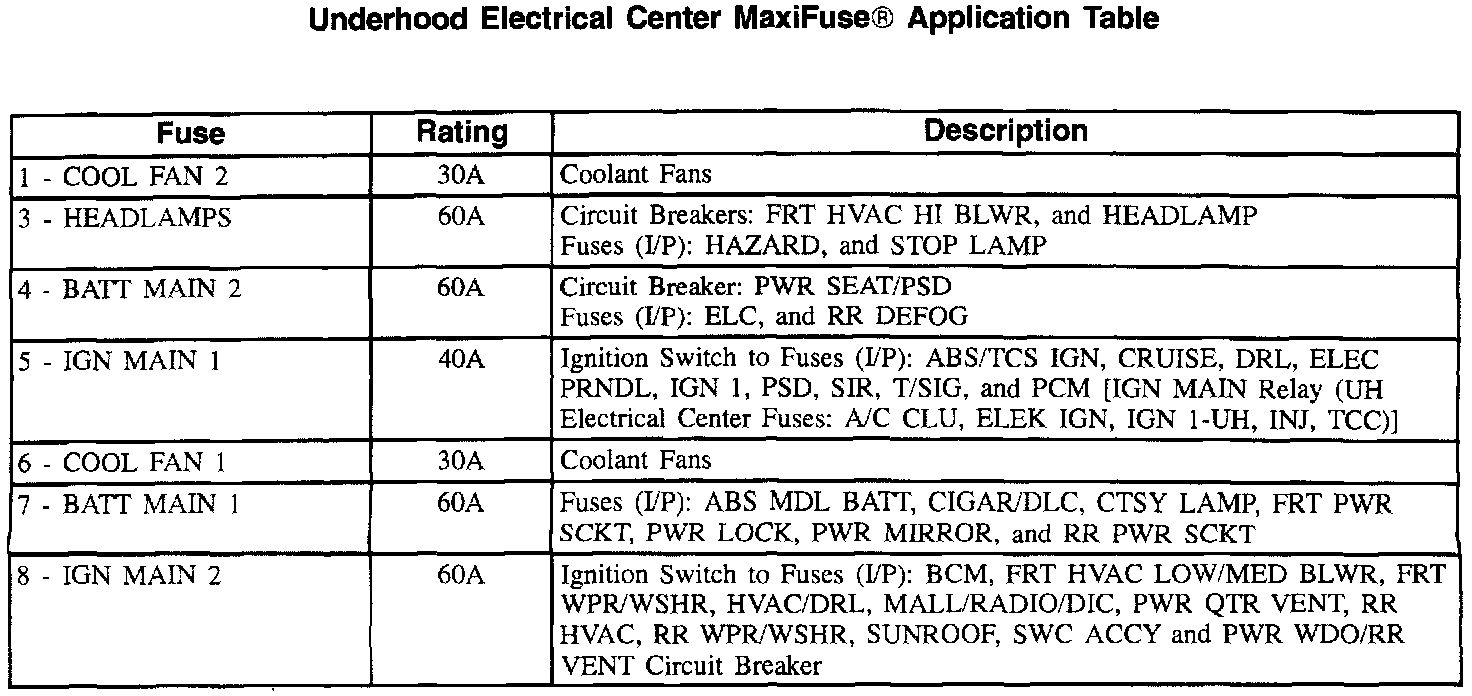

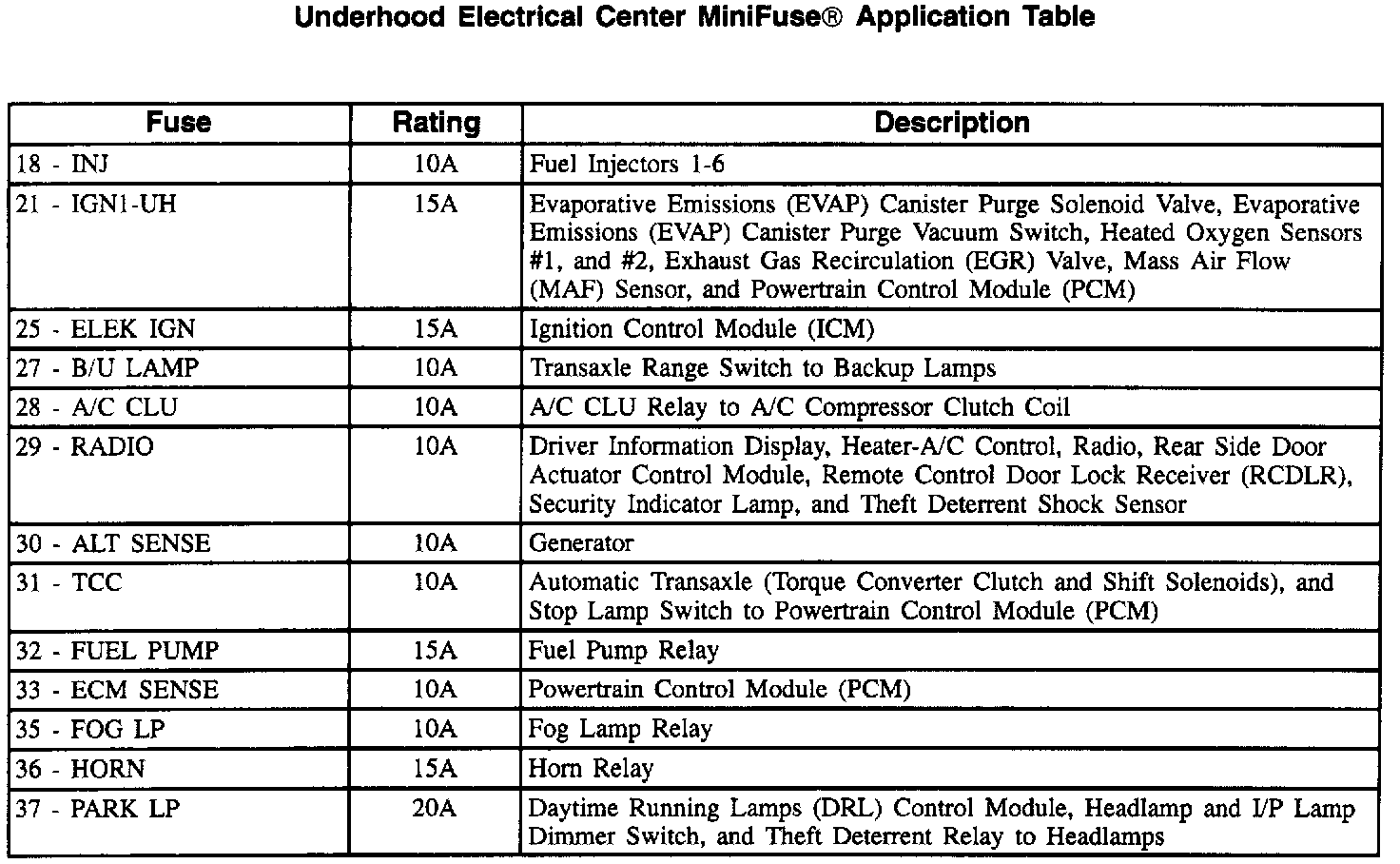

Underhood Electrical Center

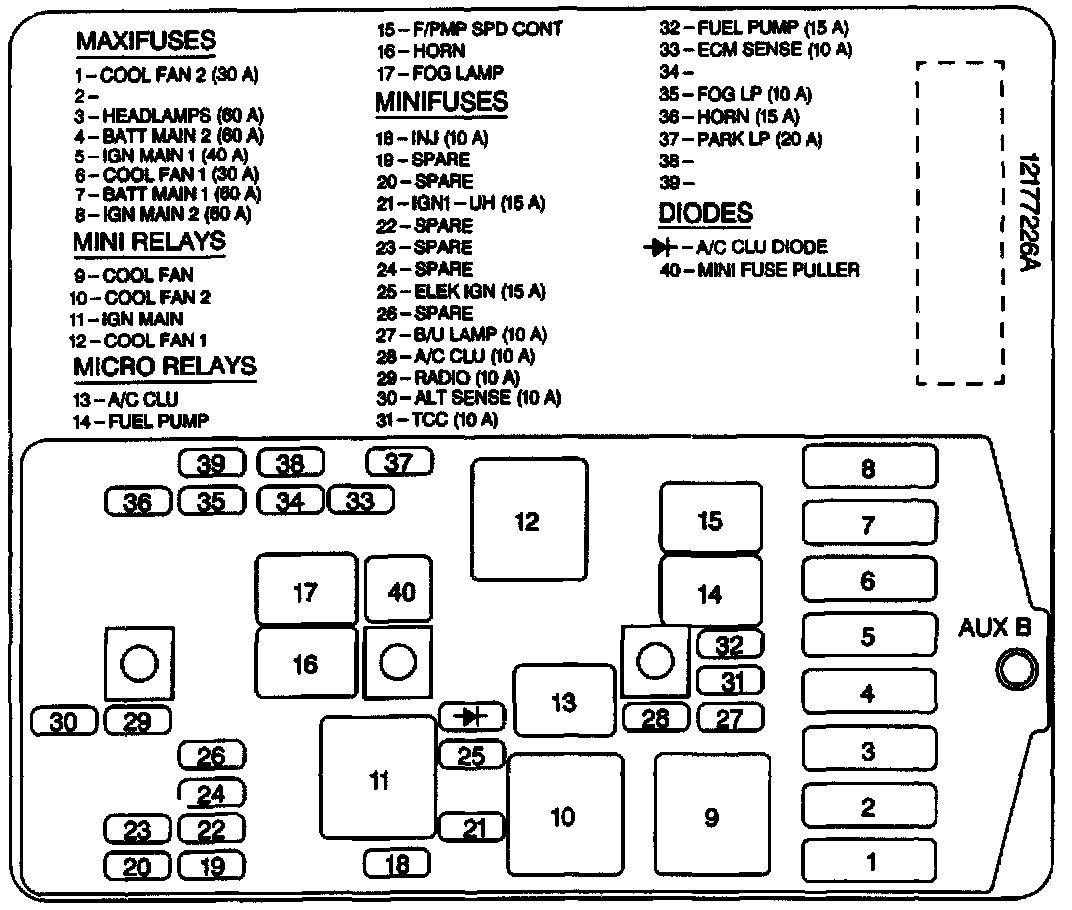

Underhood Electrical Center Label:
Underhood Electrical Center Label (Part 1 Of 2):
Underhood Electrical Center Label (Part 2 Of 2):
