UH: ALT & ECM SENSE, B/U, Fog, PK LP, Fuel Pump, Horn Fuses

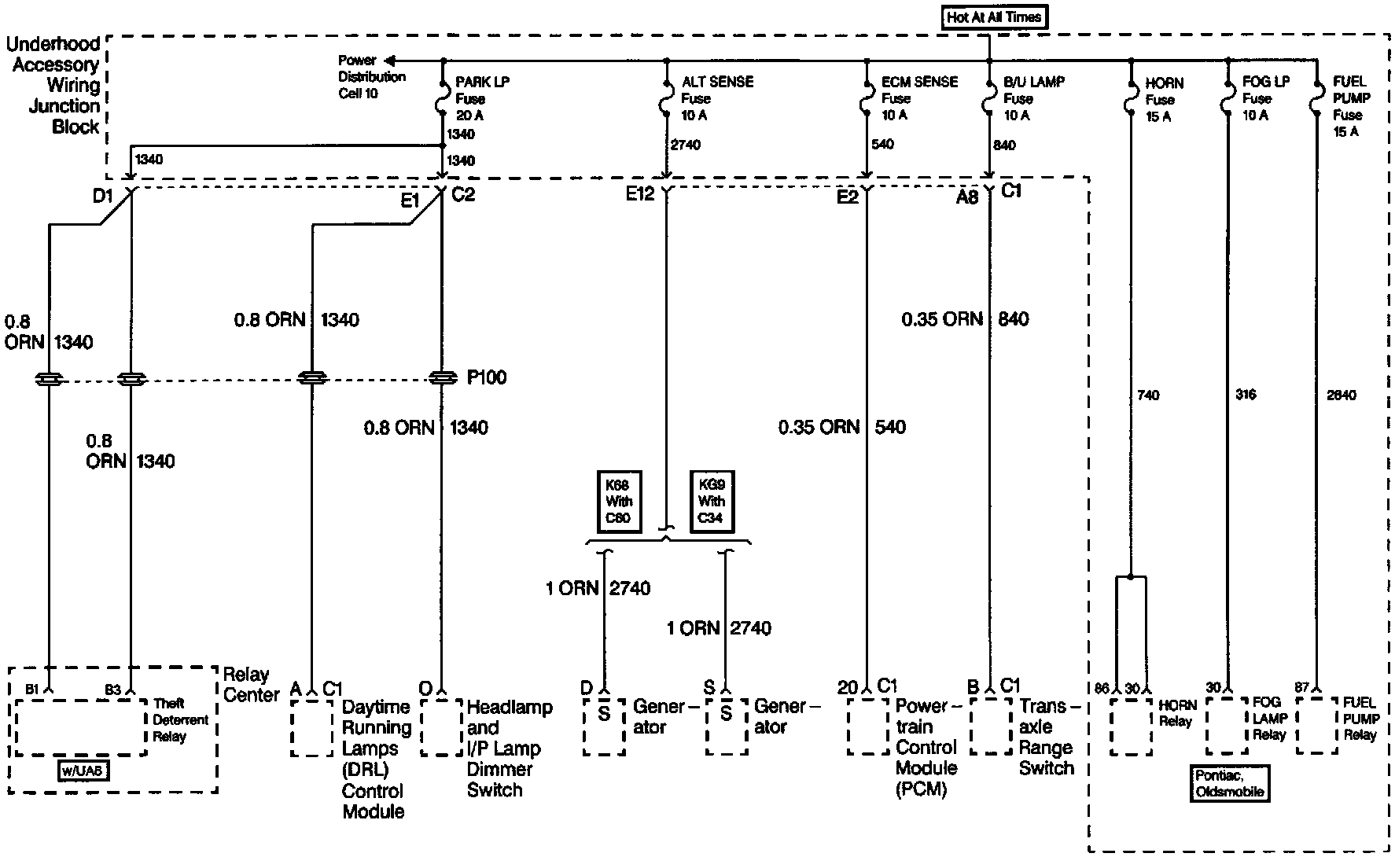

UH: ALT SENSE, B/U LAMP, ECM SENSE, FOG LP, FUEL PUMP, HORN, AND PARK LAMP FUSES:
