Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Wiper and Washer Systems >> Windshield Washer Switch >> Diagrams >> C2

C2

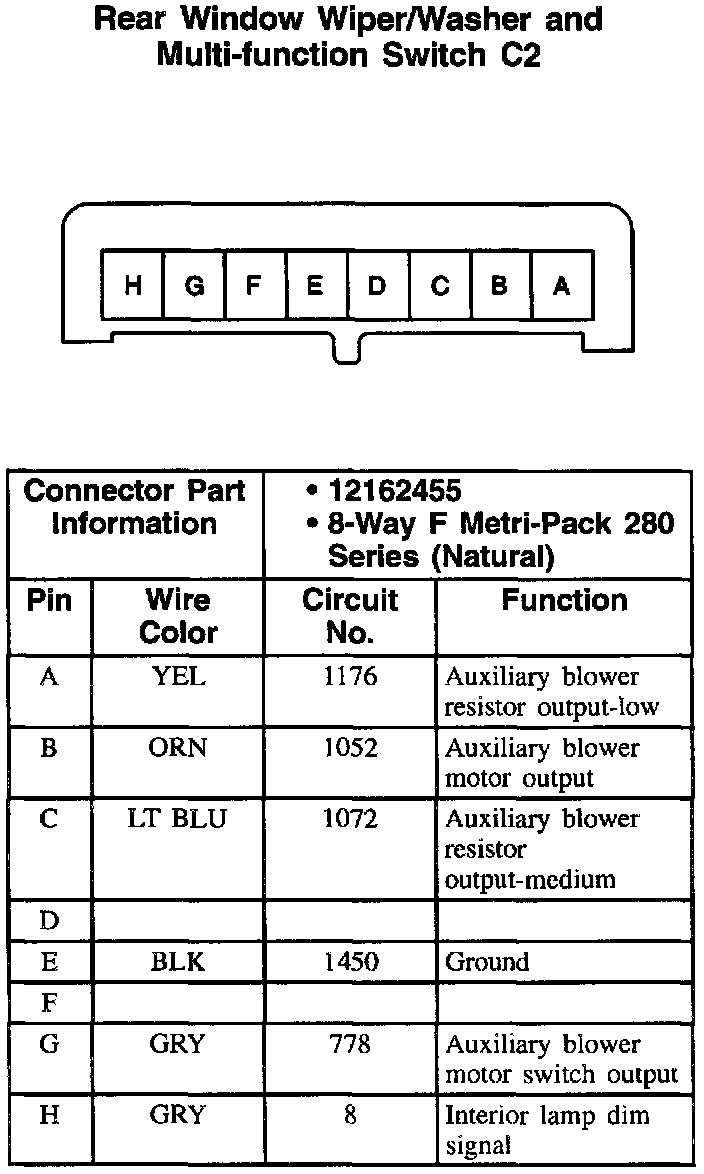

Rear Window Wiper/Washer And Multi-function Switch C2:
