Ambient Temperature Sensor / Switch HVAC: Locations

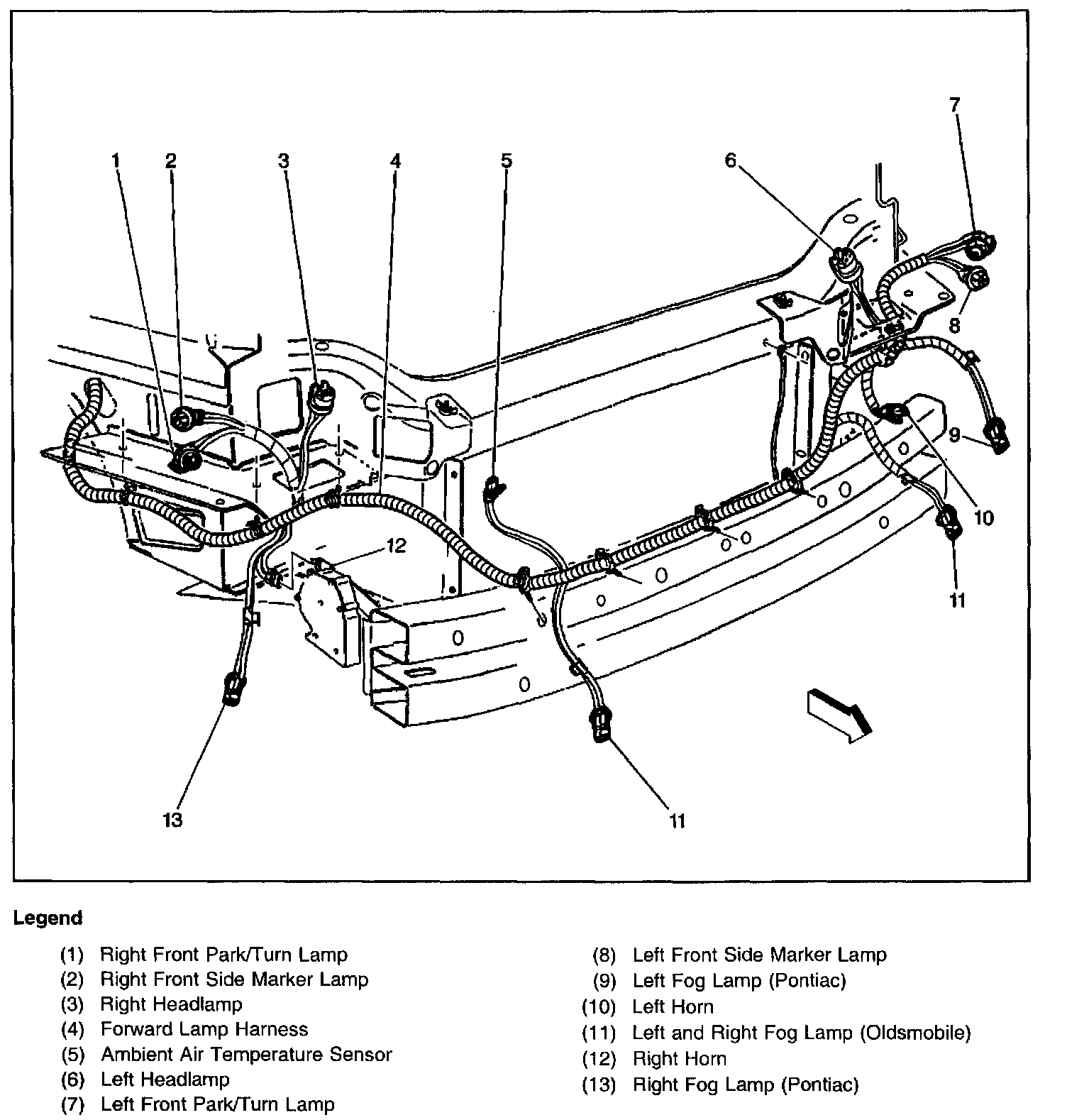

Front Of Vehicle:

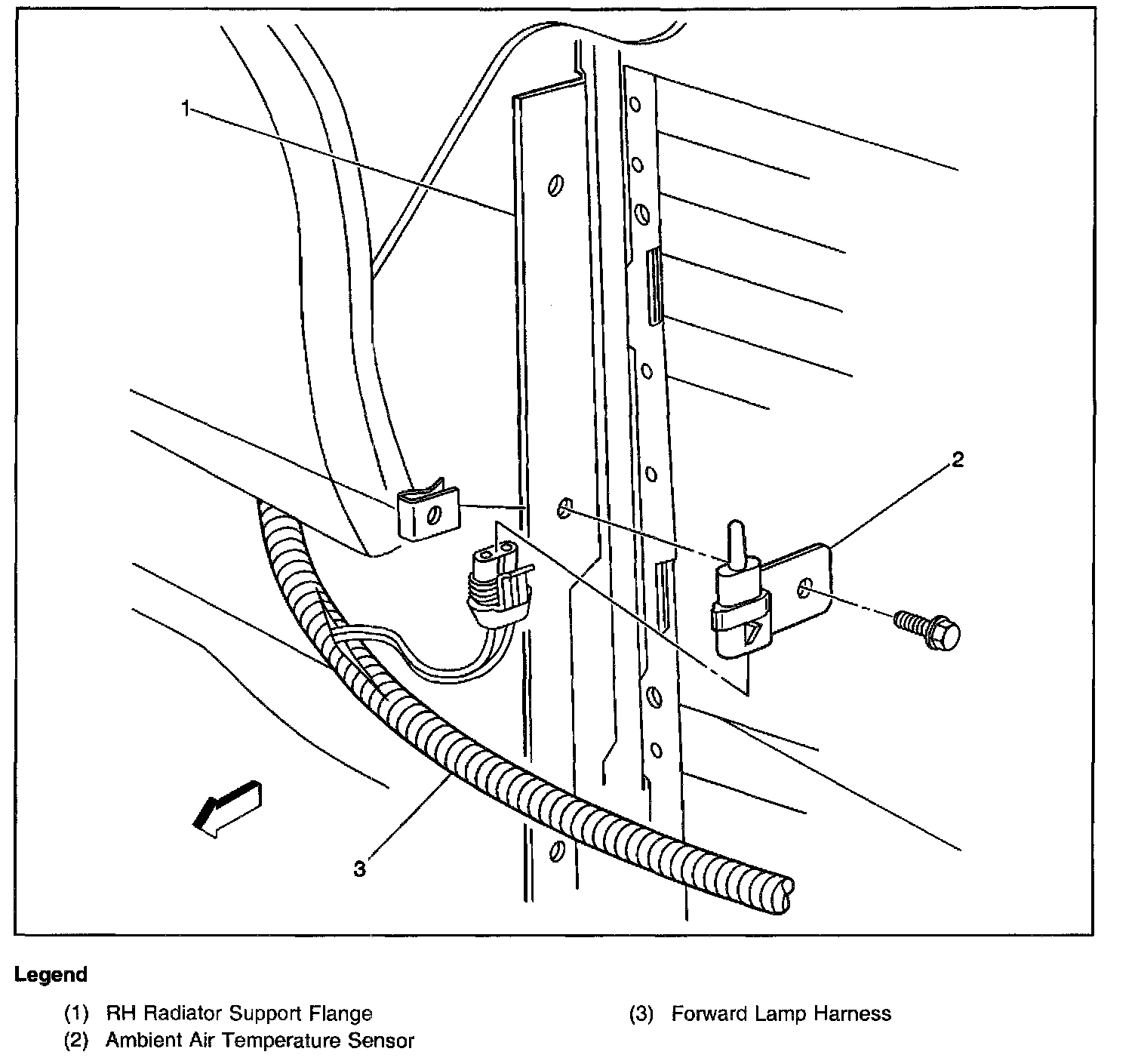

Front Of Vehicle, RH Side Of Radiator:






In front of the radiator, right side
