Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Restraints and Safety Systems >> Sensors and Switches - Restraints and Safety Systems >> Seat Belt Buckle Switch >> Locations >> Connector to Driver Seat Belt Switch

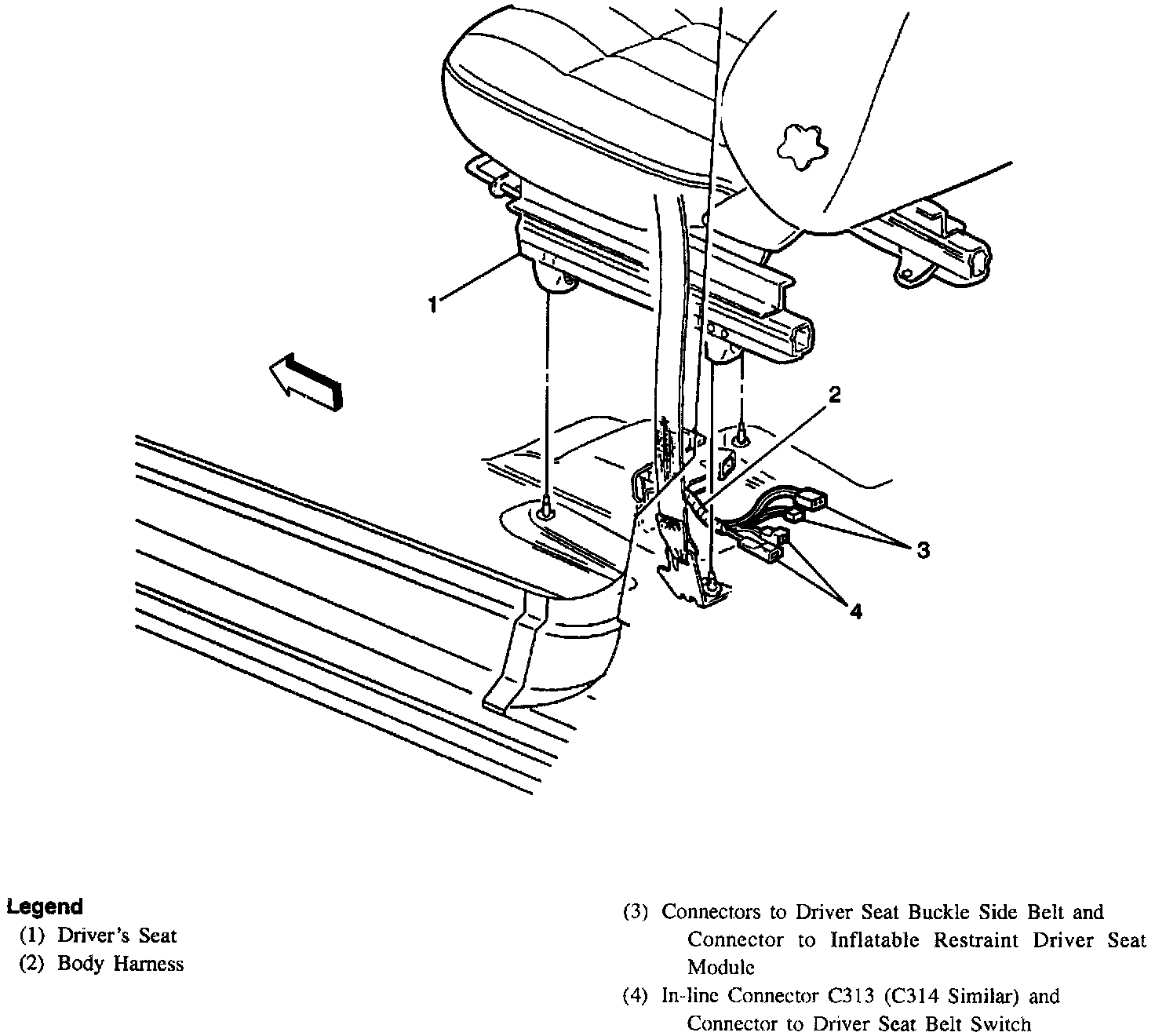

Connector to Driver Seat Belt Switch

Below Driver's Seat:
