Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Camshaft Position Sensor >> Locations

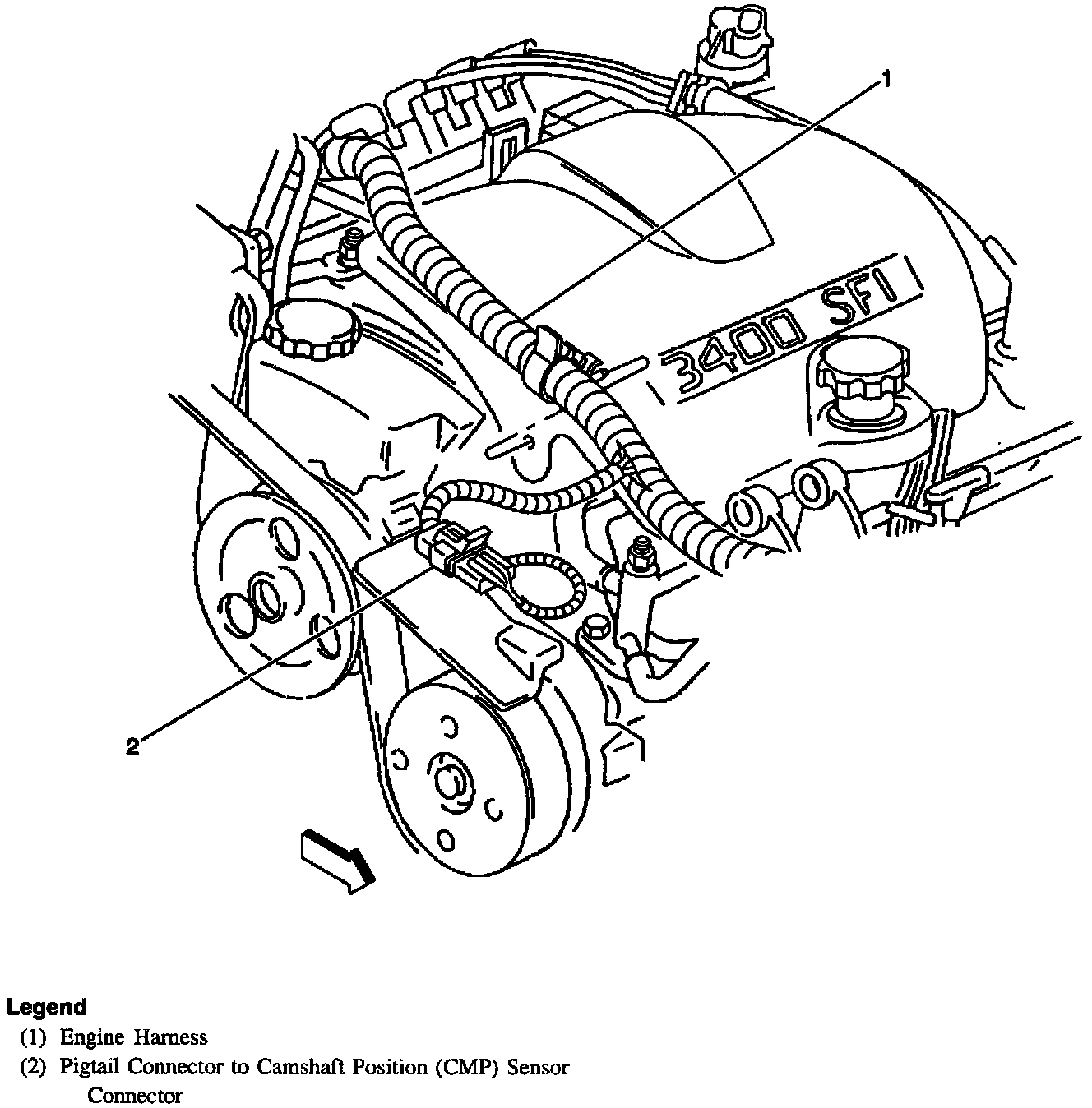

Camshaft Position Sensor: Locations

Top RH Side Of Engine Compartment:
