BCM PRGRM, FRT WPR/WSHR, MALL/Radio/DIC, RR WPR/WSHR
BCM PRGRM, FRT WPR/WSHR, MALL/Radio/DIC, RR WPR/WSHR

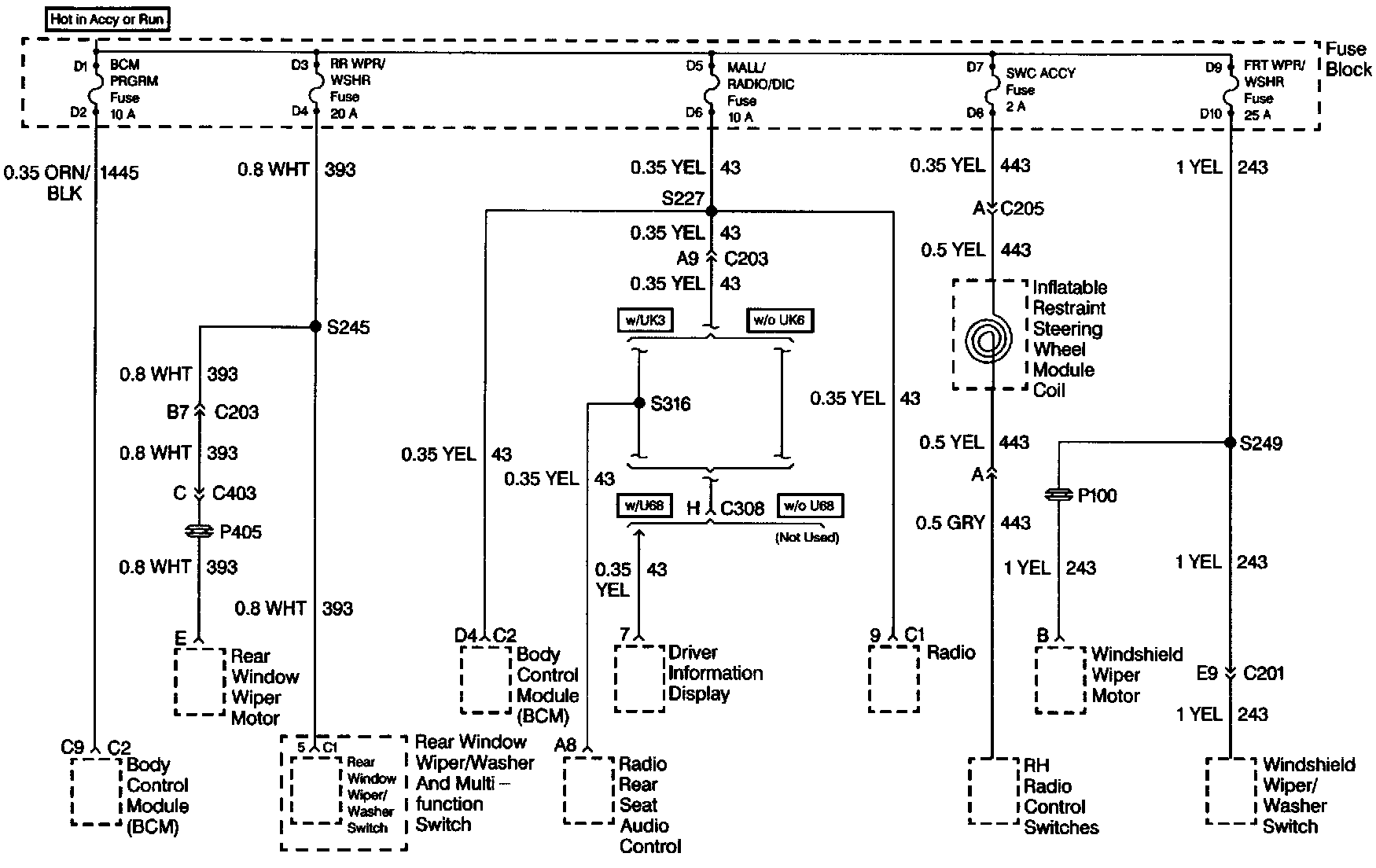

Fuse Block: BCM PRGRM, FRT WPR/WSHR, MALL/RADIO/DIC, RR WPR/WSHR, AND SWC ACCY FUSES:
