Heater Inlet Hose

Removal Procedure

1. Remove the air cleaner cover and duct assembly.
2. Disconnect the wiper linkage.
3. Drain the cooling system.

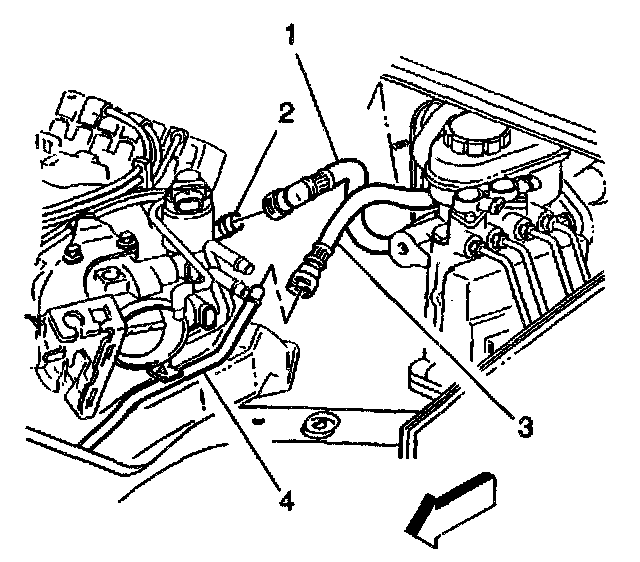

4. Disconnect the inlet hose (1) from the inlet pipe (2).
5. Disconnect the inlet hose from the heater core.





6. Remove the inlet hose.

Installation Procedure

1. Install the inlet hose.





2. Connect the inlet hose to the heater core and position the hose clamp as indicated.

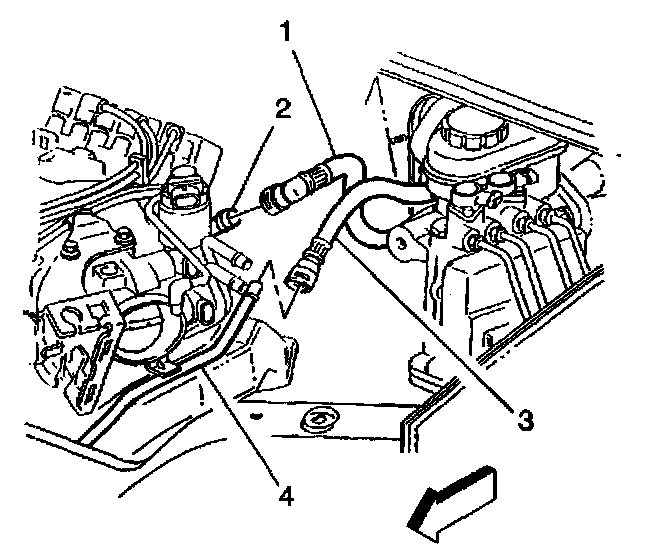

3. Connect the inlet (1) hose to the inlet pipe (2).
4. Refill the coolant.
5. Connect the wiper linkage.
6. Install the air cleaner cover and duct assembly.
