Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Diagrams >> Electrical Diagrams

Electrical Diagrams

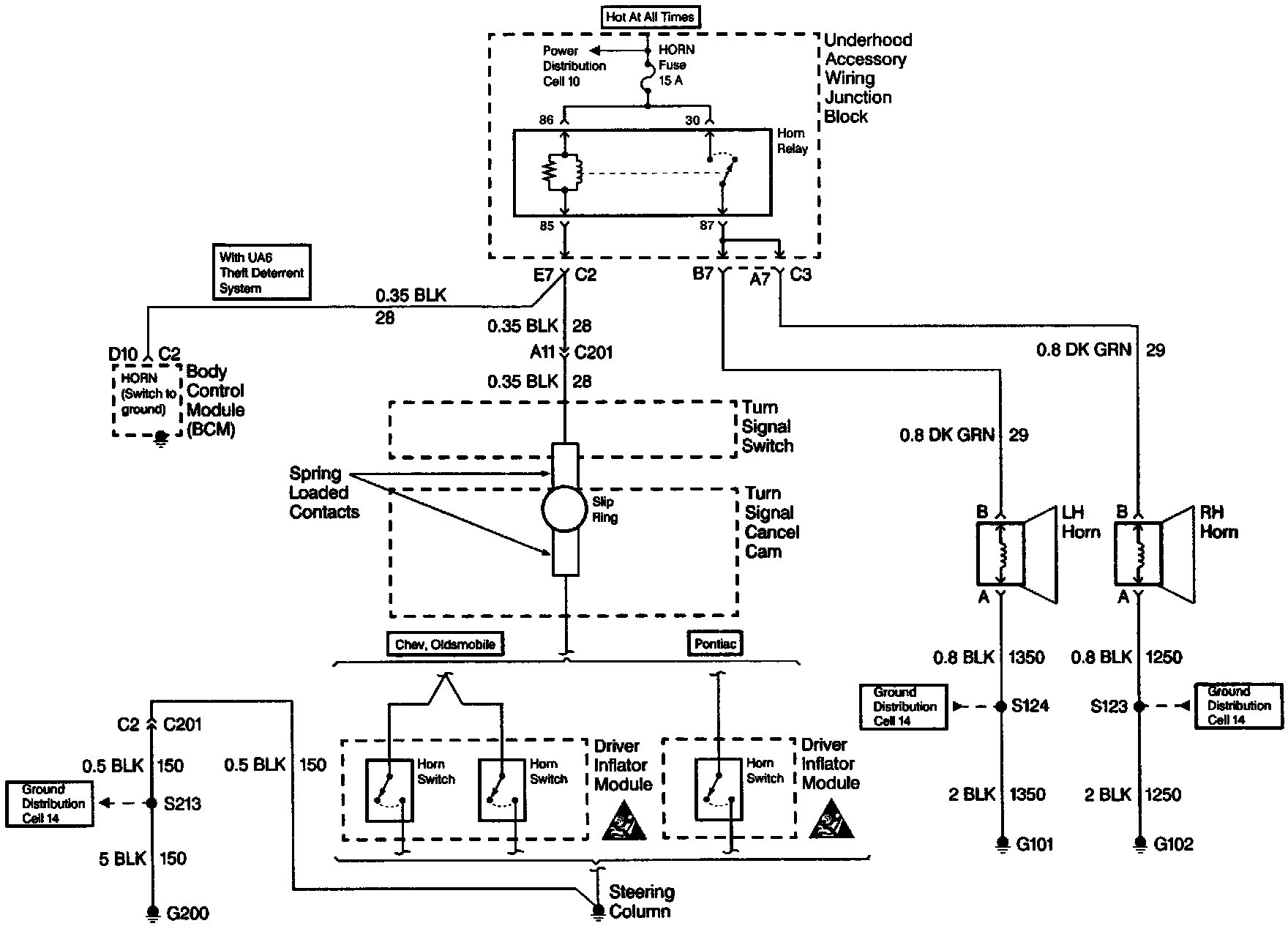

Horns:
