One Backup Lamp Inoperative

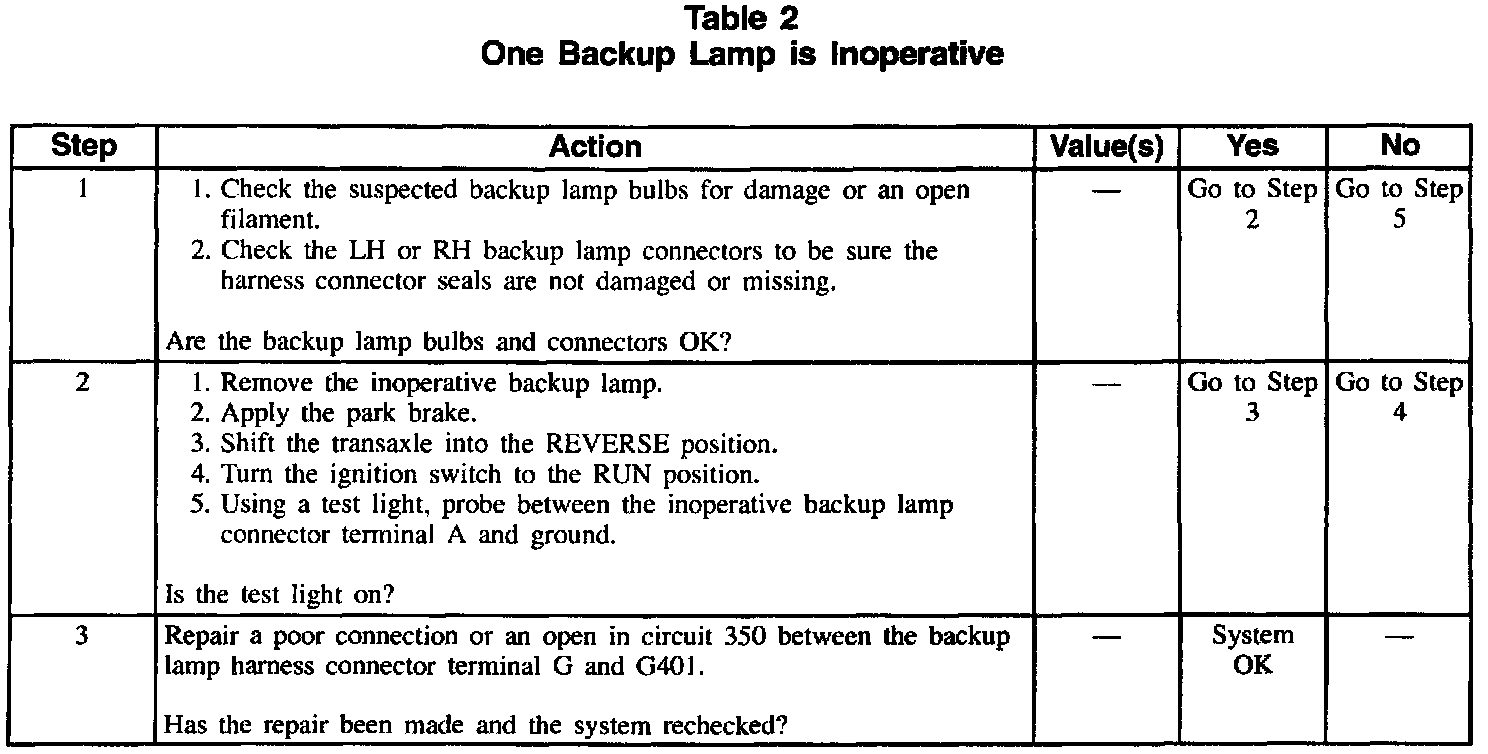

Table2: One Backup Lamp Is Inoperative (Part 1 Of 2):



Table2: One Backup Lamp Is Inoperative (Part 2 Of 2):
