Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Locations >> Component Locations >> I/P Harness to Engine Harness

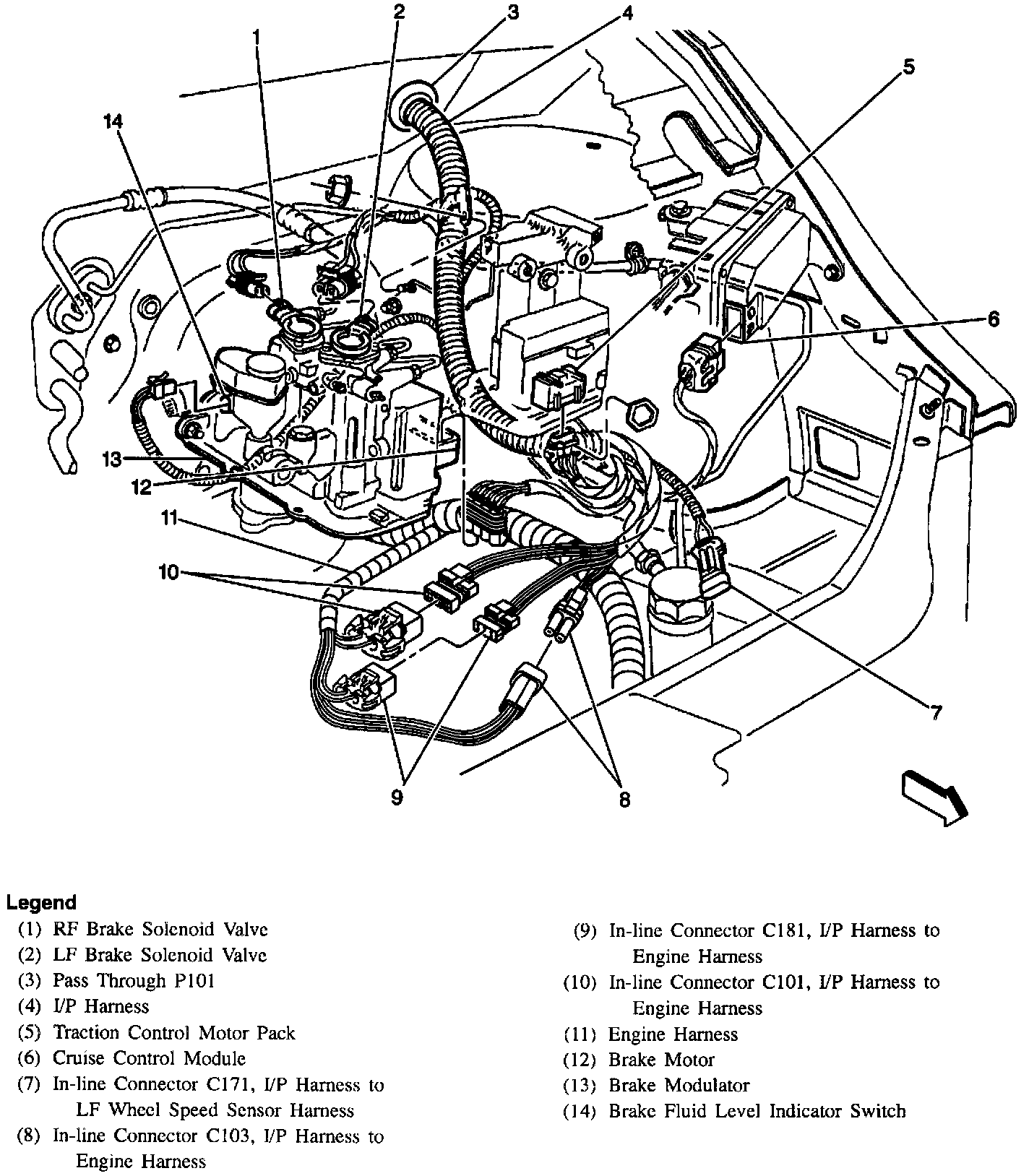

I/P Harness to Engine Harness

LH Side Of Engine Compartment:
