Harness Locations

Underhood Accessory Wiring Junction Block And Cover:

Left Side Of IP, Left Of HVAC:

Right Side Of IP, Above Base Of Steering Column:

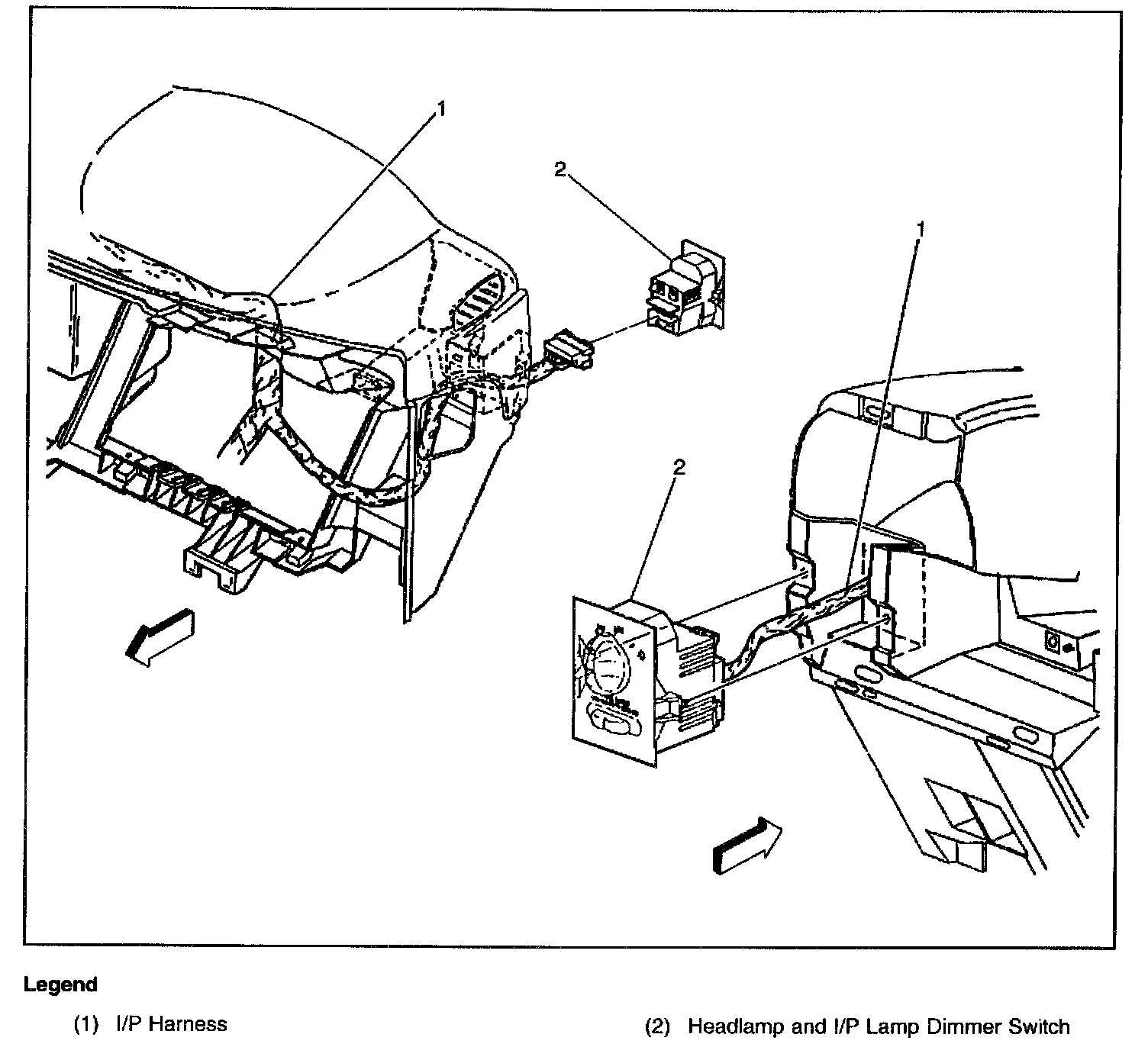

Left Side Of IP:

Rear, Left Side Of Engine Compartment:

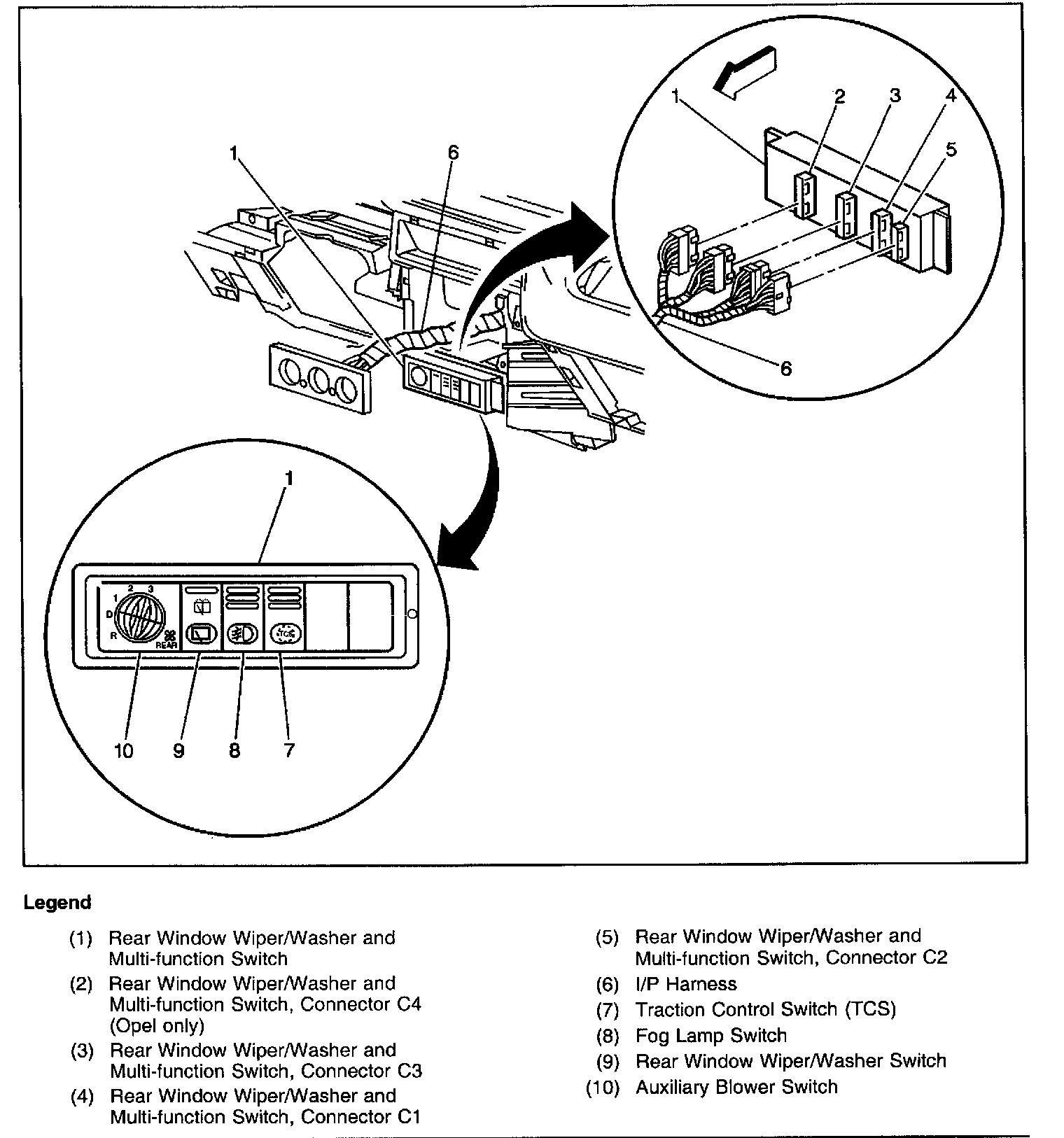

Center Of IP:

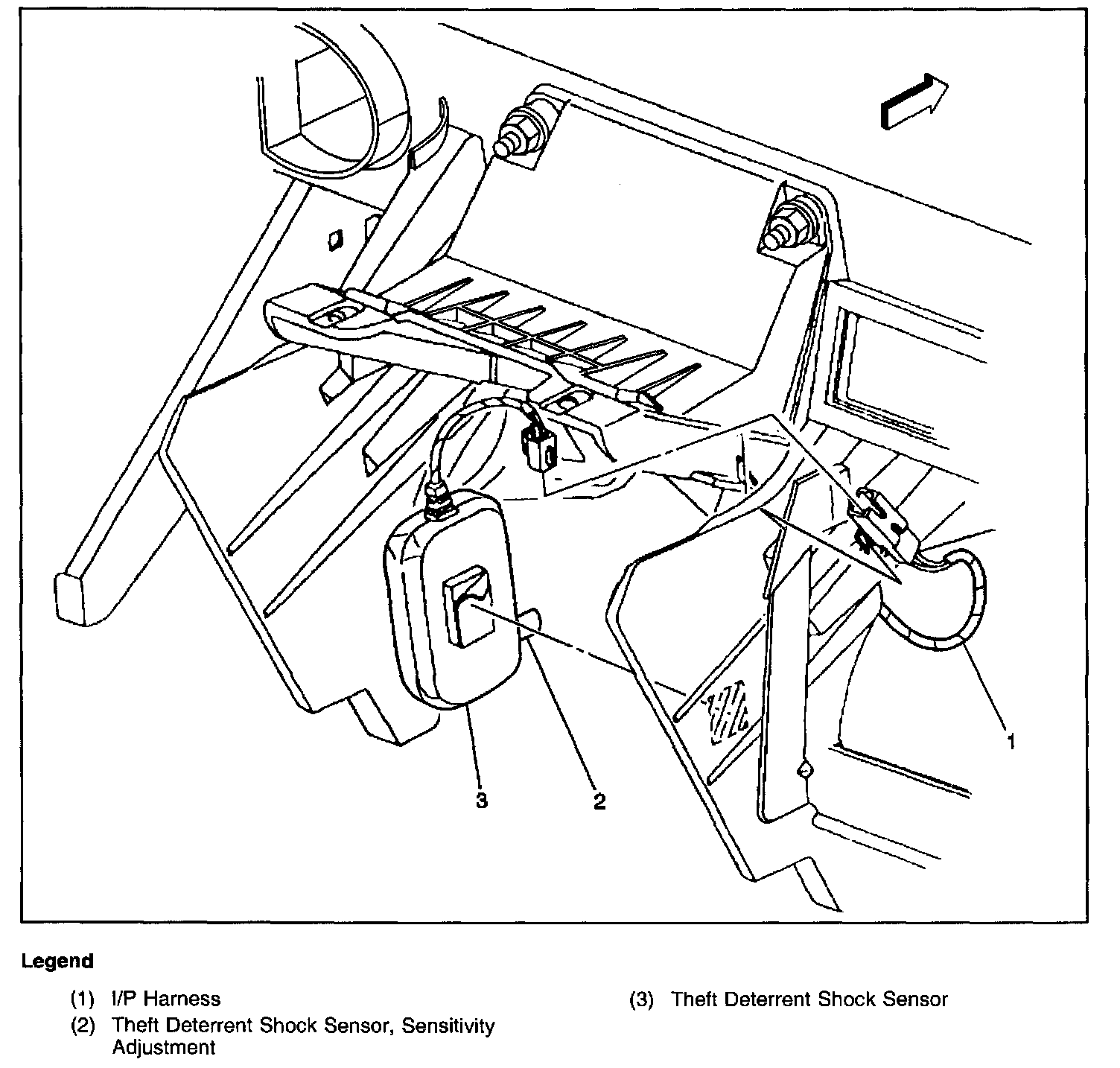

RH Side IP:

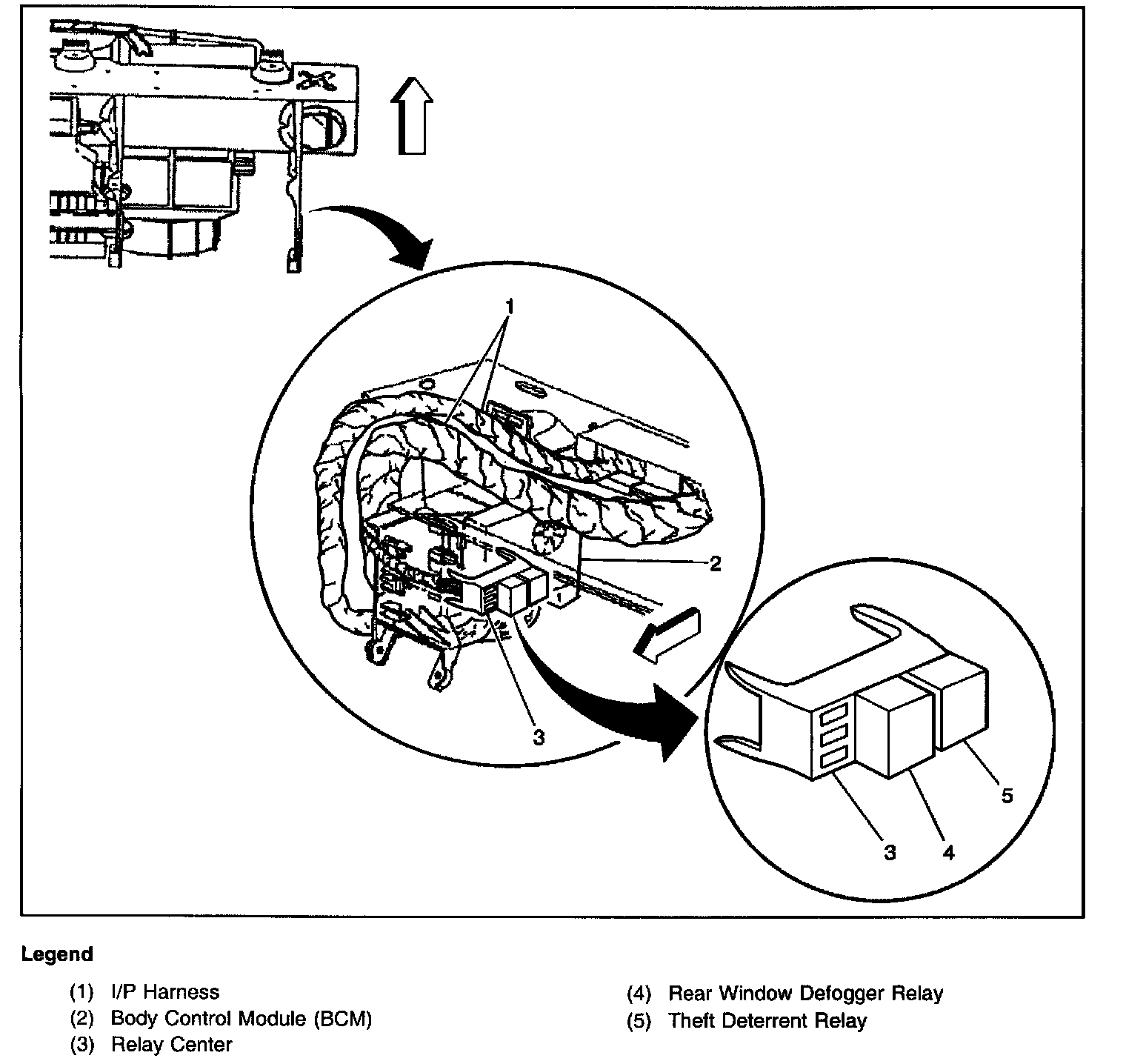

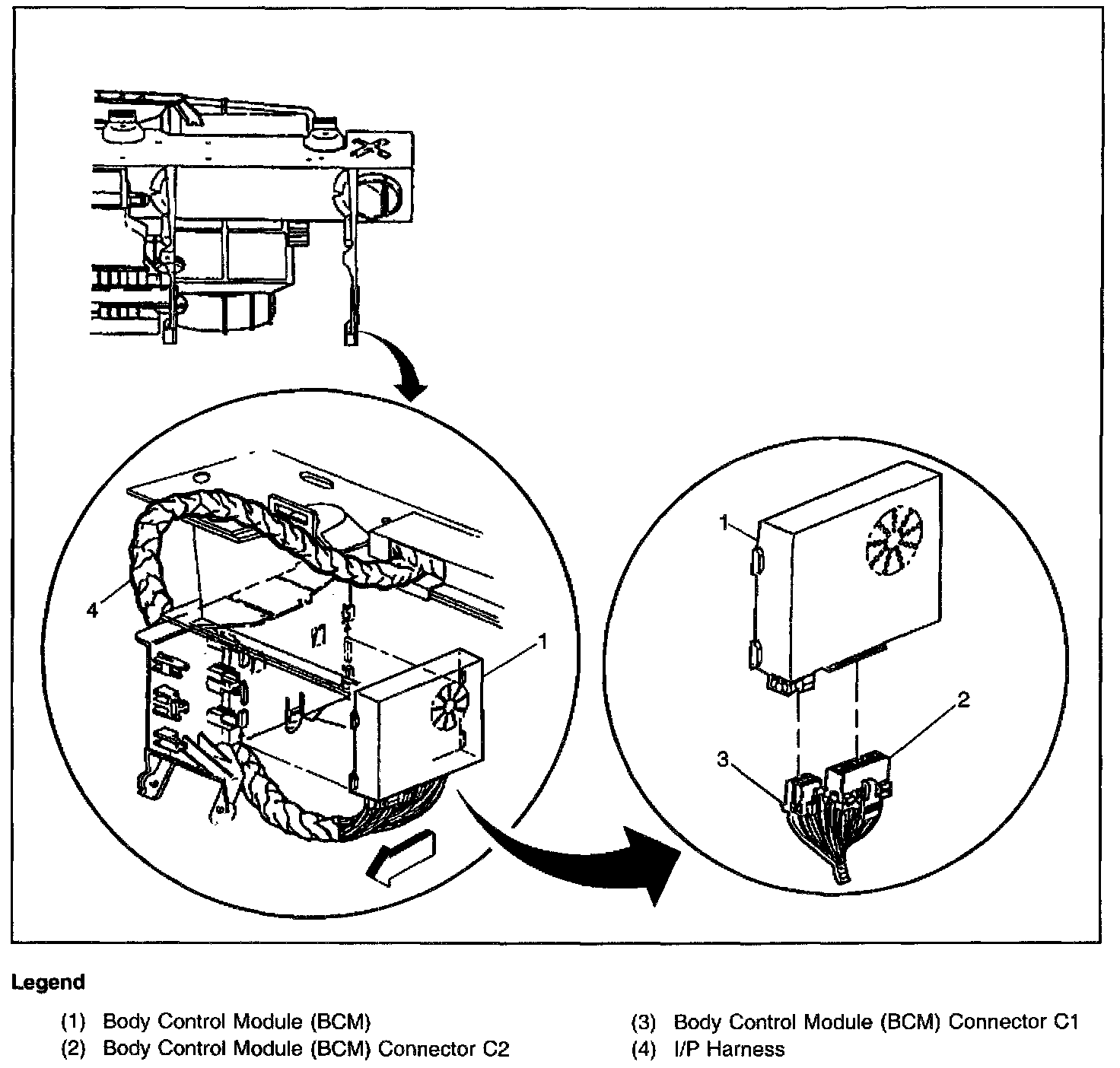

Below RH Side Of IP:

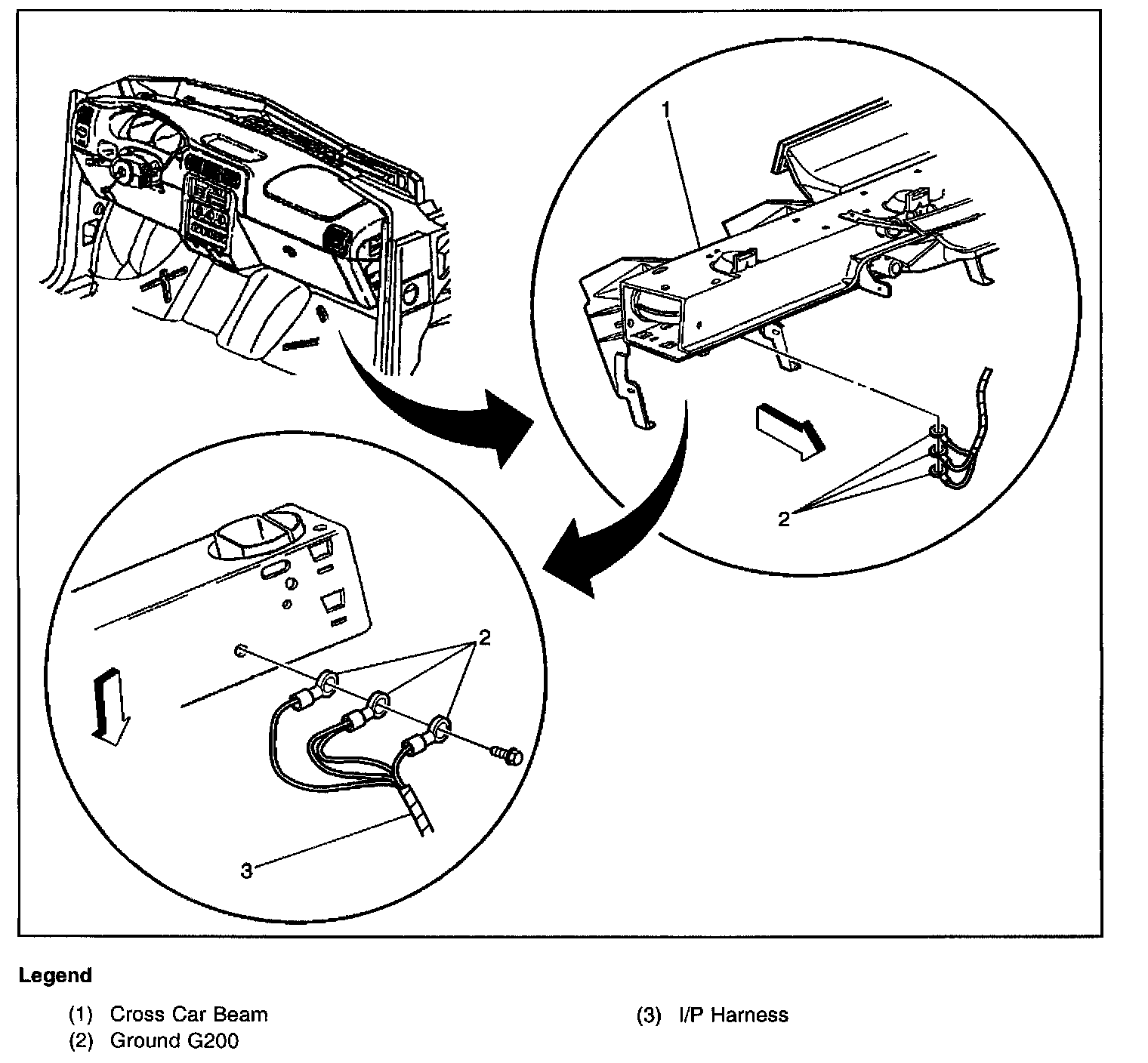

RH Side Of IP, Bottom Of Cross Car Beam:

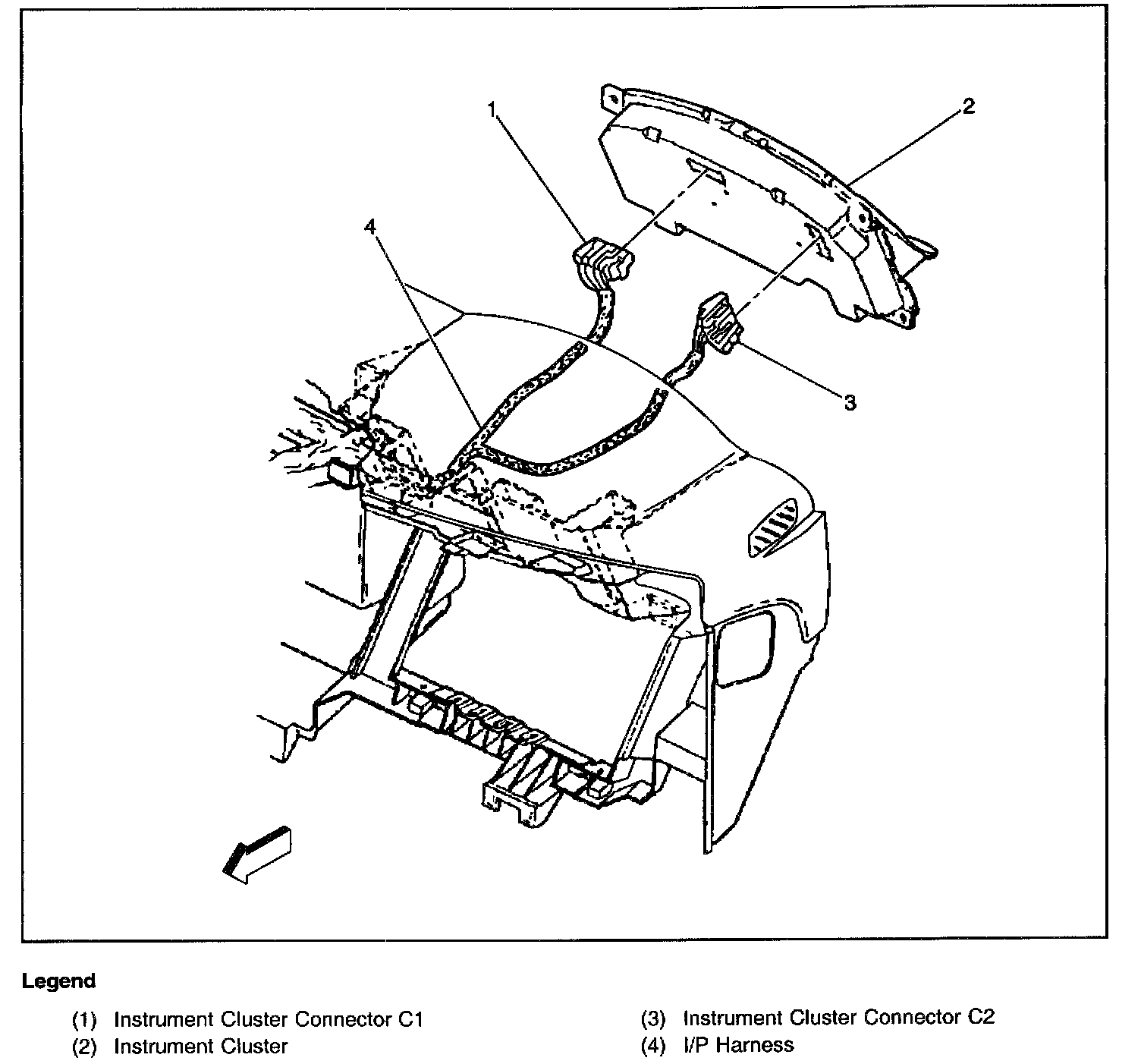

LH Side Of IP, Above Steering Column:

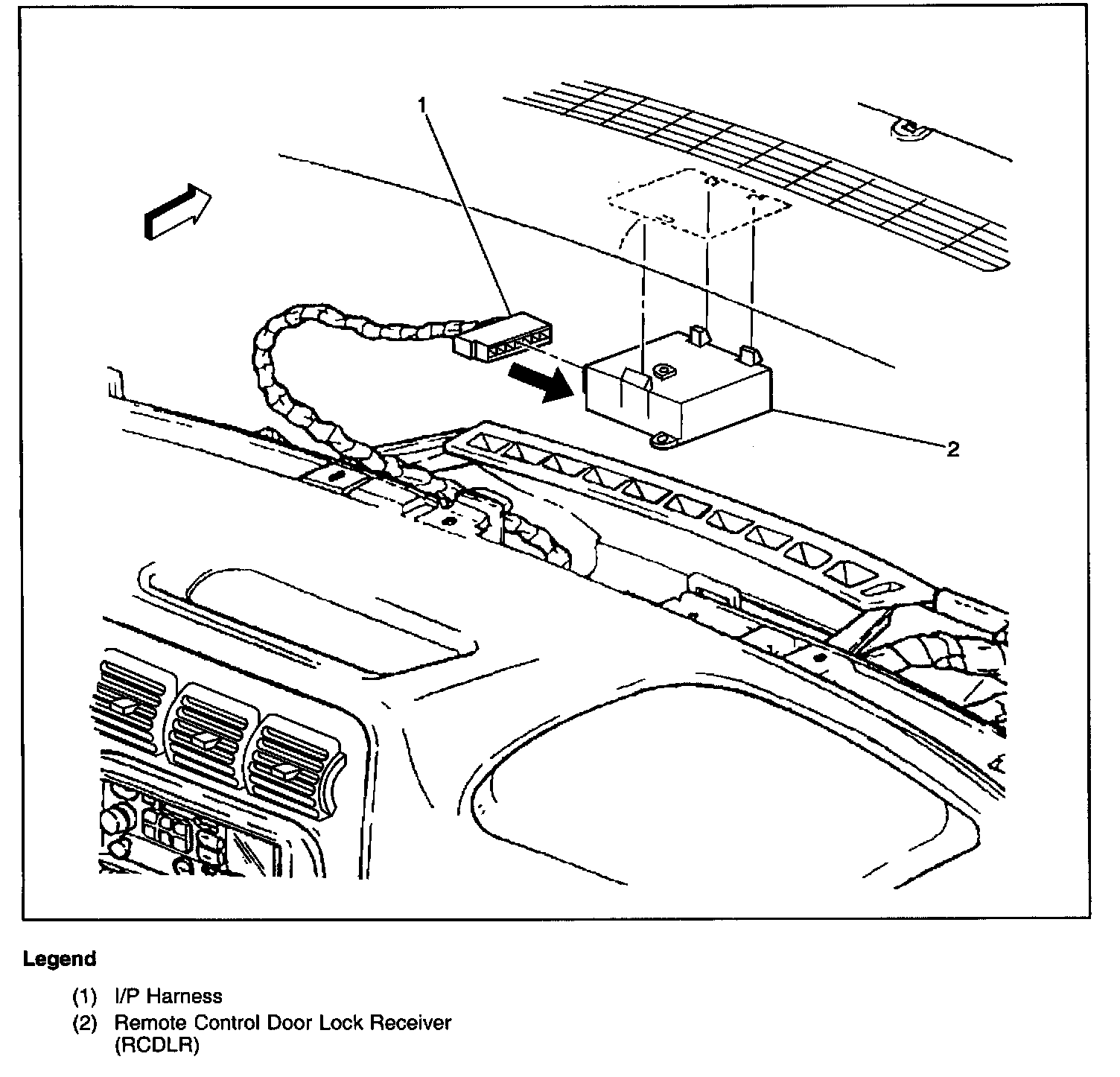

Center Of IP, Below Upper Panel Trim:

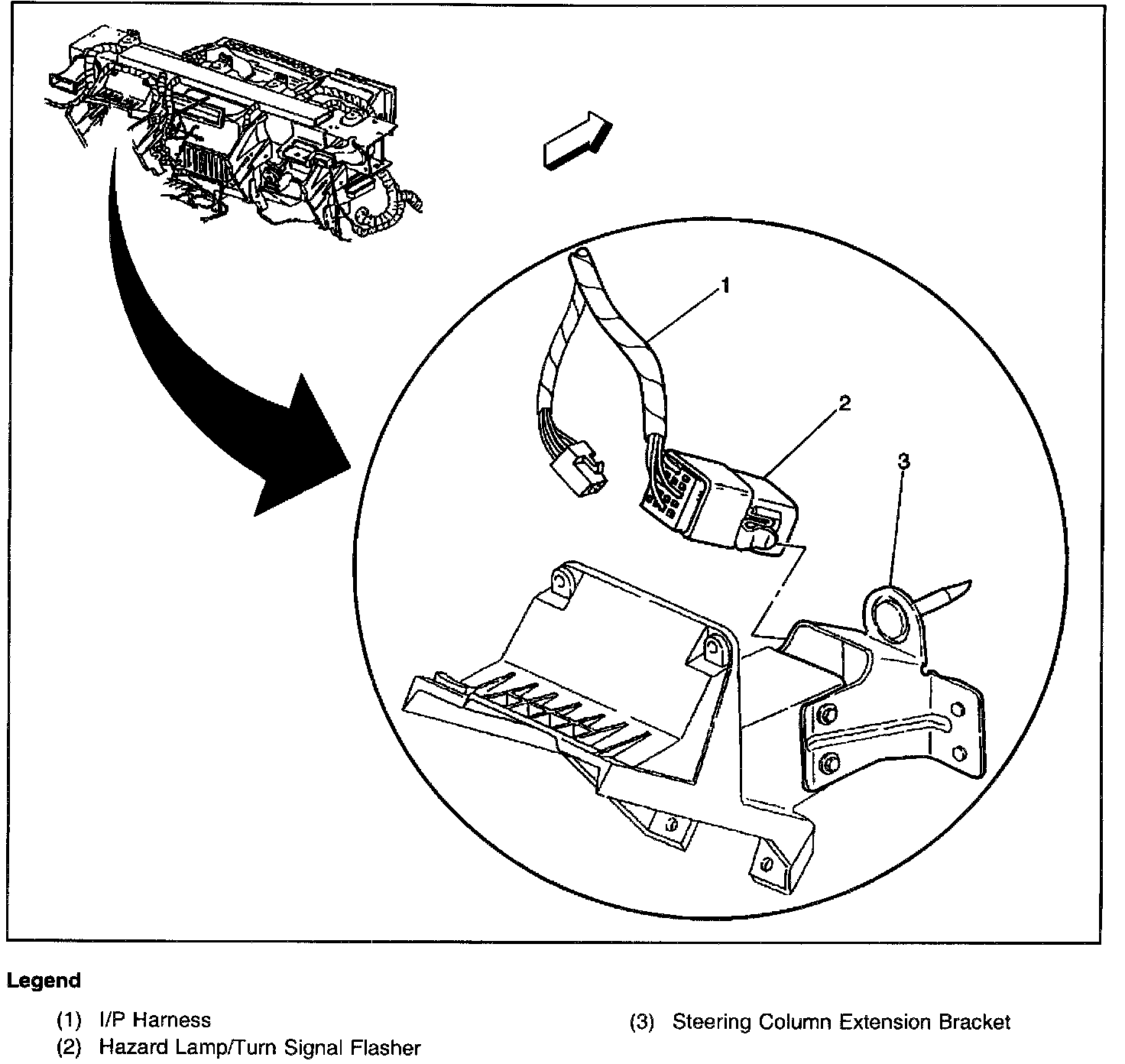

Right Side Of Steering Column:
