Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

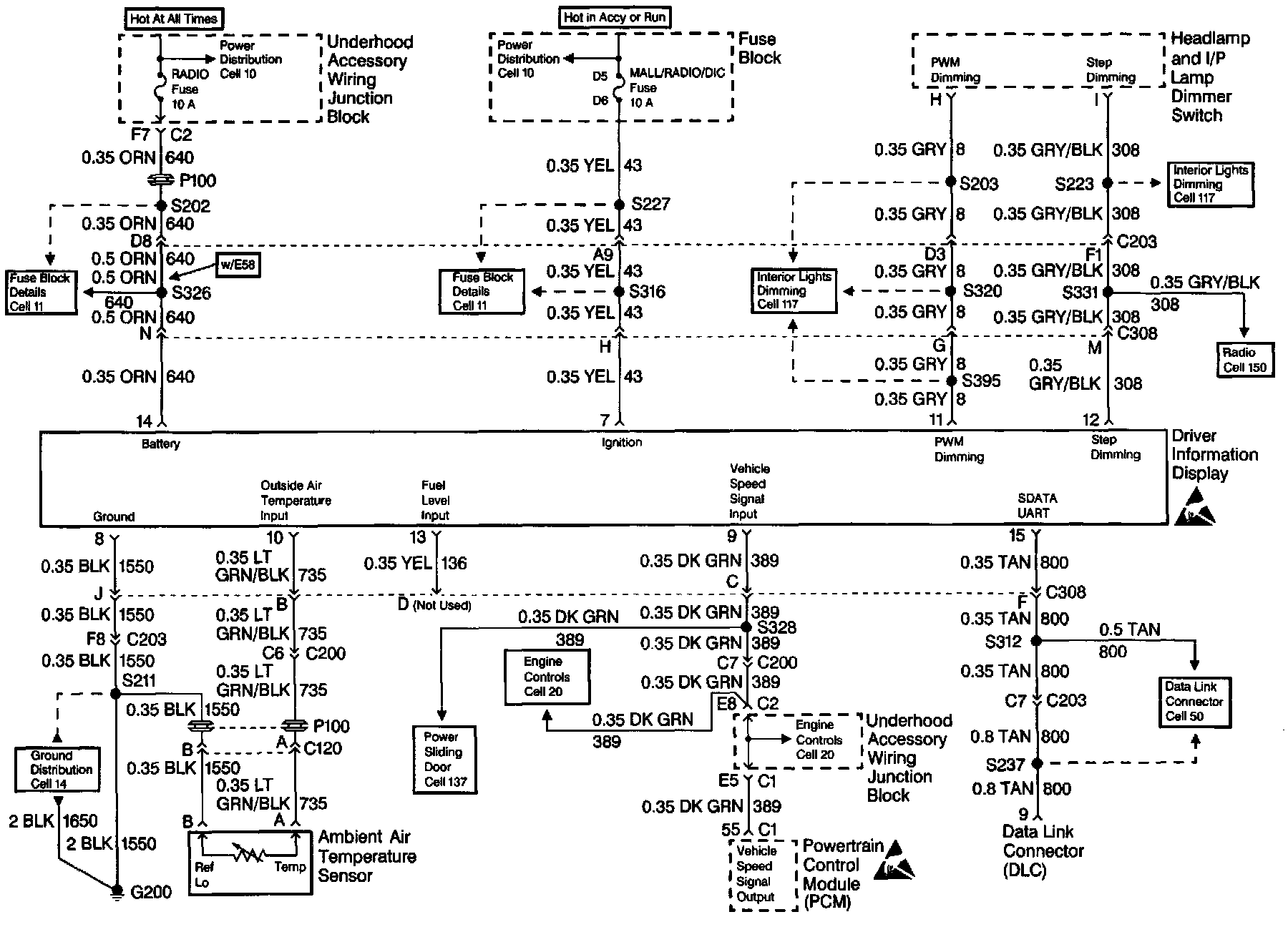

Driver Information Center:
