Home
>>
Chevrolet
>>
1998
>>
Venture V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Driver/Vehicle Information Display
>>
Diagrams
>>
Connector Views
Connector Views

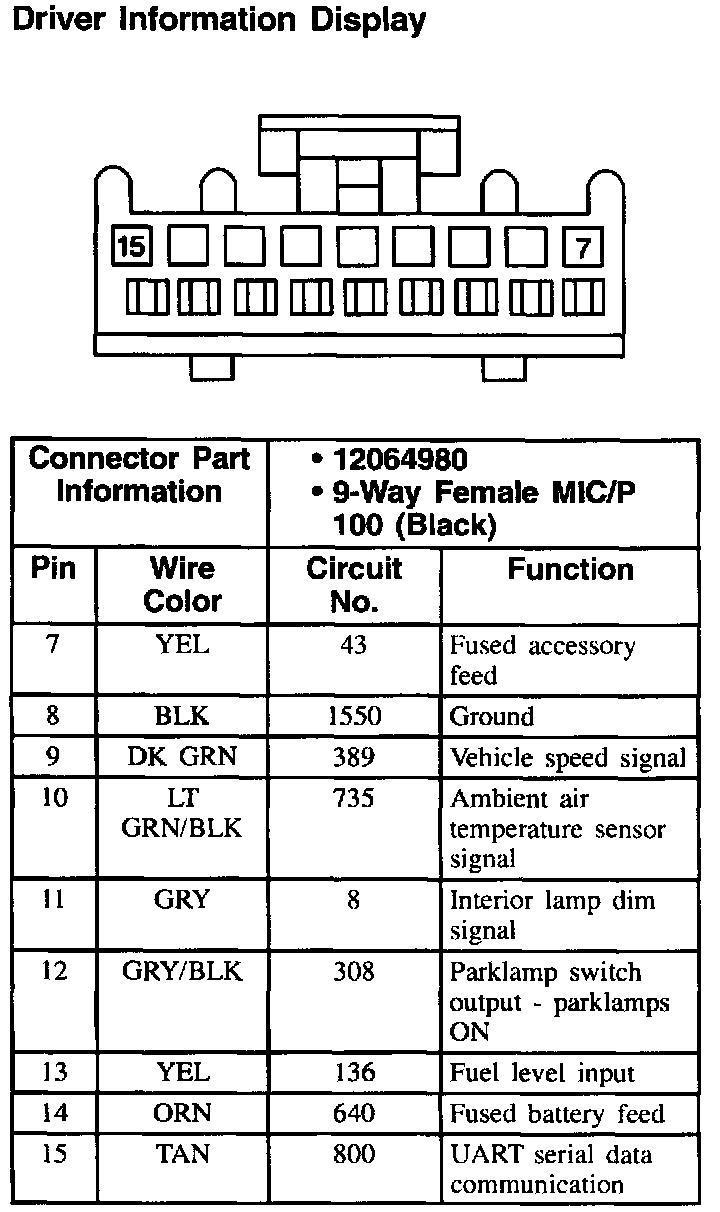

Driver Information Display:
