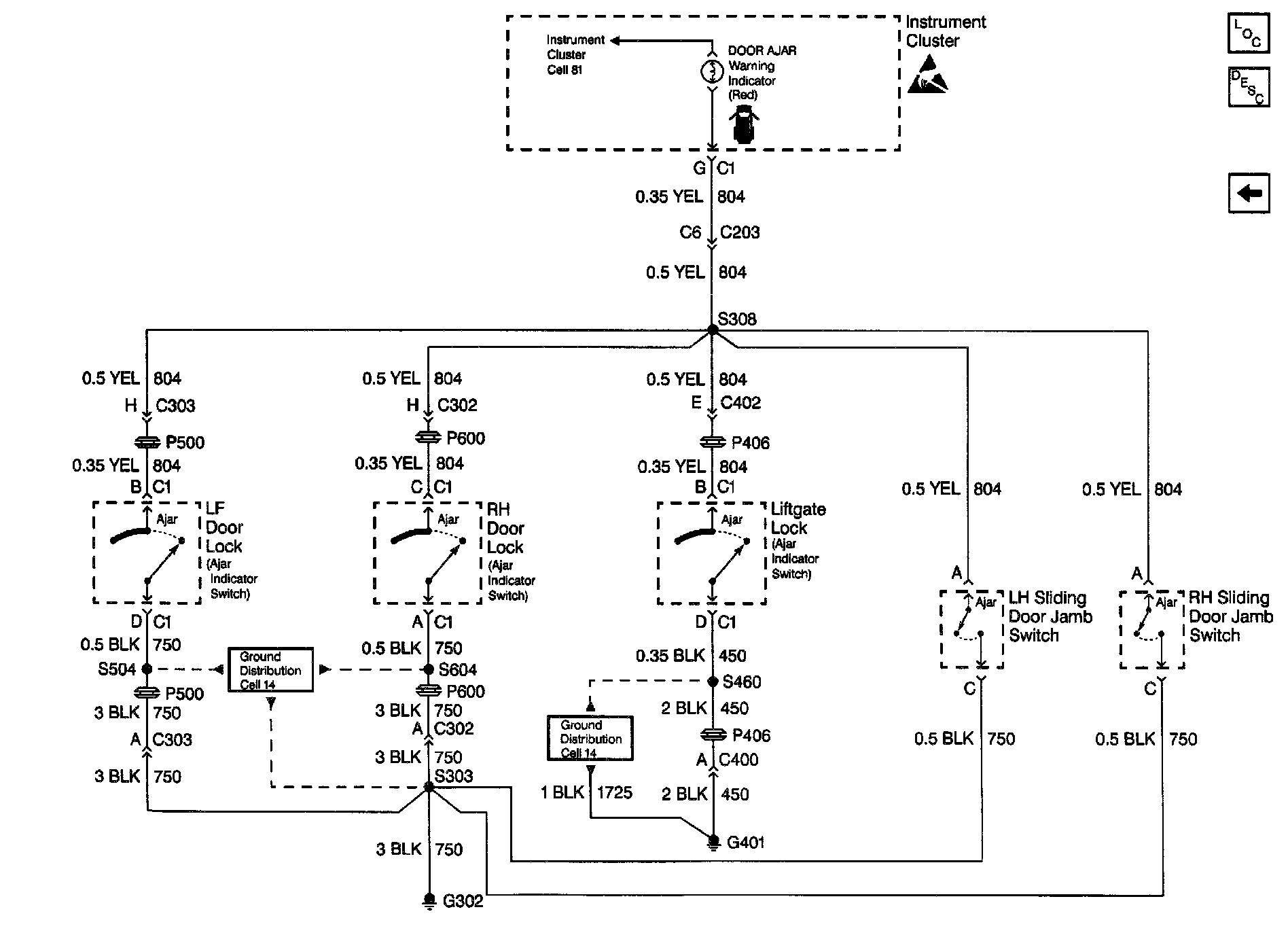

Sliding Door Jamb Switch, Liftgate Lock, Door Lock

Instrument Cluster Analog Schematics: Sliding Door Jamb Switch, Liftgate Lock, Door Lock:
