Headlamp And IP Lamp Dimmer Switch)

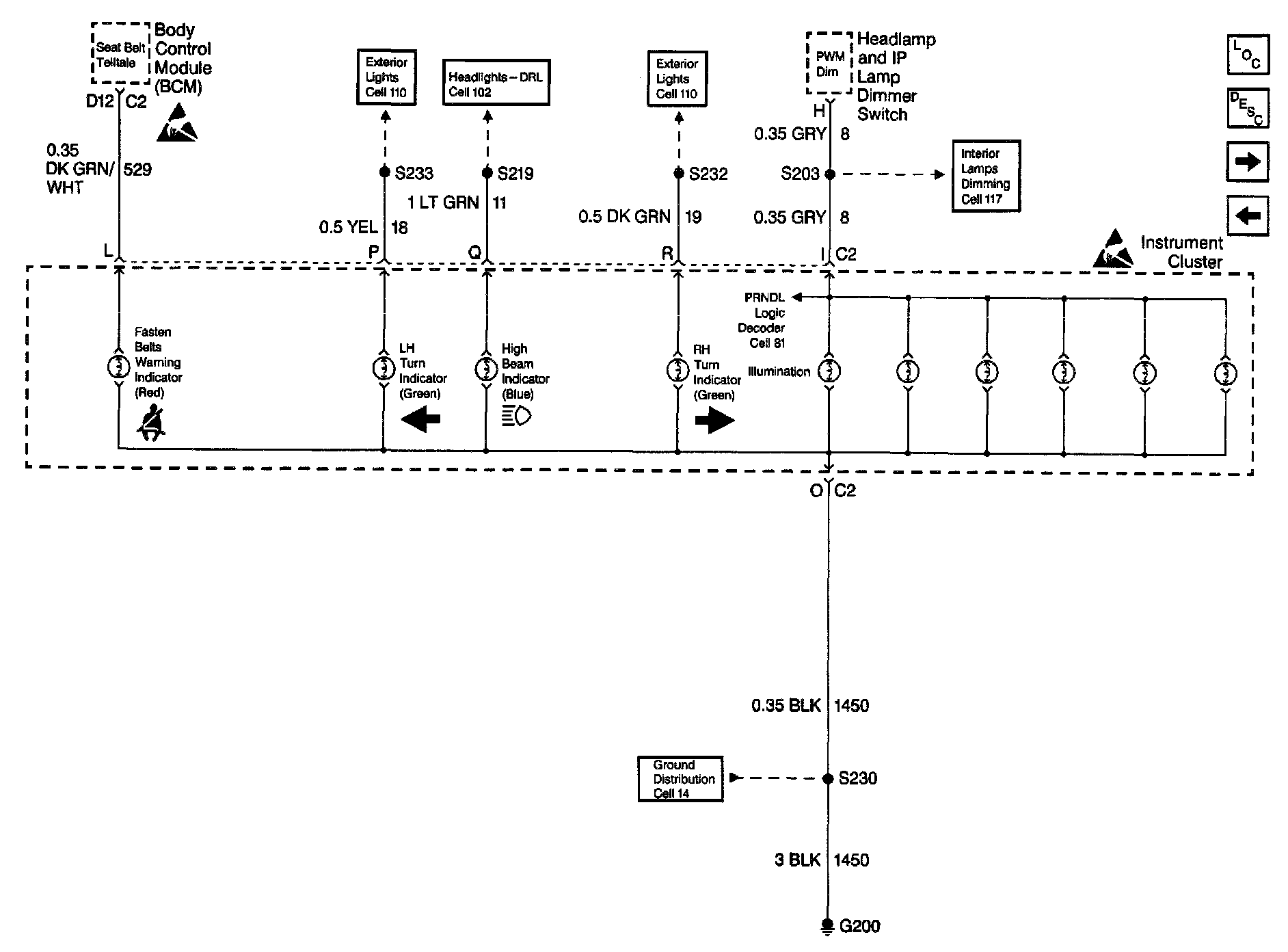

Instrument Cluster Analog Schematics: Headlamp And IP Lamp Dimmer Switch):
