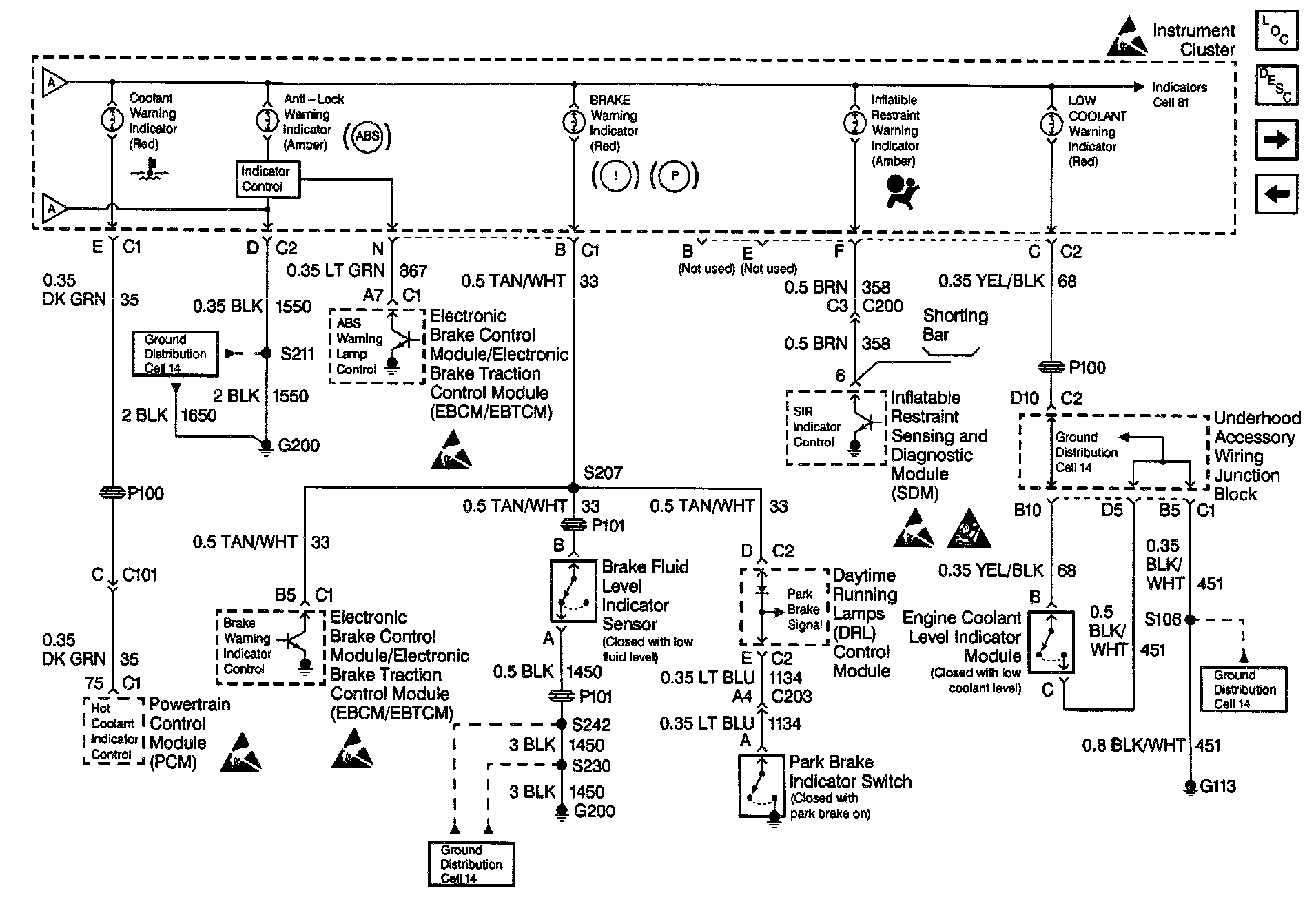

ABS, SRS, Brake and Coolant Warning Lamps

Instrument Cluster Analog Schematics: Inflatable Restraint Sensing And SDM:
