Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Audible Warning Schematics >> Turn Signal Switch, Seat Belt Switch

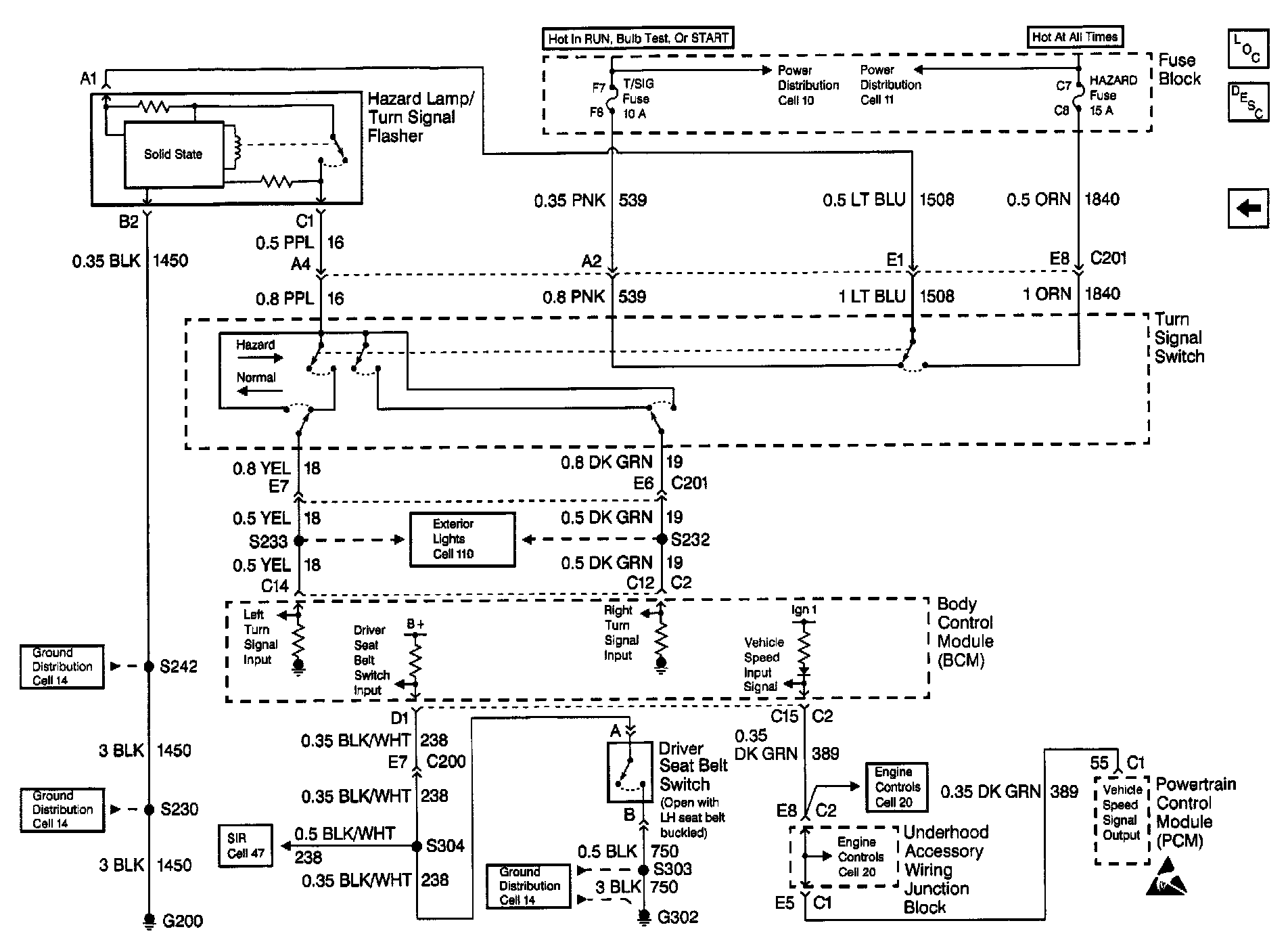

Turn Signal Switch, Seat Belt Switch

Audible Warnings Schematics: Turn Signal Switch, Seat Belt Switch:
