Instrument Cluster, LF Door Lock, Ignition Key Alarm Switch
Instrument Cluster, LF Door Lock, Ignition Key Alarm Switch

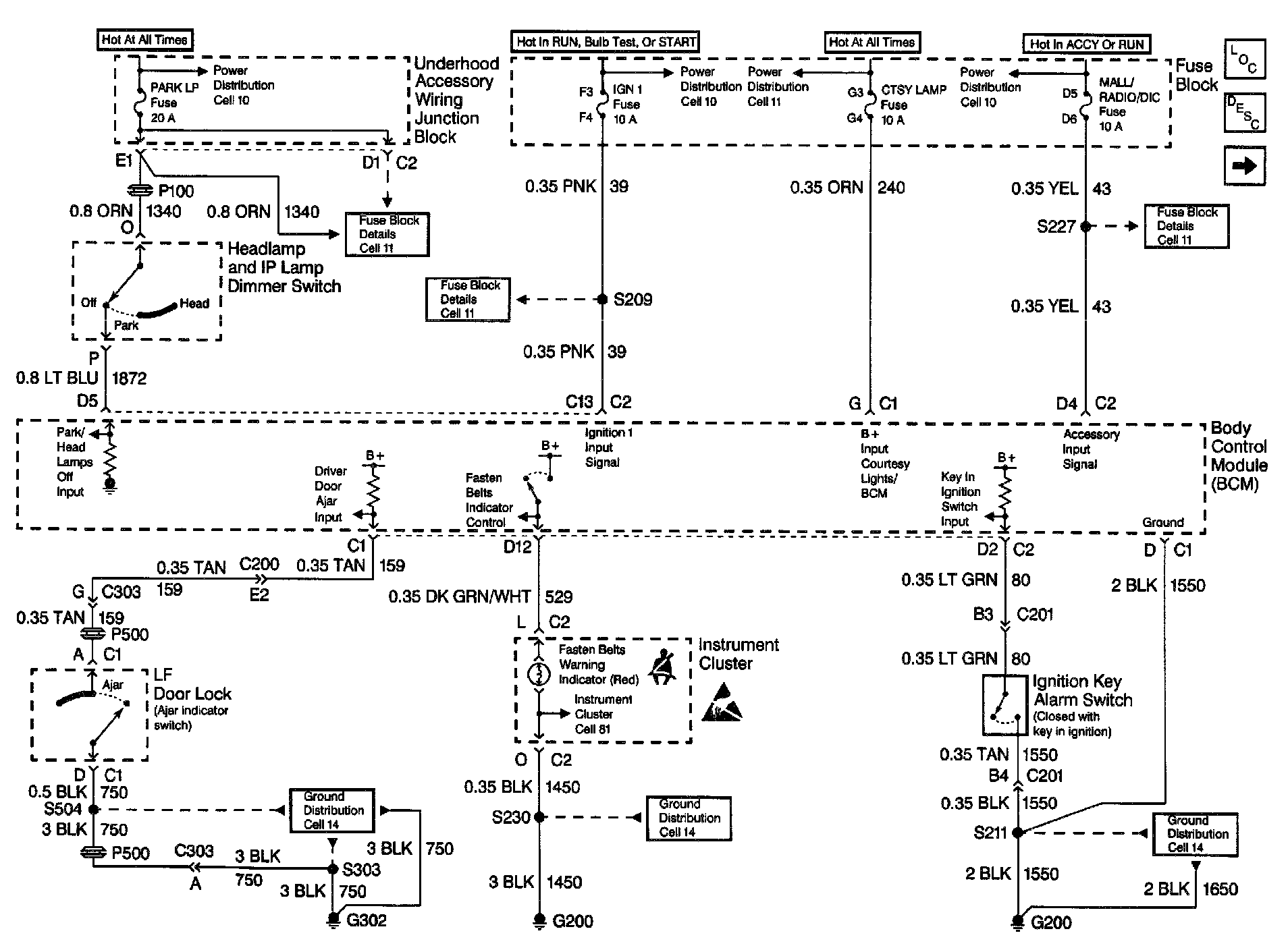

Audible Warnings Schematics: Instrument Cluster, LF Door Lock, Ignition Key Alarm Switch:
