Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Diagrams >> Electrical Diagrams

Electrical Diagrams

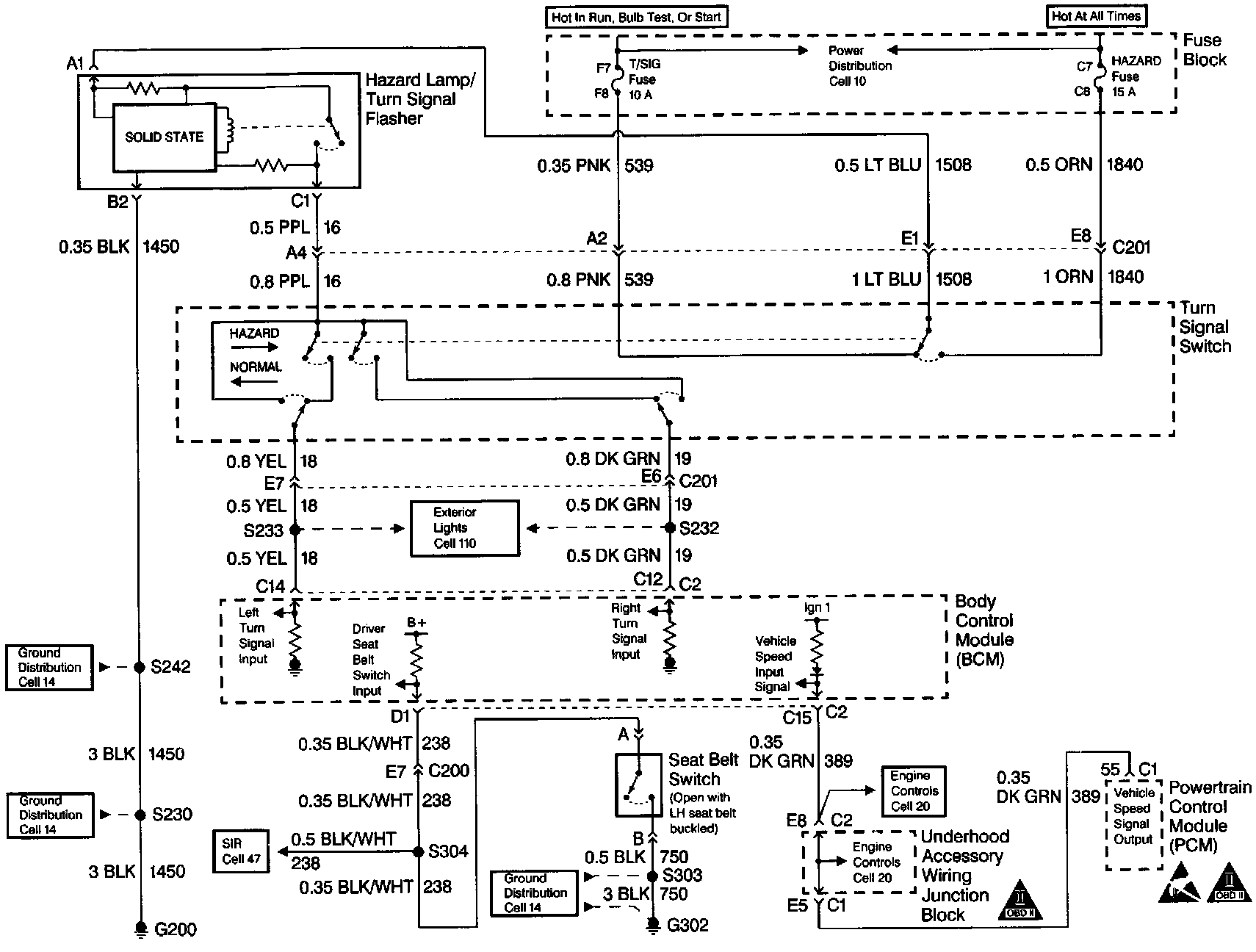

Audible Warnings (Part 1 Of 2):

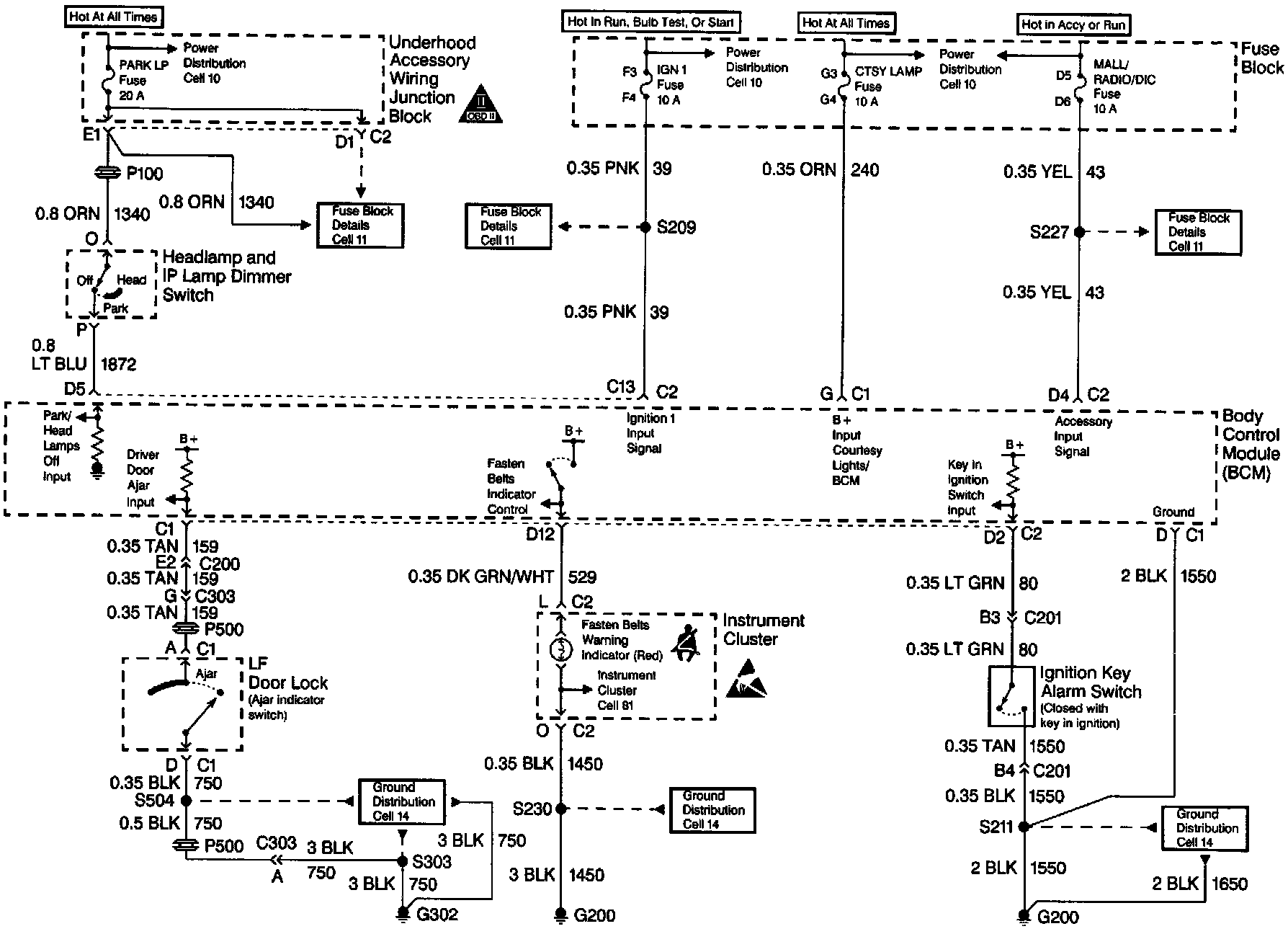

Audible Warnings (Part 2 Of 2):
