Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Tables >> Blower Controls >> Table 4: Speed 5 (HI) Inoperative, Speeds 1 THRU 4 OK

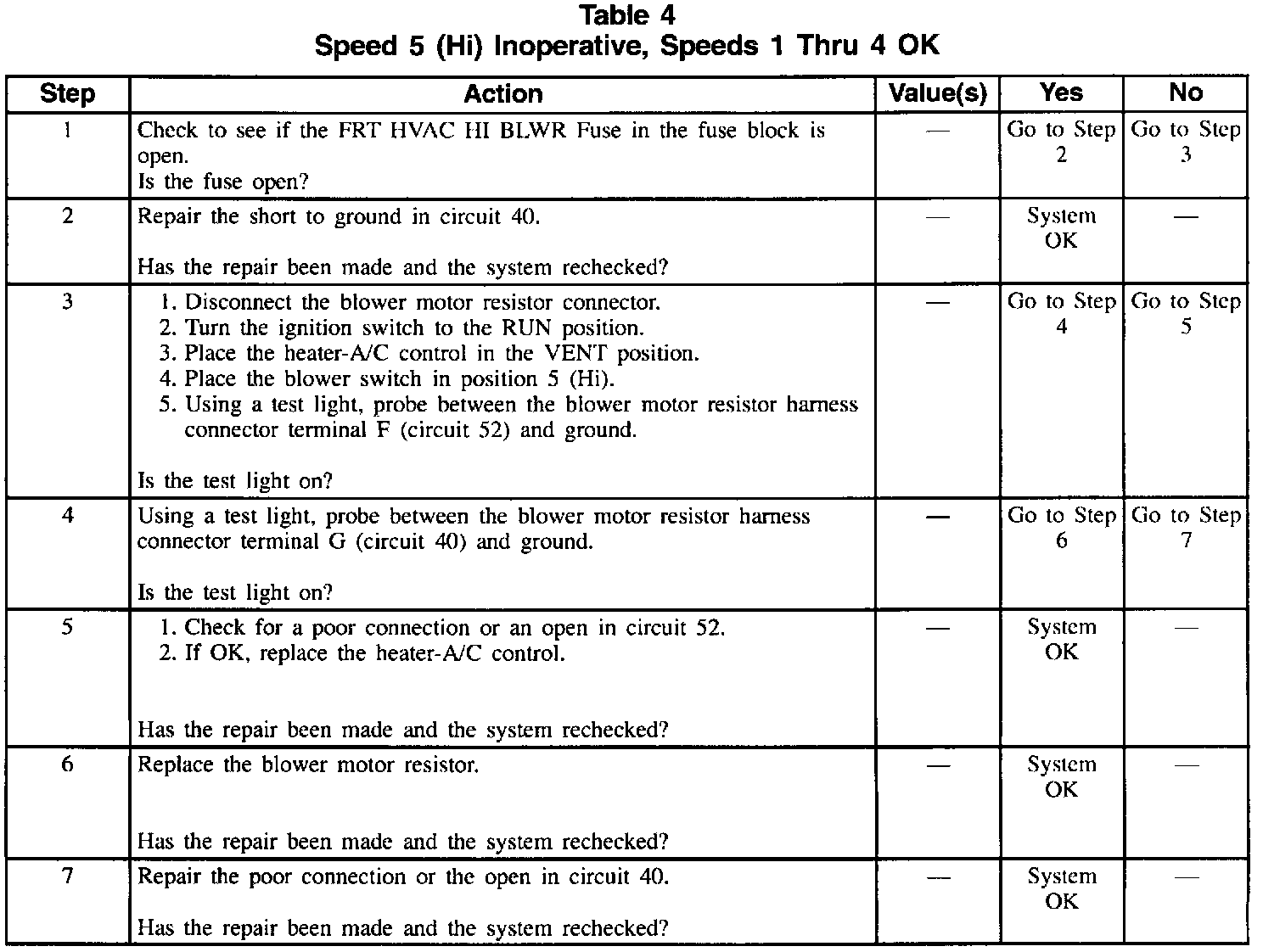

Table 4: Speed 5 (HI) Inoperative, Speeds 1 THRU 4 OK

Table4: Speed 5 (HI) Inoperative, Speeds 1 Thru 4 OK:
