Table 3: Speeds 2,3, or 4 (MED) Inoperative, Speed 1 & 5 OK

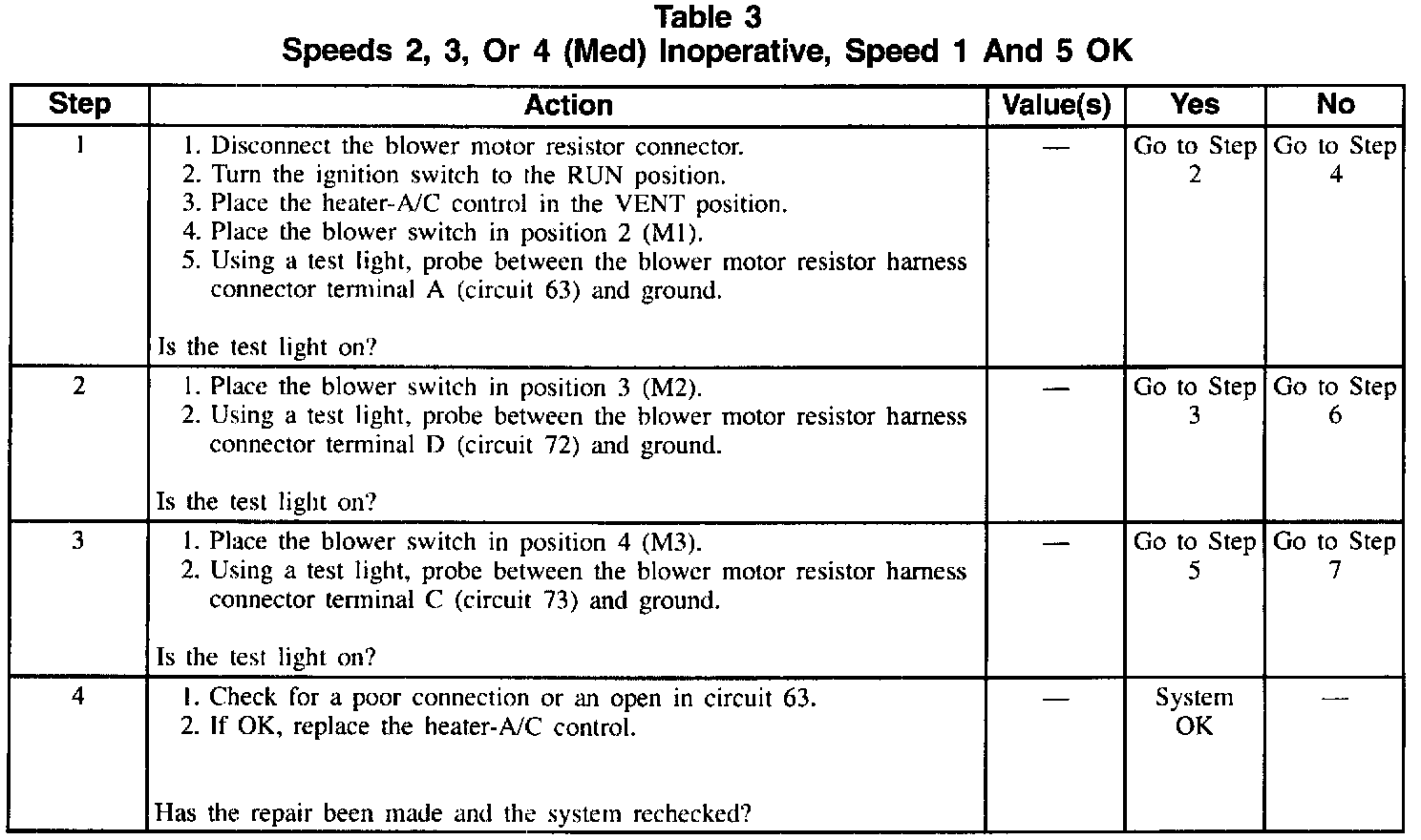

Table3: Speeds 2,3, Or 4 (Med) Inoperative, Speed 1 And 5 OK (Part 1 Of 2):



Table3: Speeds 2,3, Or 4 (Med) Inoperative, Speed 1 And 5 OK (Part 2 Of 2):
