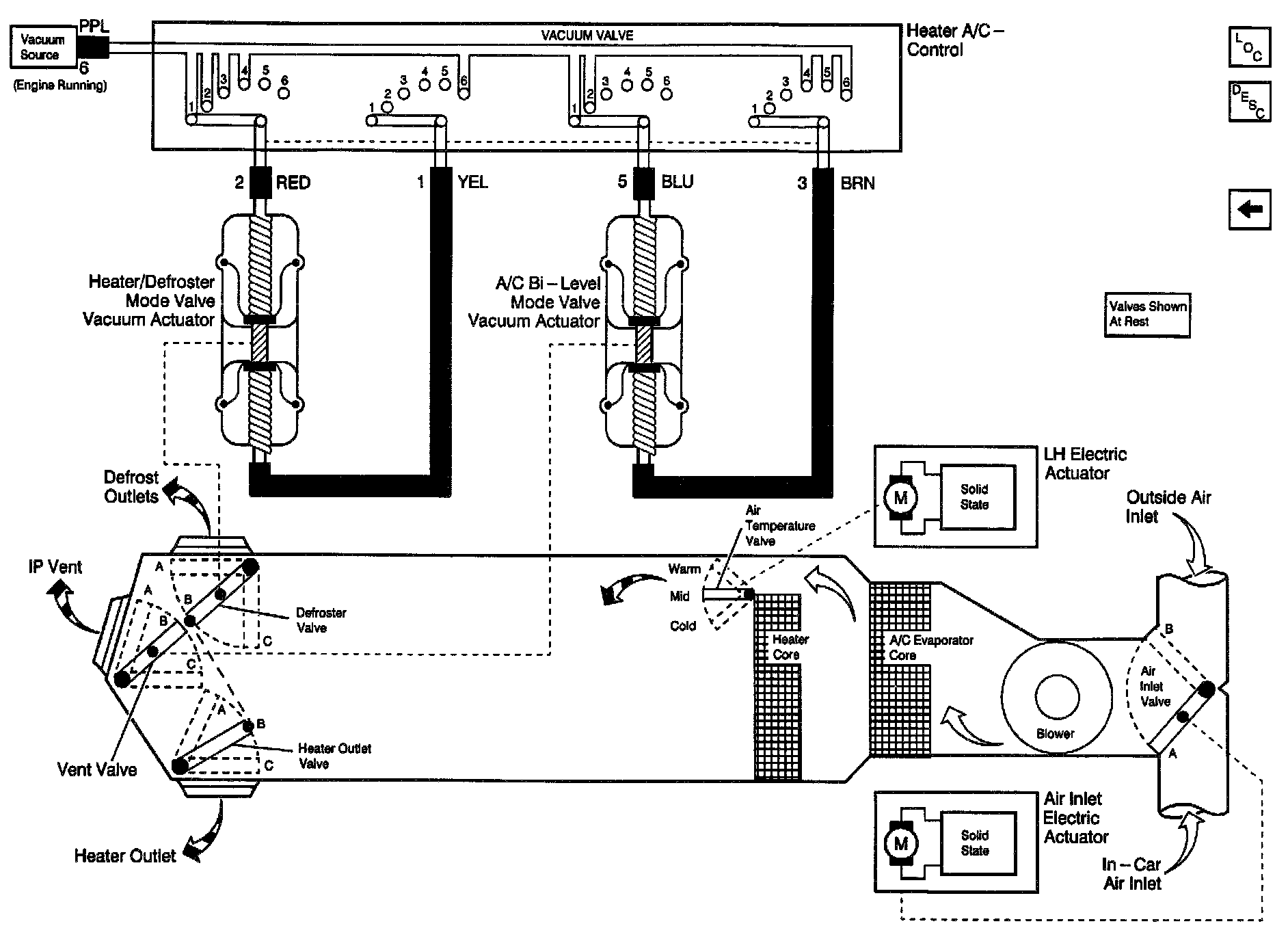

Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Wiring Diagram >> Air Delivery >> C60/C34 Vacuum Harness Schematic
