Drive Belt Tensioner: Service and Repair

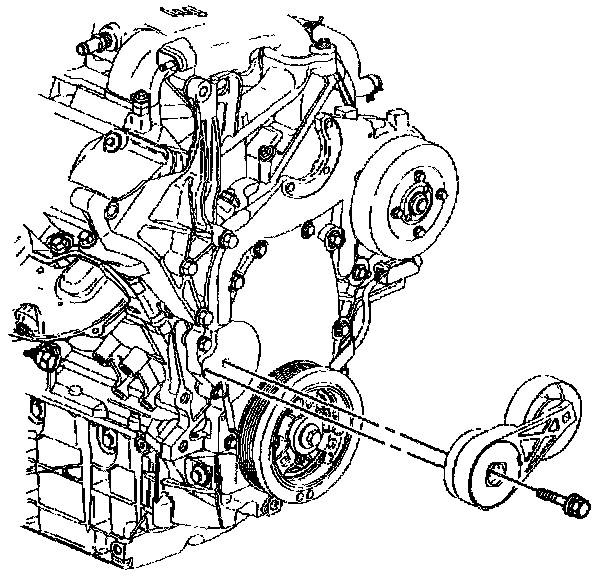

REMOVAL PROCEDURE





1. Remove the drive belt.
2. Remove the drive belt tensioner bolt.
3. Remove the drive belt tensioner.

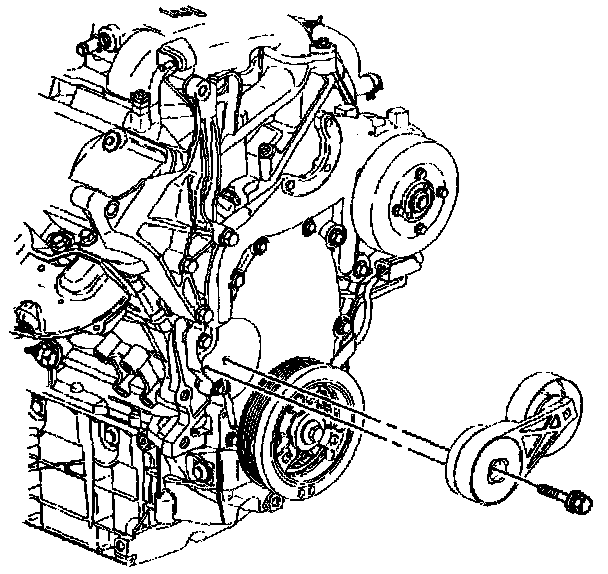

INSTALLATION PROCEDURE





1. Install the drive belt tensioner.
2. Install the drive belt tensioner bolt.
^ Tighten the drive belt tensioner bolt to 50 N.m (37 ft. lb.).

3. Install the drive belt.
