Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Sensors and Switches - Cooling System >> Engine - Coolant Temperature Sensor/Switch >> Temperature Sensor (Gauge) >> Diagrams >> Electrical Diagrams

Electrical Diagrams

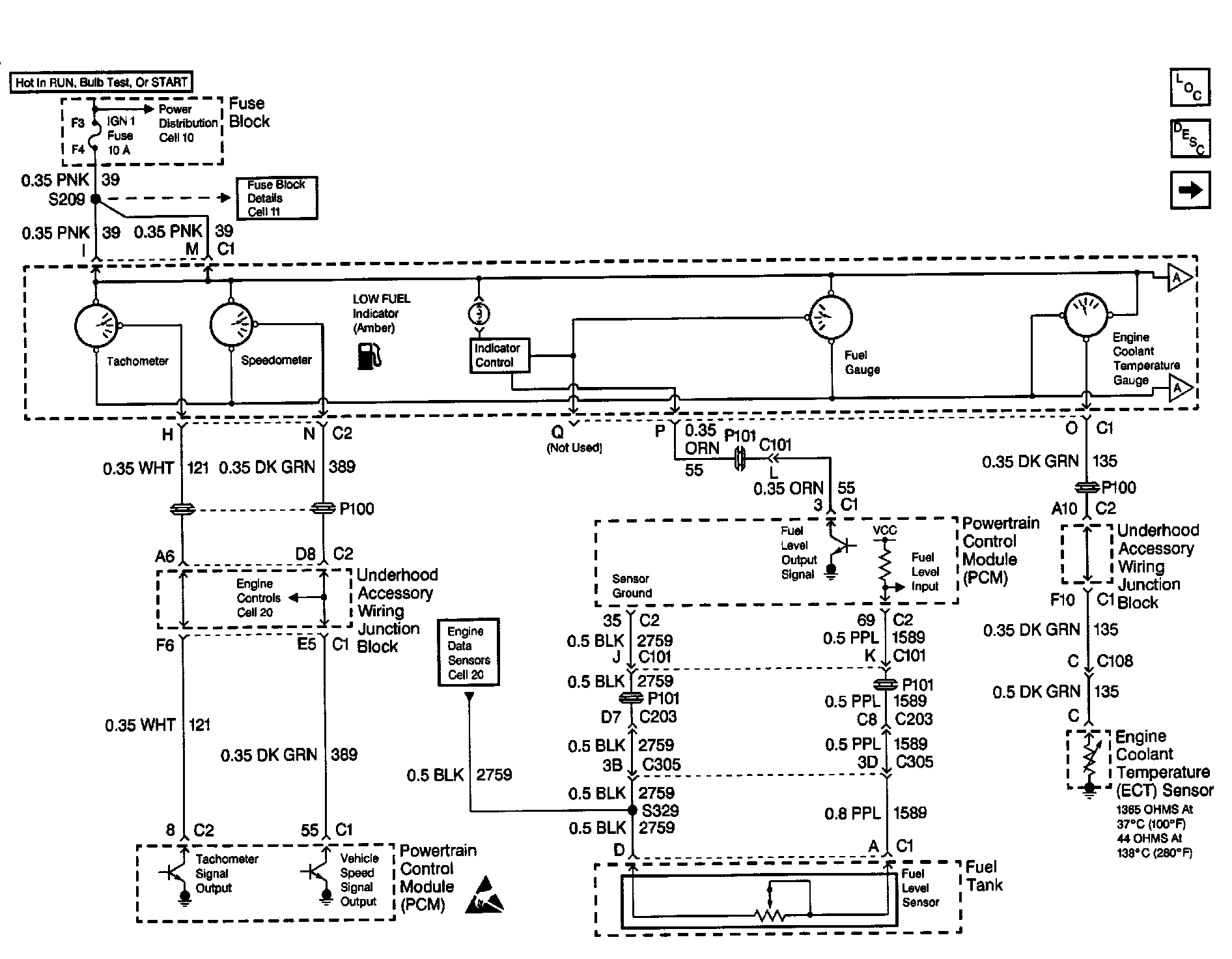

Instrument Cluster Analog Schematics: Fuel Gauge, Engine Coolant Temperature Gauge:
