Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Table 4 Sunroof Is Stuck Between the Vent and Closed Position

Table 4 Sunroof Is Stuck Between the Vent and Closed Position

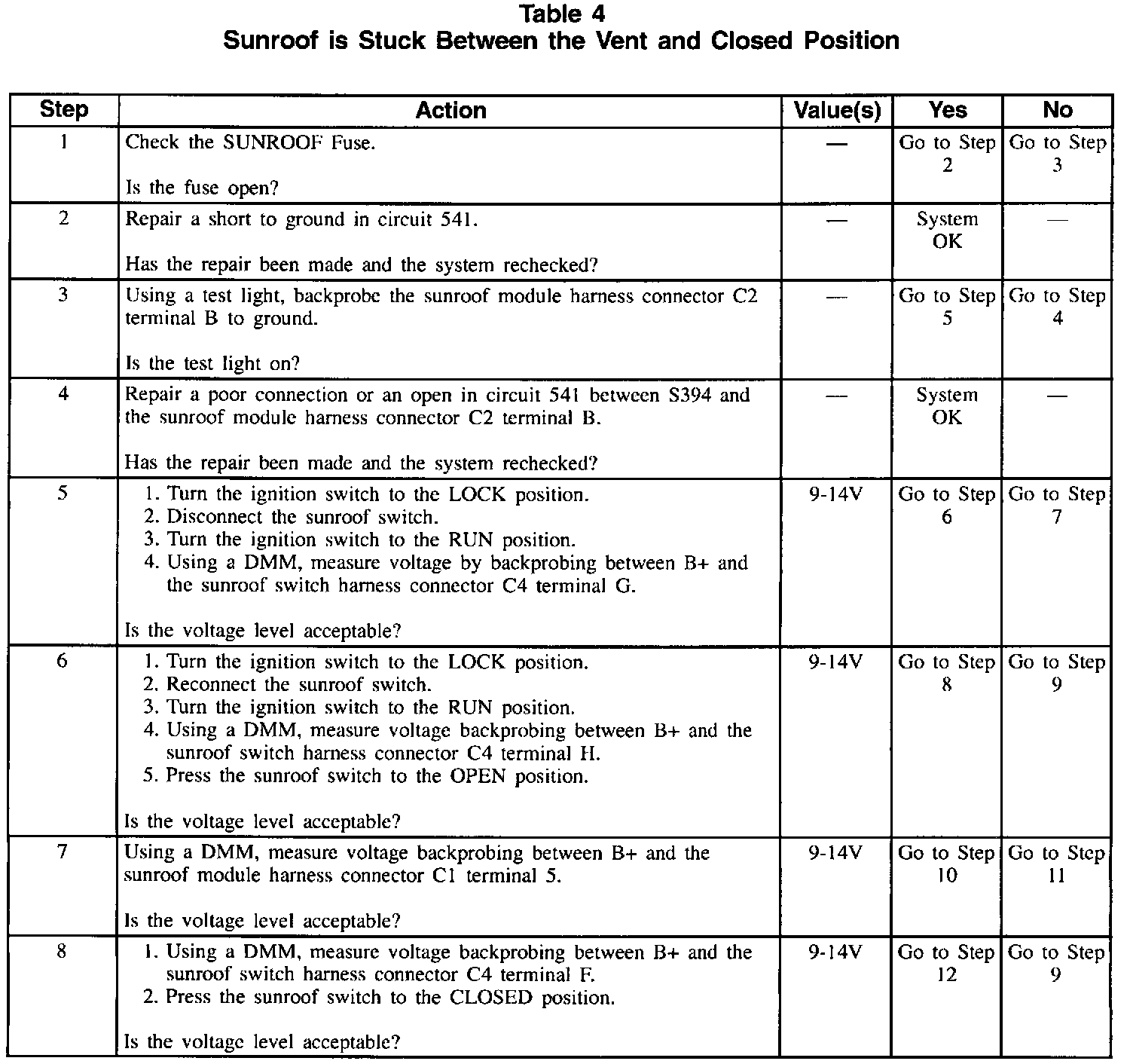

Table4: Sunroof Is Stuck Between The Vent And Closed Position (Part 1 Of 5):

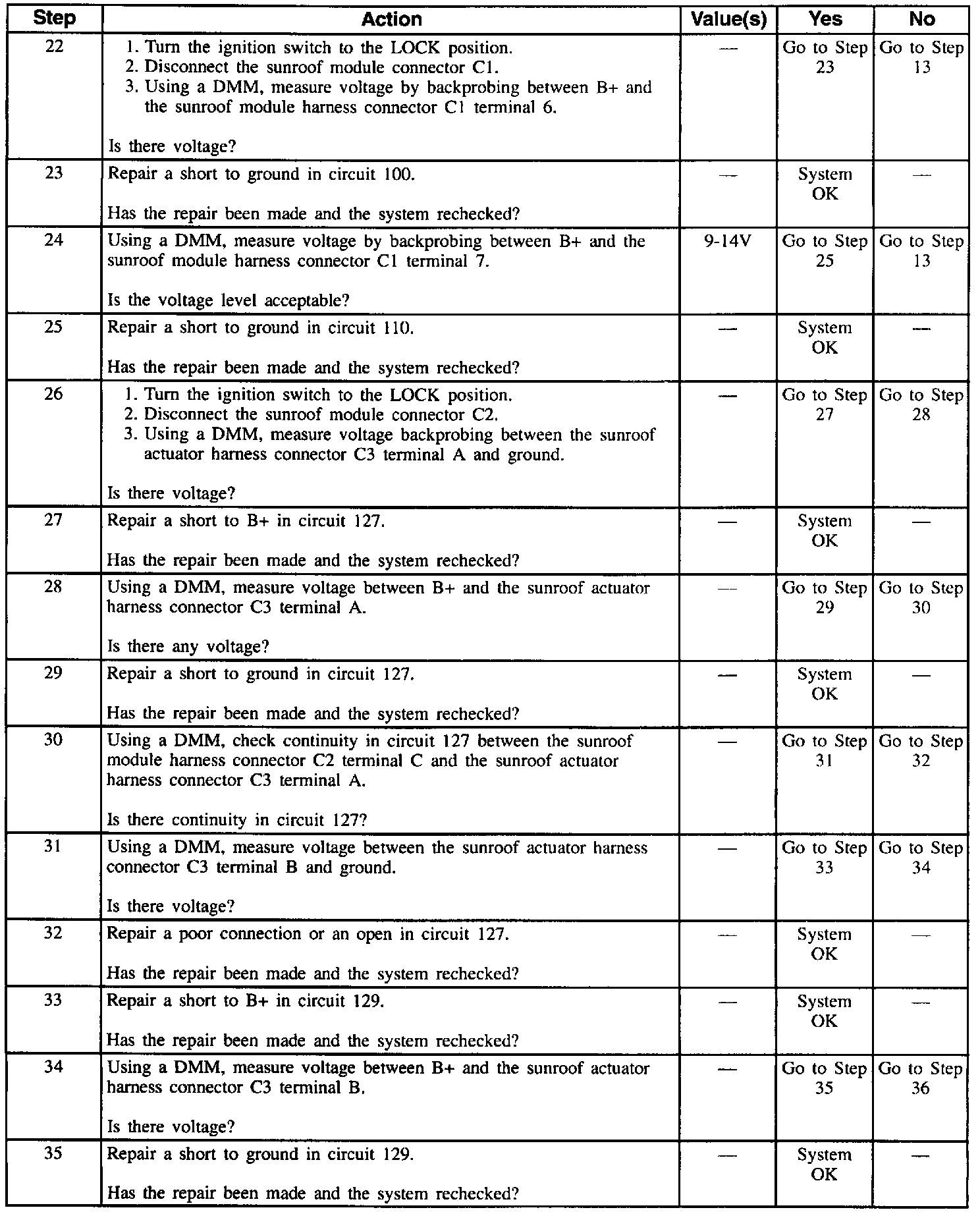

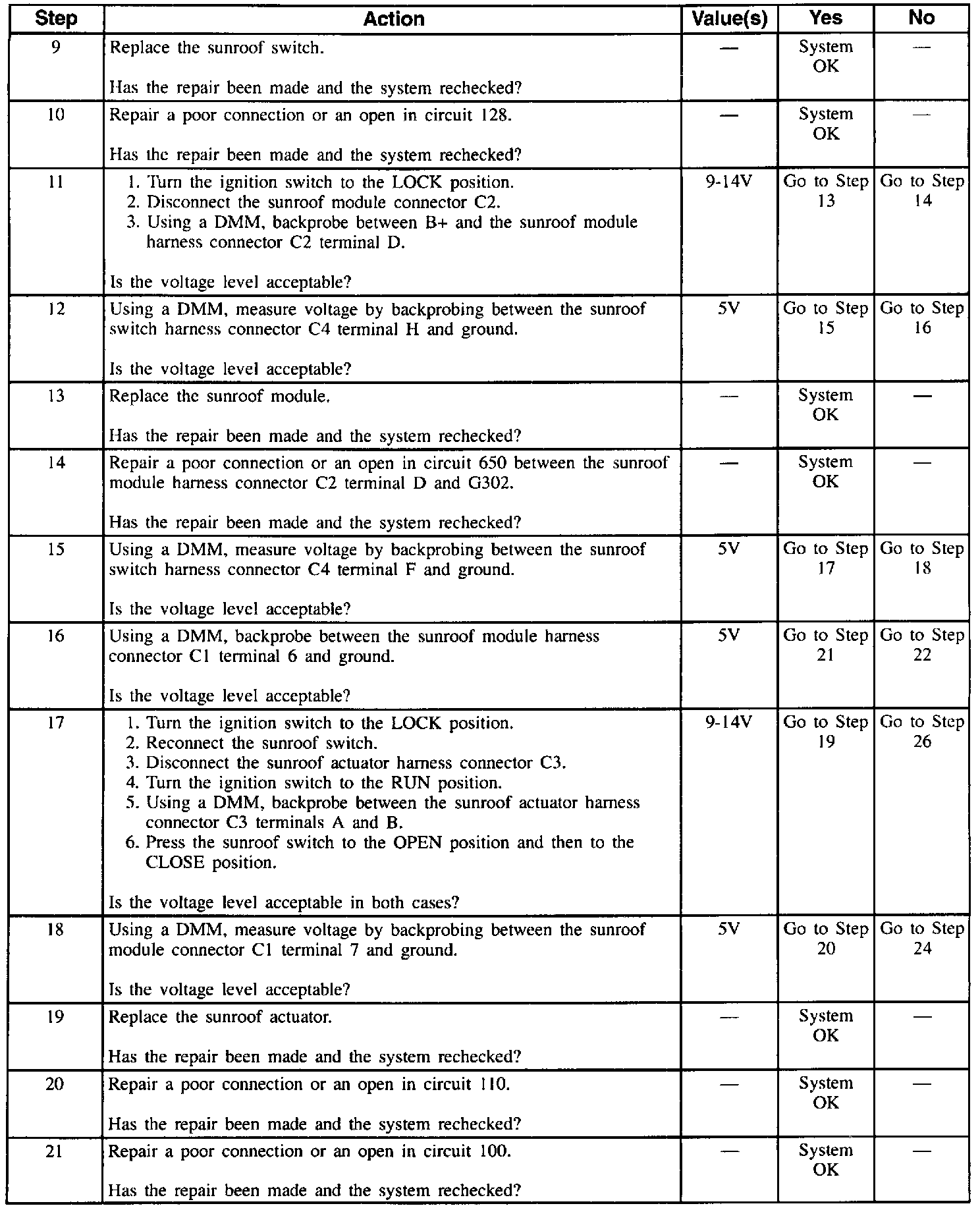

Table4: Sunroof Is Stuck Between The Vent And Closed Position (Part 2 Of 5):




Table4: Sunroof Is Stuck Between The Vent And Closed Position (Part 3 Of 5):

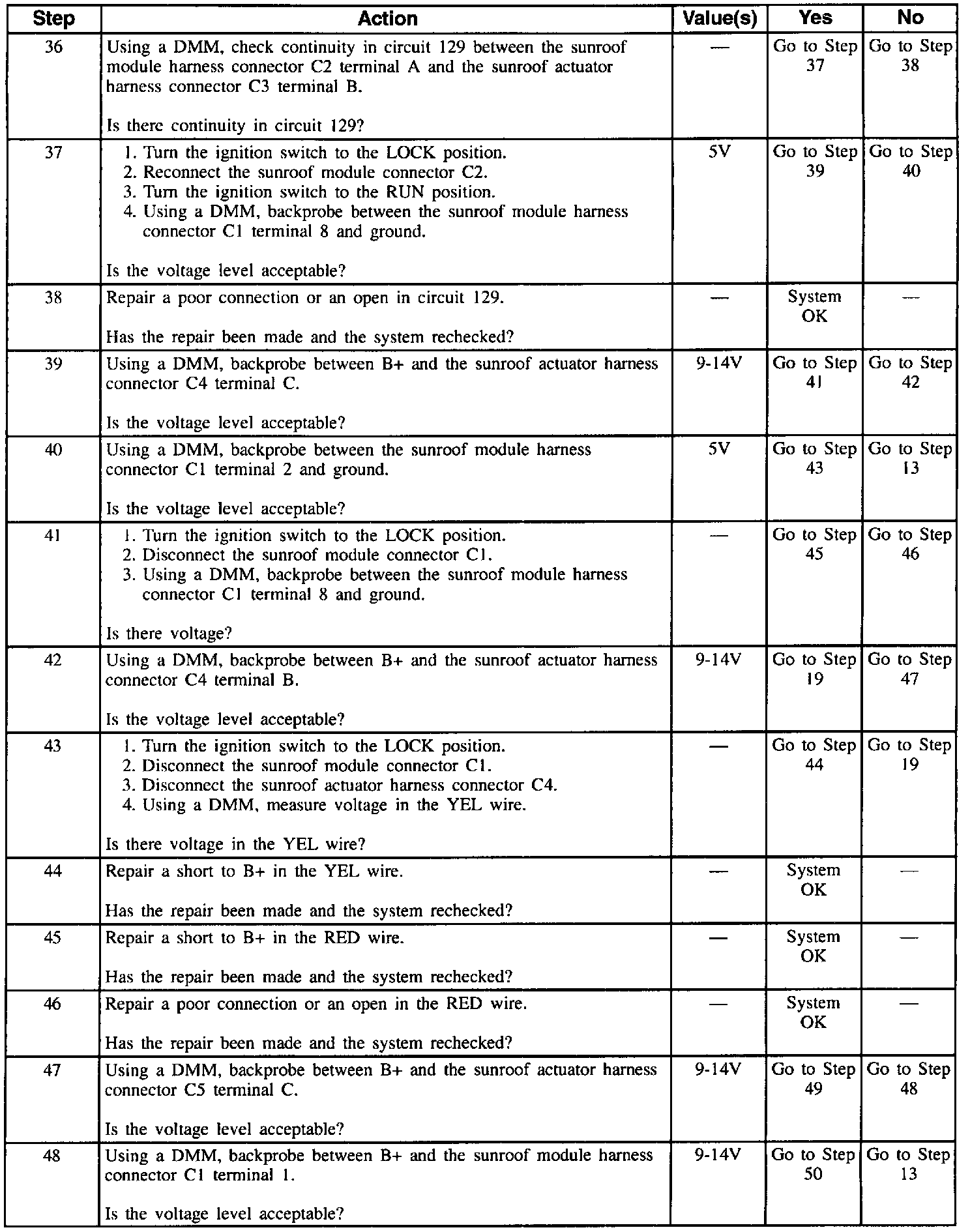

Table4: Sunroof Is Stuck Between The Vent And Closed Position (Part 4 Of 5):




Table4: Sunroof Is Stuck Between The Vent And Closed Position (Part 5 Of 5):
