Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Radio/Stereo >> Locations >> Component Locations >> Rear Seat Audio (RSA) Control

Rear Seat Audio (RSA) Control

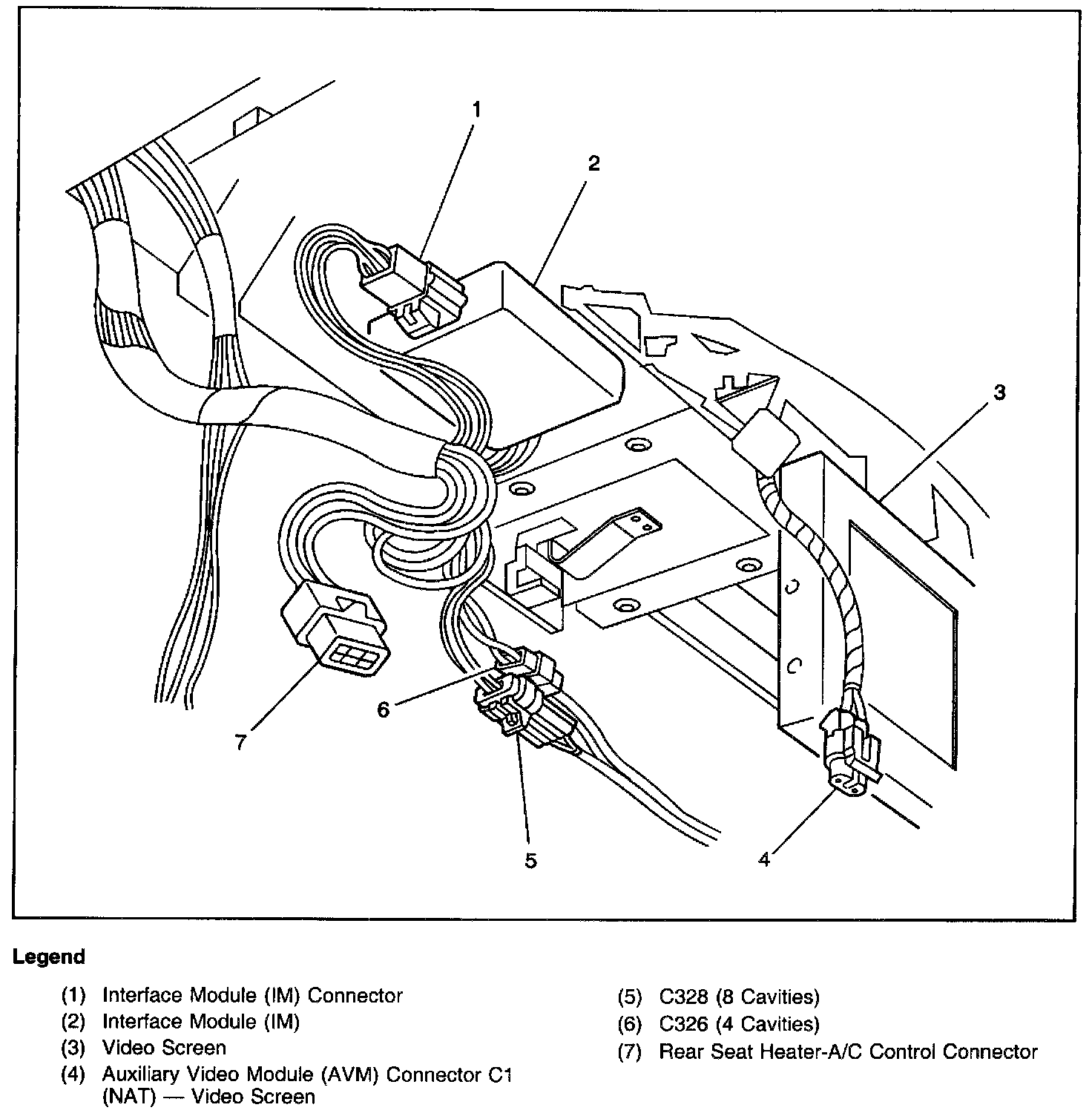

Roof Rear Overhead Console: U42:

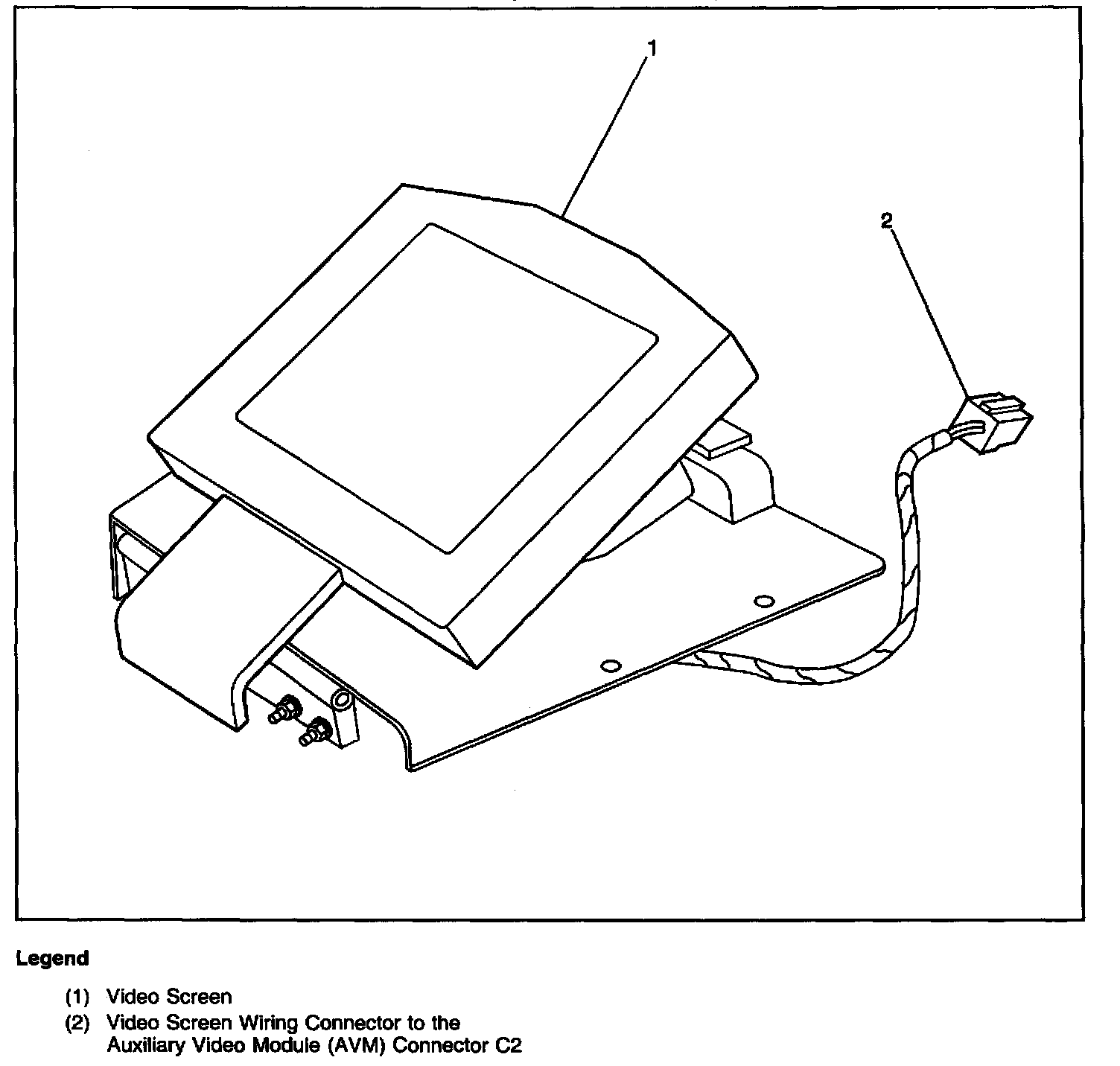

Video Screen - Liquid Crystal Display: LCD:



Interface Module:
