Connector Views

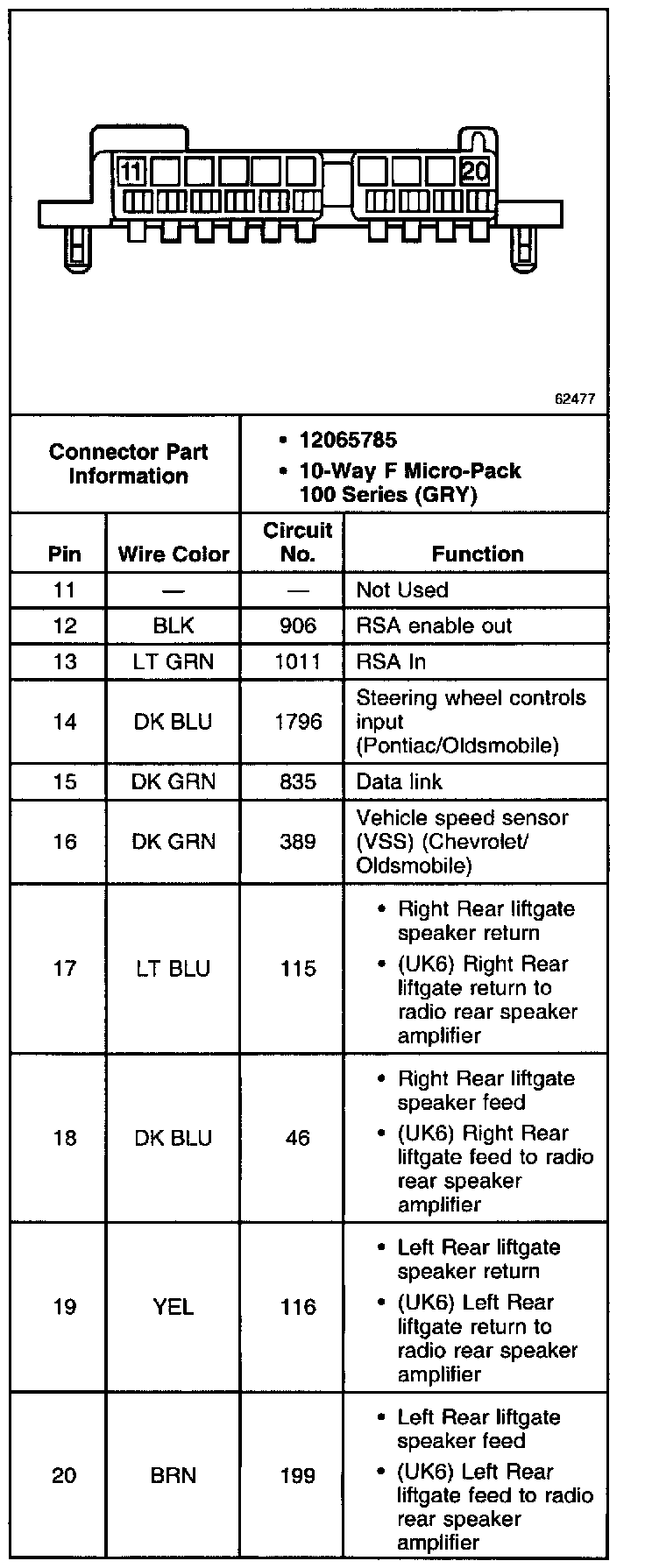

Radio Rear Seat Audio Control:



Second Seat Audio (SSA) Control:



Third Seat Audio (TSA) Control:



Radio C1:



Radio C2:



Radio C3:
