Home >> Chevrolet >> 1998 >> Venture V6-3.4L VIN E >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Locations >> Component Locations >> Radio Rear Seat Audio Control >> 4 Door

4 Door

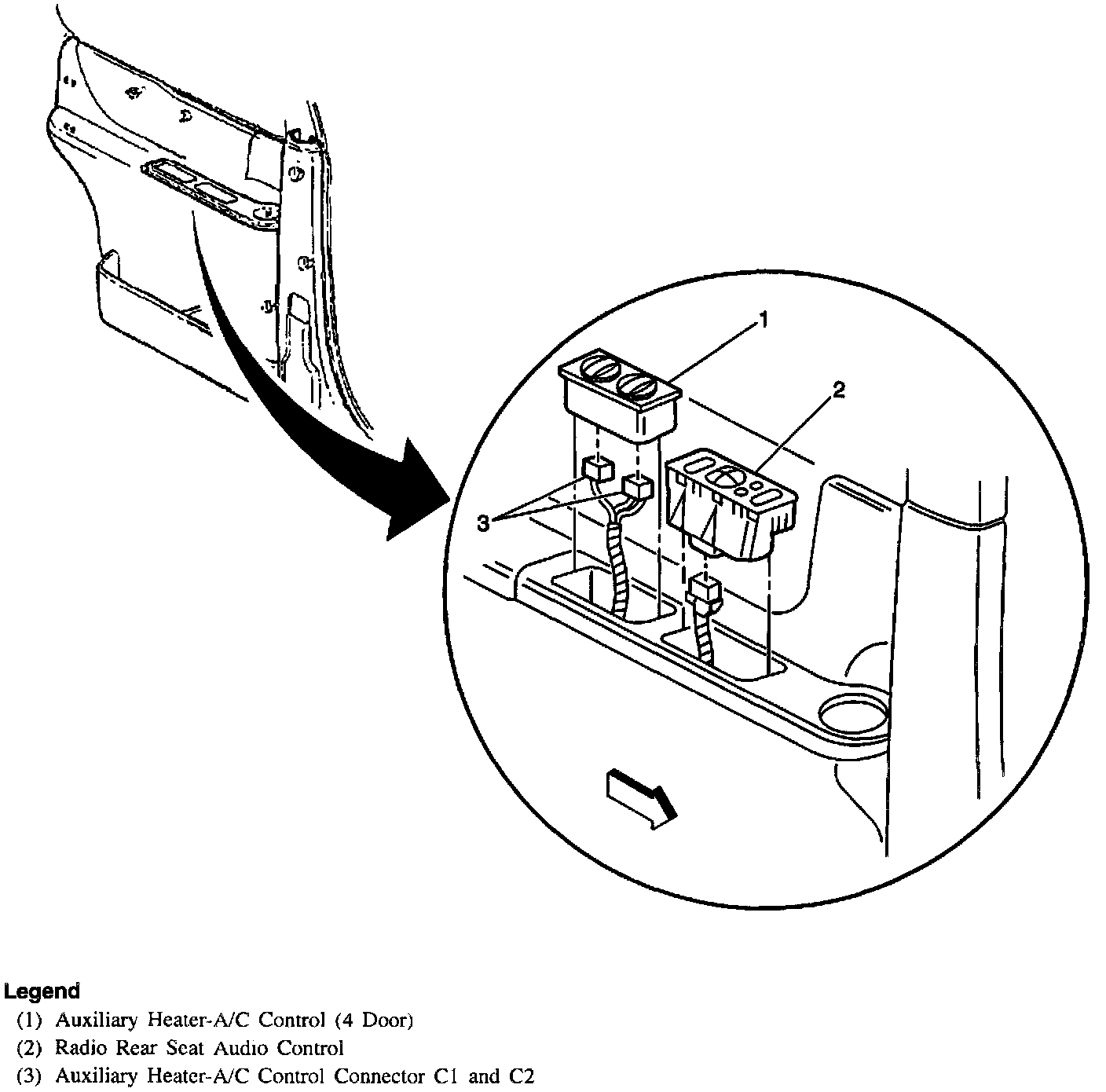

LH, Rear Armrest, Auxiliary Heater-A/C Control (4 Door):

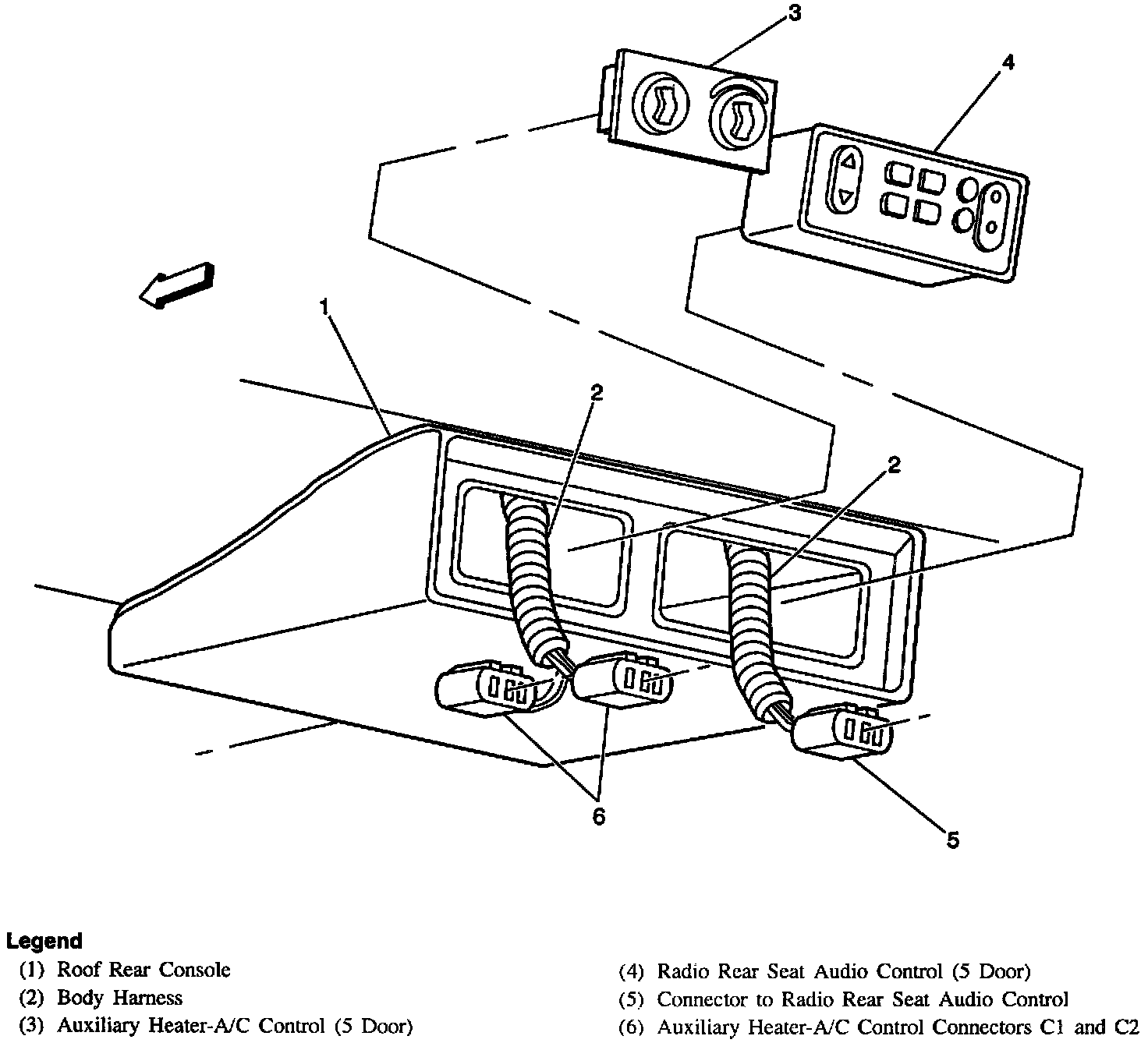

Roof Rear Console, Roof Headliner Behind Driver's Seat (5-Door):
