Radio Audio Channel Outputs

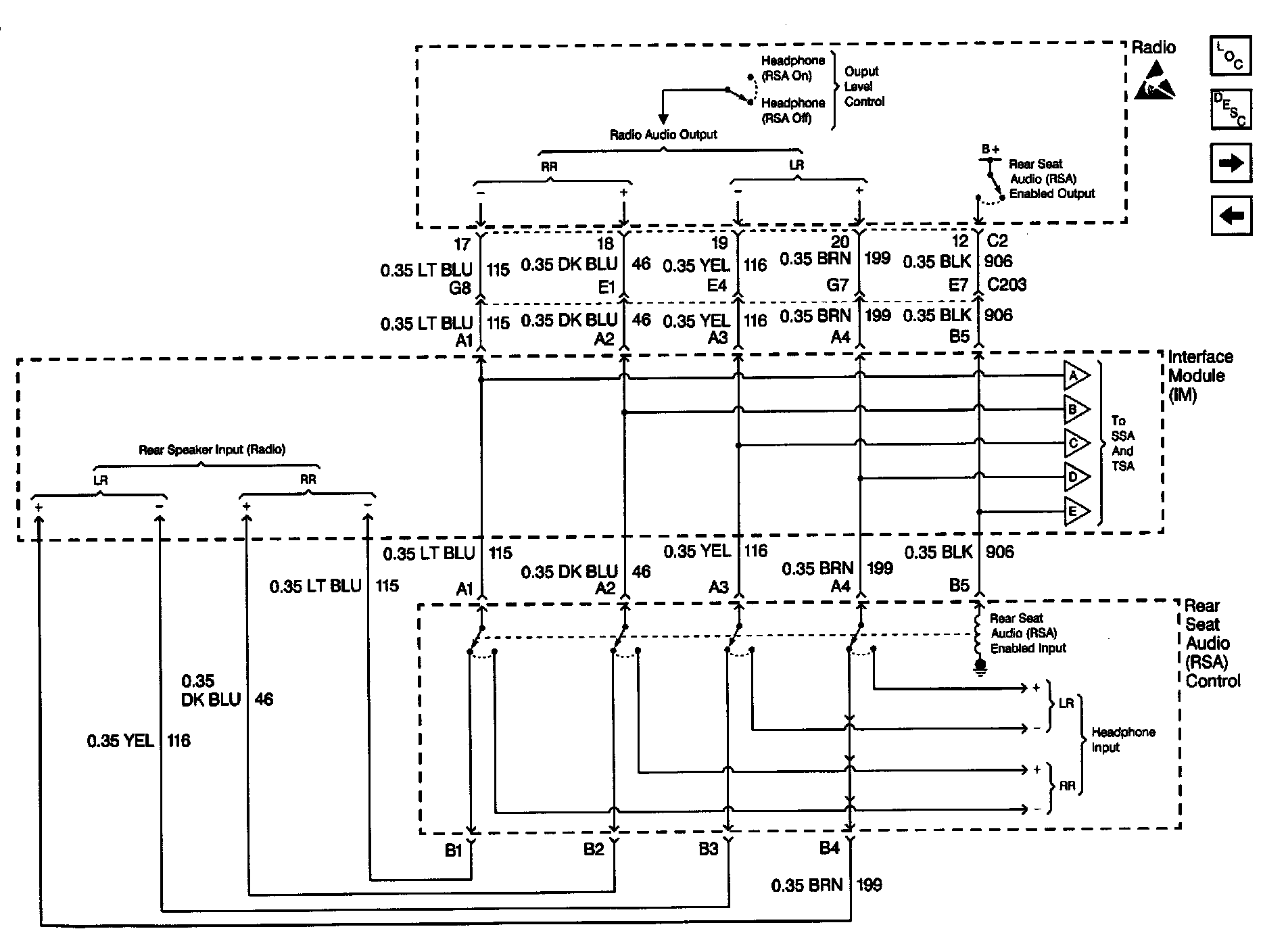

Video System Schematics: Radio Audio Channel Outputs:

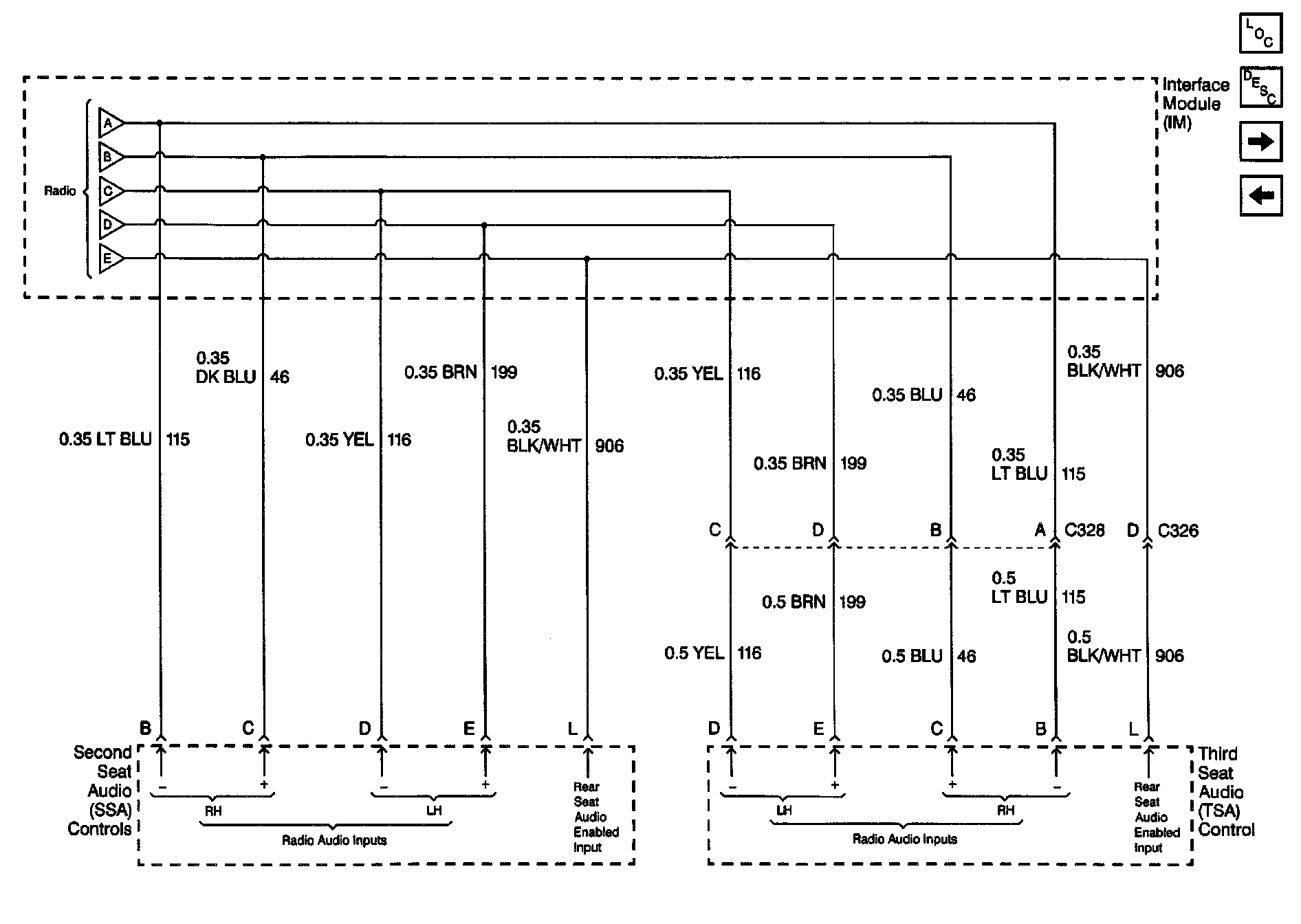

Video System Schematics: Radio Audio Channel Outputs:



Video System Schematics: Radio Audio Channel Outputs:
