Right and Left Liftgate Speaker (Base))

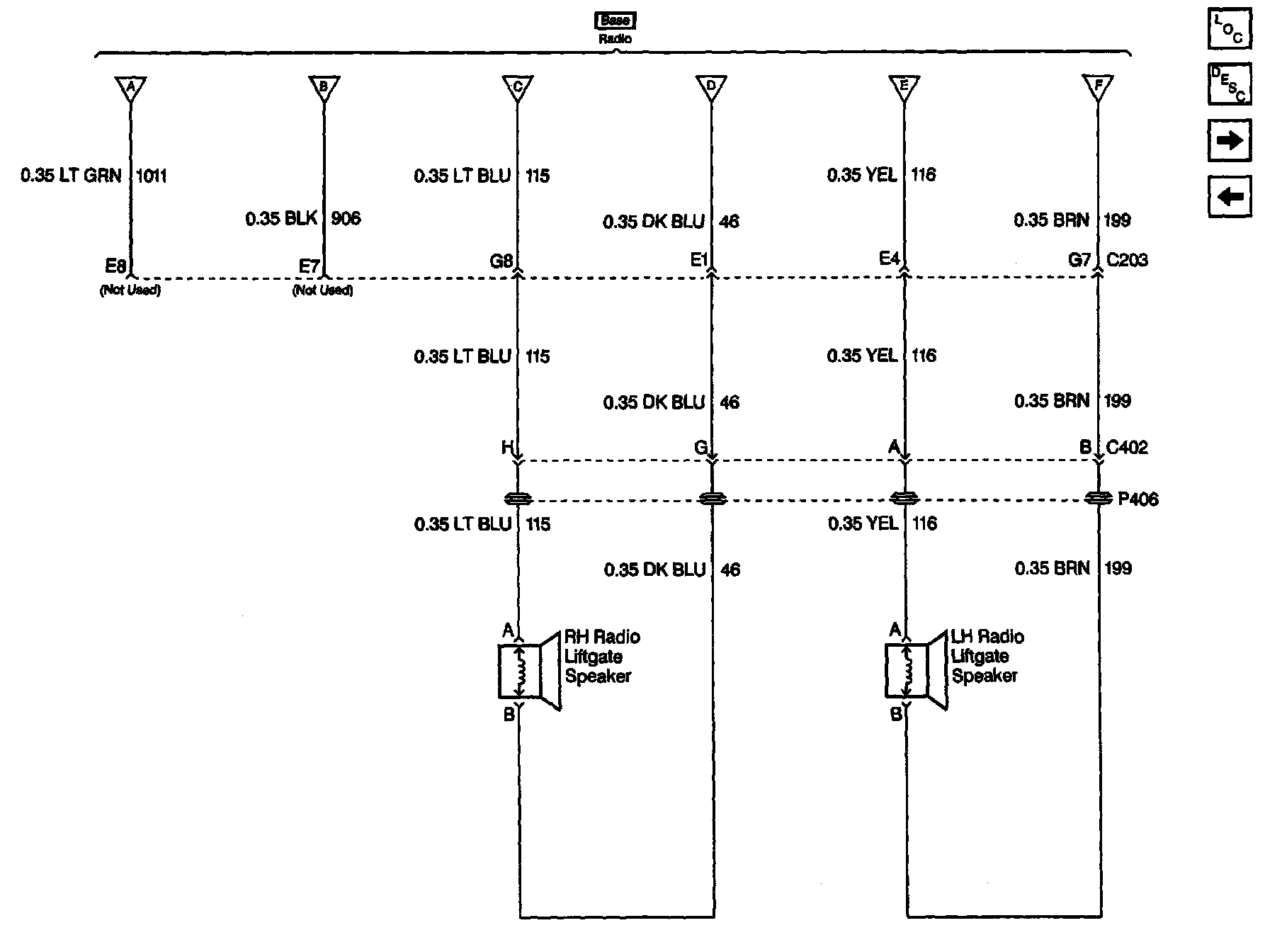

Radio/Audio System Schematics: Right And Left Liftgate Speaker (Base)):
