ECT Gauge Resistance Test
- Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Disconnect instrument cluster harness connectors. Go to next step.

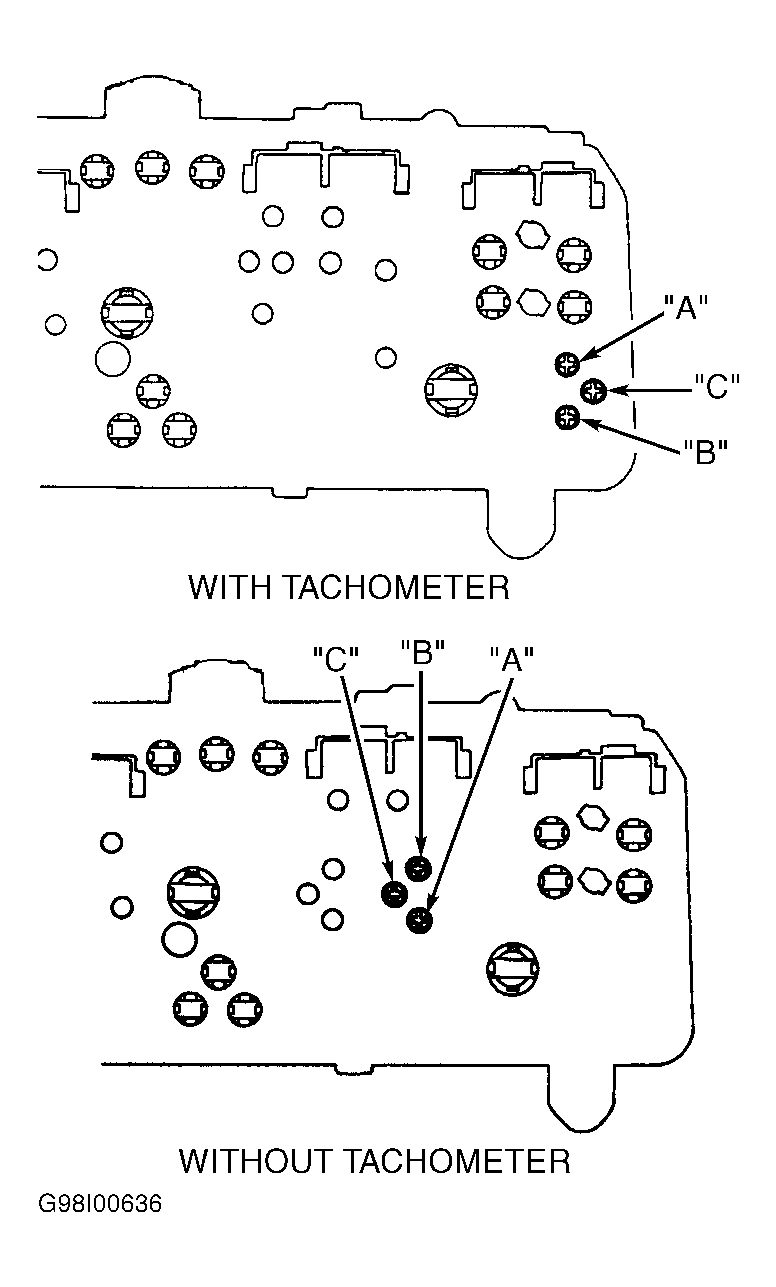

- Using an ohmmeter, check ECT gauge resistance across appropriate terminals. See ECT GAUGE RESISTANCE SPECIFICATIONS table. See Fig 1 . If resistance is not as specified, replace ECT gauge. If resistance is as specified, ECT gauge is operating properly at this time.
ECT GAUGE RESISTANCE SPECIFICATIONS
| Application & Terminals | Ohms |
|---|---|
| "A" & "B" | 54 |
| "A" & "C" | 176 |
| "B" & "C" | 230 |
