Buzzers, Relays & Timers
WARNING: This page is about a different car, the 1998 Oldsmobile Intrigue, 1998 Buick Regal, and 1998 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
BUZZERS, RELAYS & TIMERS
| Component | Component Location |
|---|---|
| A/C CLU Relay | In underhood electrical center. |
| Air Pump Relay | In underhood electrical center. |

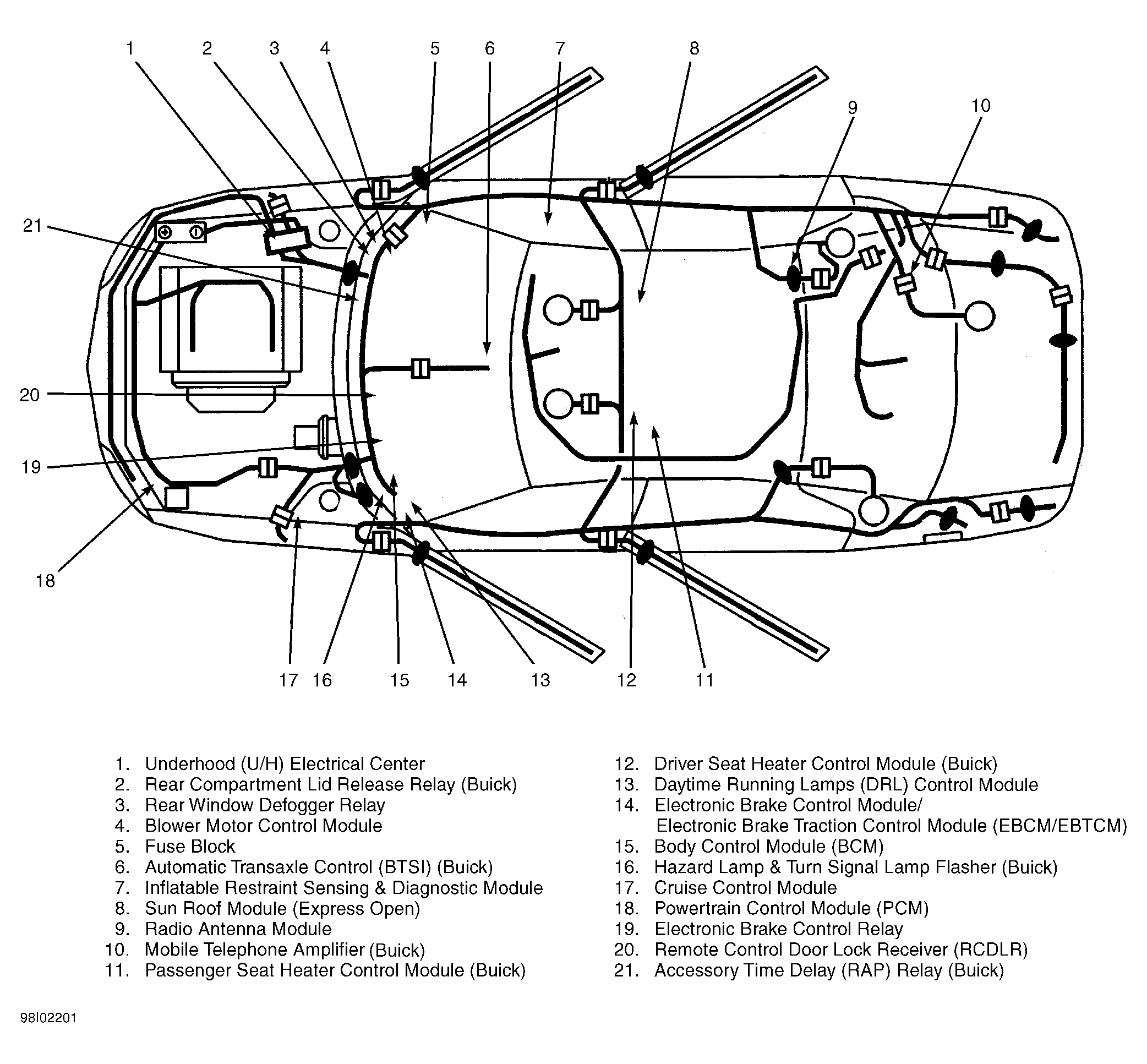

| Accessory Time Delay (RAP) Relay (Buick) | Behind right side of dash, mounted to underside of cross car beam. See Figure . |
| Blower Motor Relay (Buick) | Integral with blower motor resistor. |
| Cooling Fan Motor Relays (1, 2, 3) | In underhood electrical center. |
| Crank Relay | In underhood electrical center. |
| Door Lock Relay | Behind dash, mounted to cross car beam. |
| Electronic Brake Control Relay | Below left side of dash, mounted to multi-purpose bracket. See Figure . |
| F/PMP Relay | In underhood electrical center. |
| F/PMP SPD CONT Relay | In underhood electrical center. |
| Fog Lamp Relay | In underhood electrical center. |
| Fuel Tank Filler Door Lock Relay (Oldsmobile) | Behind dash, attached to cross car beam. |
| Hazard Lamp & Turn Signal Lamp Flasher (Buick) | Below left side of dash, mounted on multi-purpose bracket, near BCM. See Figure . |
| Horn Relay | In underhood electrical center. |
| IGN Main Relay | In underhood electrical center. |
| Rear Compartment Lid Release Relay (Buick) | Behind right side of dash, mounted on underside of cross car beam See Figure . |
| Rear Compartment Lid Release Relay (Oldsmobile) | Part of rear compartment lid lock. |
| Rear Window Defogger Relay | Behind right side of dash, mounted on underside of cross car beam See Figure . |
